Neutrik rearTWIST UHD BNC Cable Connector Suits Belden 1505F Cordial CVI08-37HD Bryant BD SD53F
NBNC75BJP9X

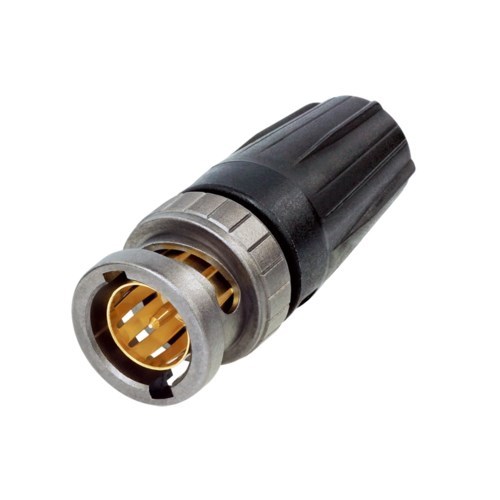

The rearTWIST UHD BNC connectors are specifically designed for high resolution video signal transmissions. Due to the unique insulator and contact pin design, the connectors feature low return loss values for 4K and 8K signals.
Optimized Return Loss
Due to optimized insulator design and reduced crimp diameter from center pin the Neutrik rearTWIST UHD BNC connector achieves increased headroom compared to conventional BNC connectors and offers additional return loss reserve for potential impedance deviations resulting from cable bending, incorrect connector assembly or faulty connection interfaces without signal interruption.
Crimp Dimensions
In order to achieve optimum return loss values at high frequencies the crimp dimension of the contact pin has been reduced.
| Pin: |
1.07 mm (square) |
| Shield: |
6.47 mm (hex) |
| Crimp die: |
DIE-R-BNCX-PDG |
Approved Cables
To guarantee high performance for each cable-connector combination at high frequencies Neutrik measured common COAX cables which are specifically designed for ultra high definition transmission (UHD). Find all approved cables listed below.
Suitable cables:
Belden 1505F, Bryant BD SD53F, Cordial CVI 08-37 HD
UHD optimized cable:
Klotz VD083LP 0.8L/3.7DZ, Cordial CVM 08-37 UHD-FLEX
