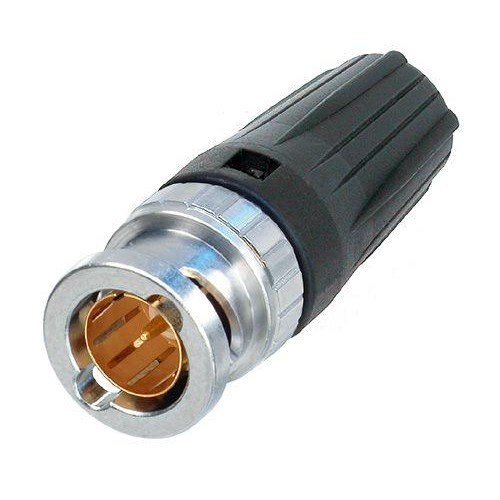

Name: Neutrik rearTWIST HD BNC Cable Connector Suits Belden 1505F
Price: 7.44 AUD

“rearTWIST Principle” locking/unlocking using the easily accessible soft touch boot (Patent DE 100 48507)
True 75 Ω design meets the stringent HDTV / DVD requirements
Snug-fit center pin insert provides tactile feedback
Excellent cable protection and retention
Accessories include color coded boots in 10 standard colors, crimp tool and dies
Ideal for recessed bulkheads where access to the “head” of the connector might be an issue. These connectors turn from the back and not the front.
Leading area: Avoids tilting due to side forces to protect contacts from deformation. Guarantees a lifetime of min. 1000 mating cycles!
Shield and jacket crimp technology prevents the problem of an exposed grounding braid on cable assemblies
Precise Swiss machined brass parts for outstanding durability

(Each)

Qty	Each (inc GST)	Each

Product

Electrical Specifications

Contact resistance	≤ 3 mΩ (inner)
Contact resistance	≤ 2 mΩ (outer)
Dielectric strength	1.5 kVdc
Insulation resistance	> 5 GΩ
Rated voltage	<50 V
VSWR	≤1.050/>32 dB up to 1 GHz ≤1.065/>30 dB up to 2 GHz ≤1.100/>26 dB up to 3 Ghz

Mechanical Specifications

Cable O.D.	6.3 mm
Cable retention	> 30 N (Center)
Crimp size	6,47 Hex crimp (shield) acc. IEC 60803 (die designation E)
Crimp size (pin)	1,6 Square crimp (pin) acc. IEC 60803 (die designation 2)
Insertion force	< 25 N
Lifetime	> 1000 mating cycles
Wiresize
Locking device	Bayonett
Cable anchoring	Jacket crimping

Environmental Specifications

Temperature range	-30 °C to 85 °C
Contact crimpability	Complies with IEC 60803 and IEC 60352-2
