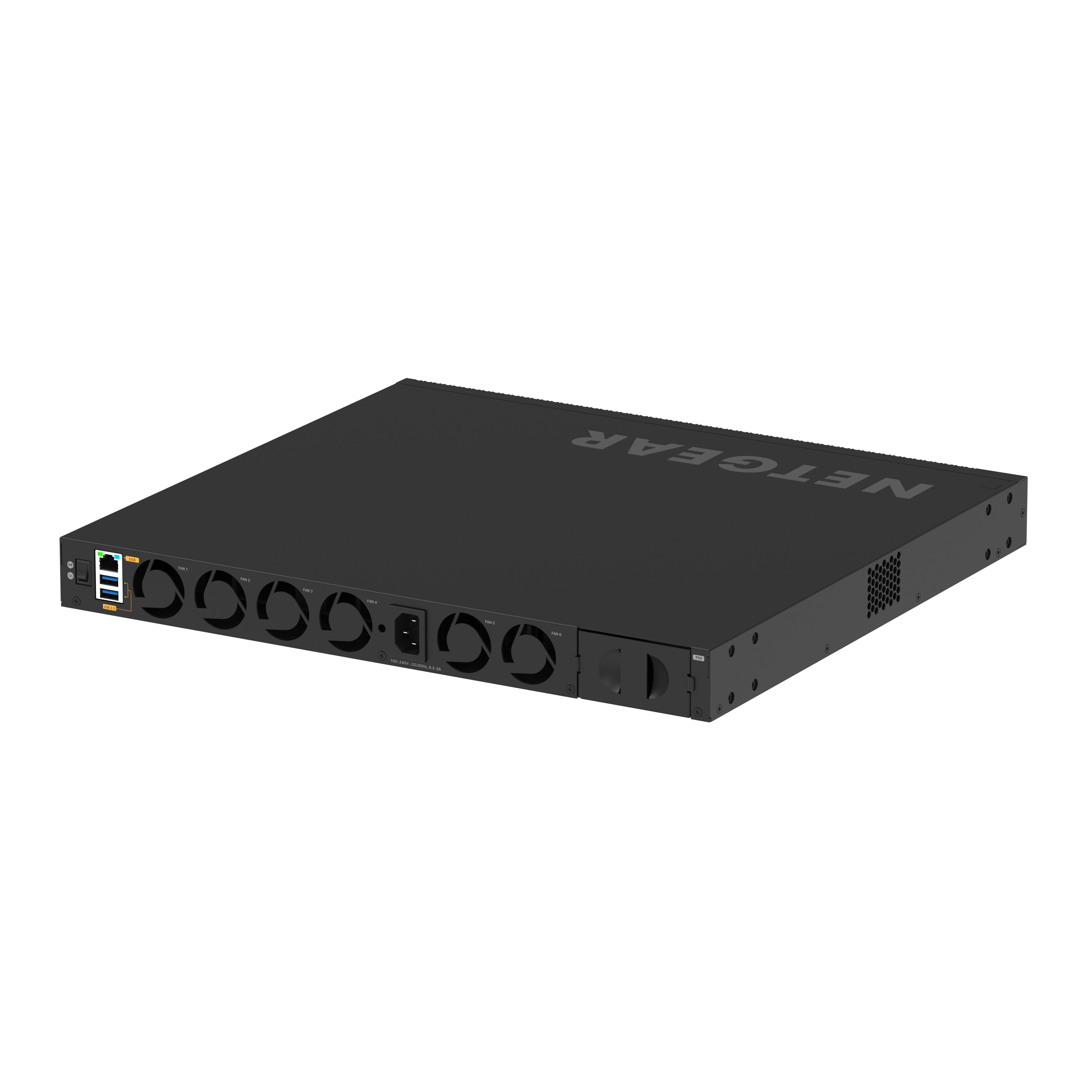

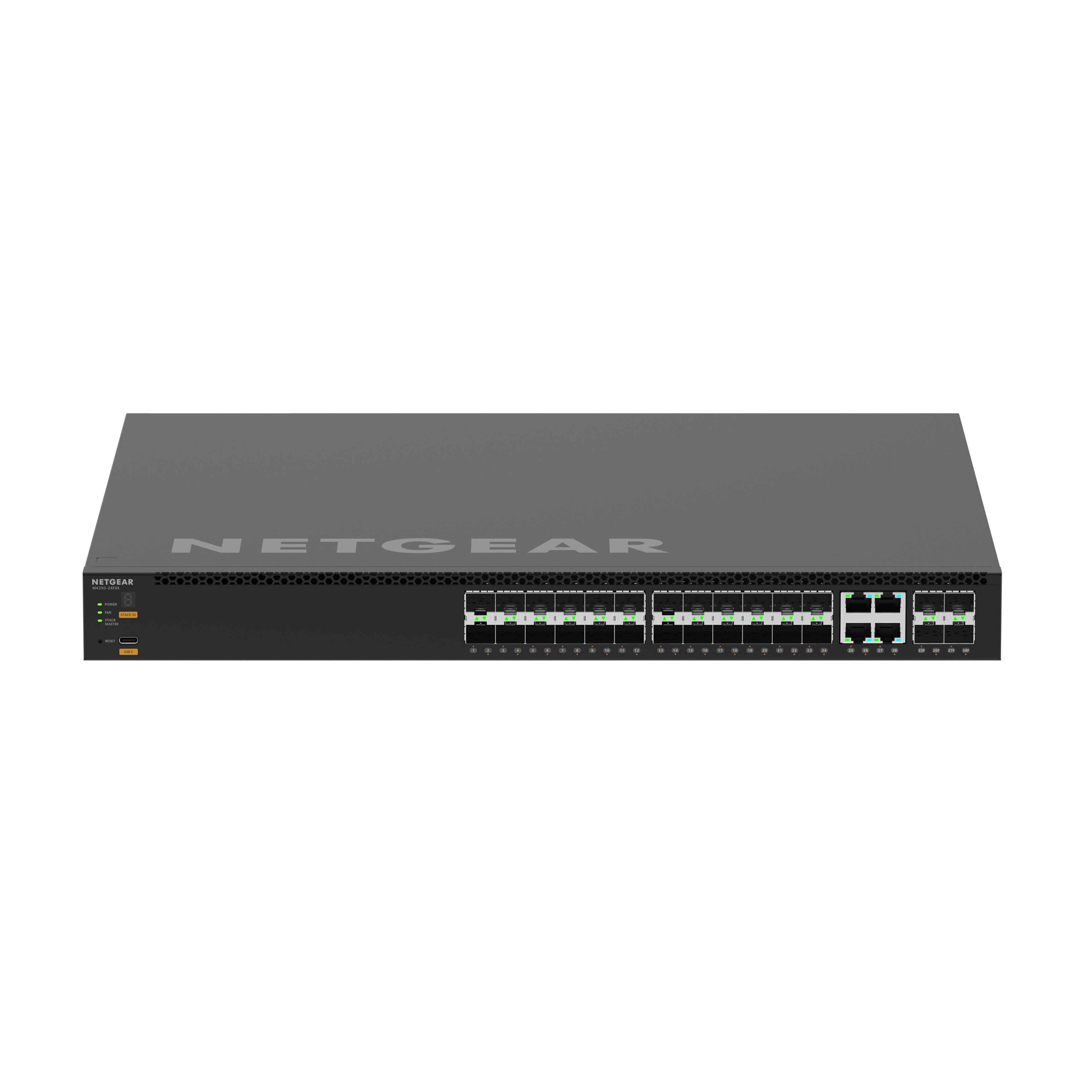

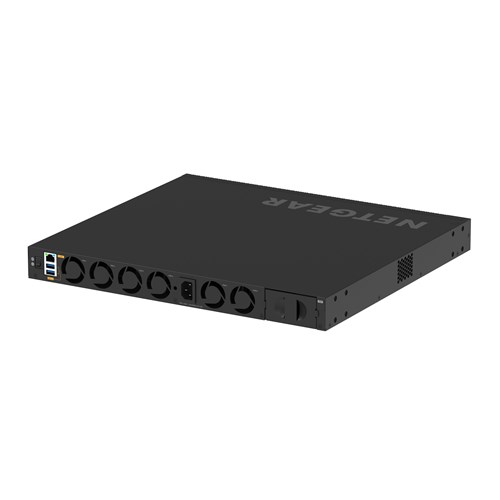

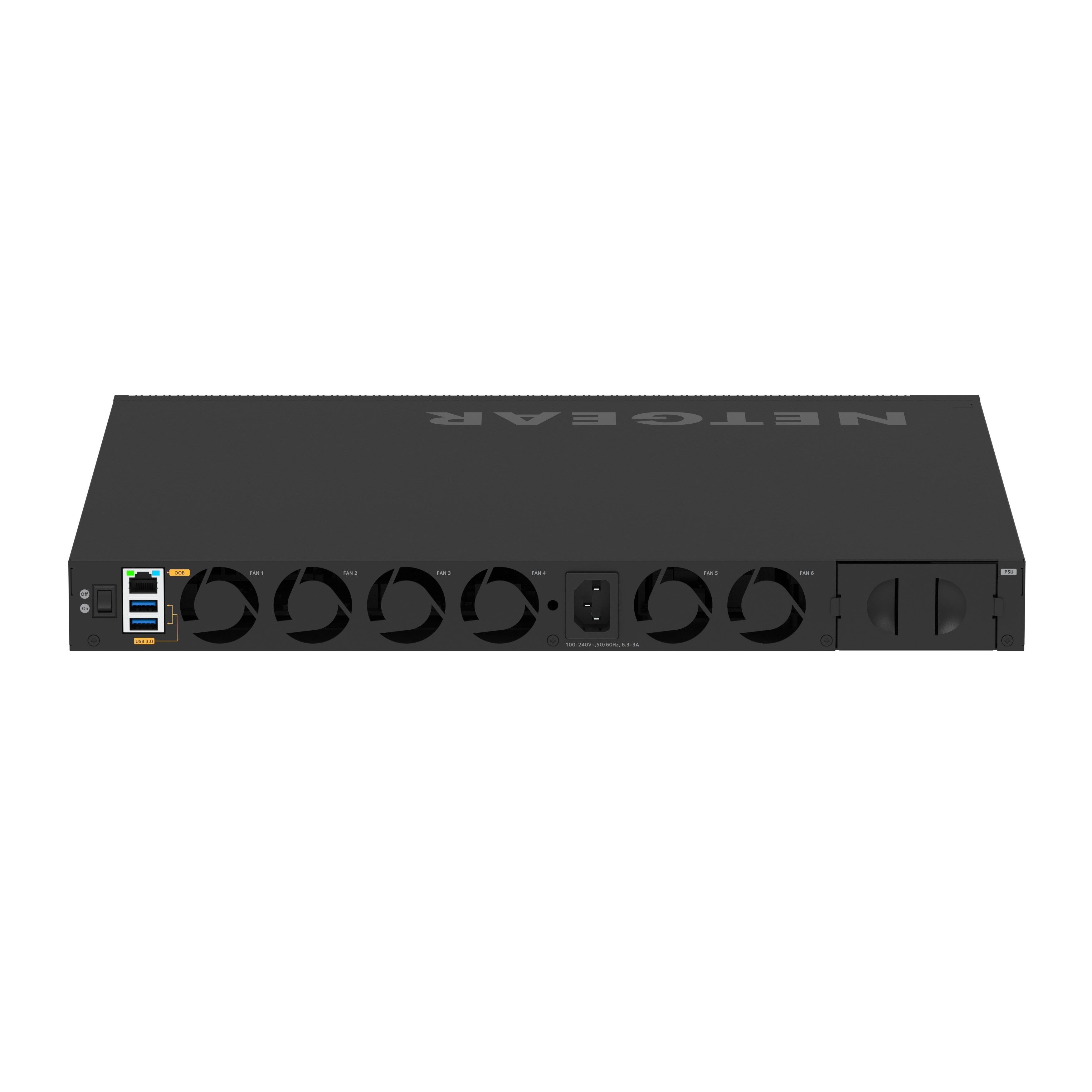

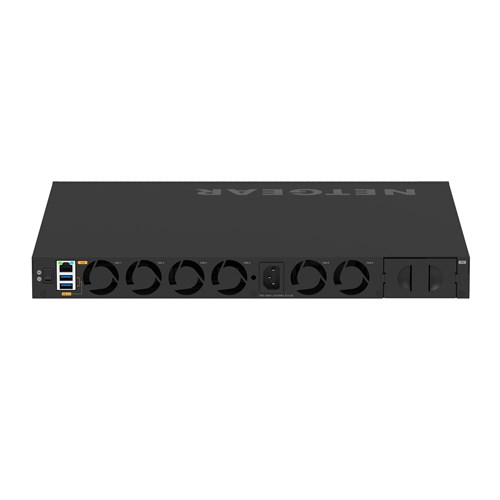

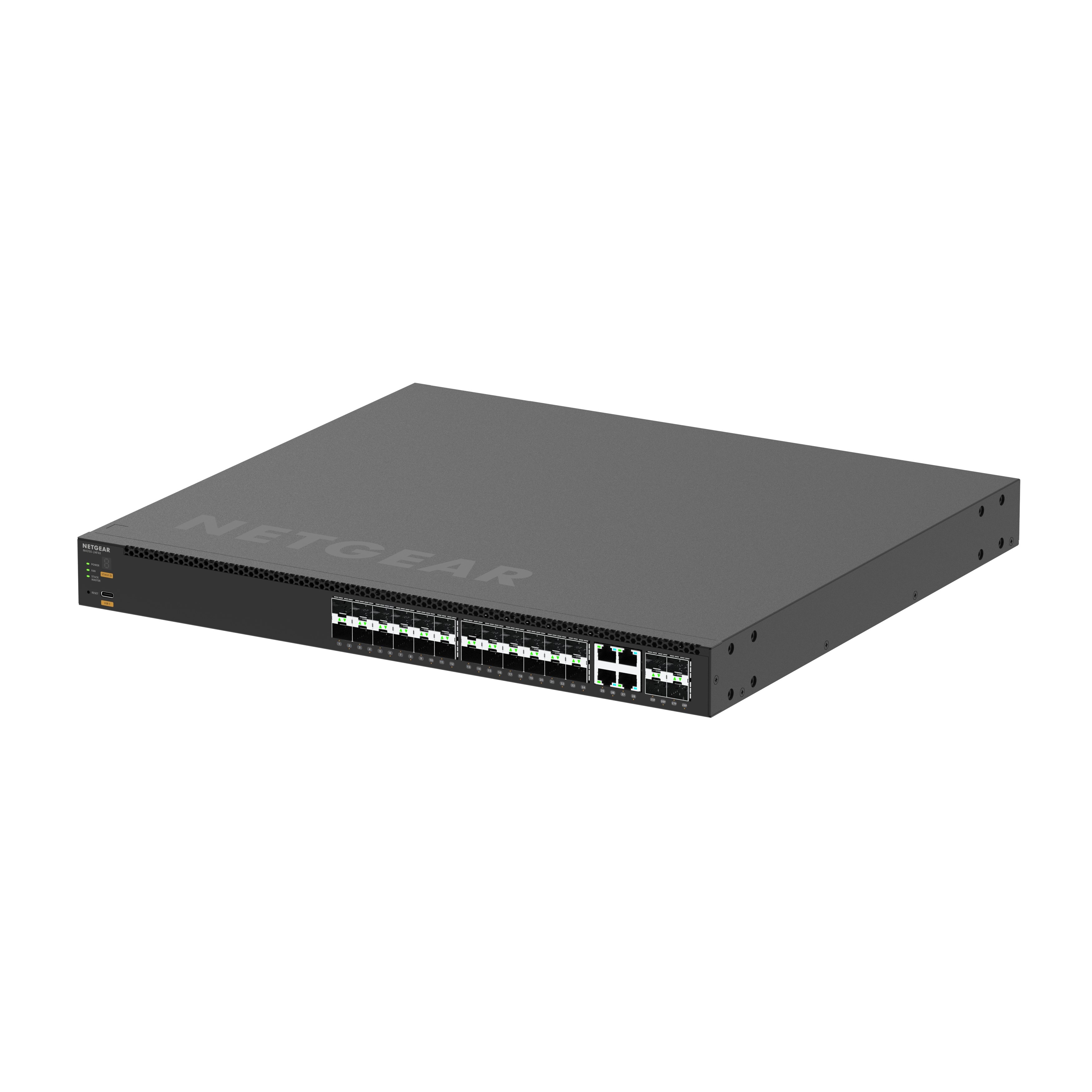

NETGEARAV M4350-24F4X Fully Managed Switch - 24x1G/2.5G SFP and 4x10G Combo Copper / SFP+ Managed Switch

Product Code: NGR MSM4328F-100AJS

Key Features
  • 24 1G/2.5GBASE-X SFP ports, and 4 Combo 10GBASE-T Copper / 10GBASE-X SFP+ ports.
  • 240W internal power supply.
  • 1 slot for modular power supply (1+1 redundancy).
  • Any APS600Wv3, APS1200Wv2, or APS2000Wv2 can be used.
  • Virtual Chassis stacking provides non-stop forwarding (NSF) and hitless failover.
  • Layer 3 feature set includes static, policy-based, and dynamic routing.
  • NETGEAR IGMP Plus, NETGEAR AV OS, and Engage Controller speed up AV installations.
  • SMPTE ST 2110 Grand Master Clock and Boundary Clock for AES67 and ST2059-2 applications.
  • Ideal for Audio over IP deployments as a core connecting to 1G M4250 switches (SFP ports).
  • Multi-color LED on each physical port reflecting the profile color in the NETGEAR AV OS and Engage Controller.
  • NETGEAR ProSAFE Limited Lifetime Hardware Warranty.
$11,499.00 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
Estimated Lead time 4-6 weeks
  • Features
  • Overview
  • Technical Specs
  • Documents

NETGEARAV M4350-24F4X Fully Managed Switch - 24x1G/2.5G SFP and 4x10G Combo Copper / SFP+ Managed Switch

POWER AND THROUGHPUT - Edge to core flexible platform, from 1 Gigabit to 100 Gigabit, good for projects of all sizes.

Groundbreaking AV GUI - A simplified user interface makes it easy to assign configuration profiles to each port.

Multicast in an Instant - NETGEAR IGMP Plus™ provides multicast functionality right out of the box for most AV over IP applications.

Sleek, Quiet Design - Less fan noise, and mounting ears included for rack mounting.

Automatic Configuration - Auto-trunk and auto-LAG functionality auto connects with other M4350 (and M4250) switches.

FAST, EASY CONFIGURATION FOR AV PROS - A streamlined interface enables factory default AV settings or user-specified AV profiles to be assigned to individual ports with just a few clicks.

FOCUS ON THE EVENT NOT FAN NOISE - Most models have quiet mode which greatly reduces fan noise.

DESIGNED FOR AV OVER IP RIGHT OUT OF THE BOX - With built-in NETGEAR IGMP Plus™, there's little-to-no setup required for flawless audio and video delivery. Enable multicasting right out of the box.

MAXIMIZE PERFORMANCE WITH PRO WIFI ACCESS POINTS - Enable powerful, reliable WiFi at your location with Pro WiFi access points, powered by PoE or an external power adapter.

What's In The Box:

  • M4350-24F4X (MSM4328F)
  • Power cord x 1
  • Console USB Type-C cable x 1
  • Rack-mounting standard bracket set x 1
  • Set of longer brackets for recessed mounting x 1
  • Rubber footpads for tabletop installation x 4
  • Installation guide
Warranty

We offer a Limited Lifetime warranty on this product from its date of purchase. For more information on our support, repair and warranty, download our Warranty Guide here.

Trade Terms
This item is a firm order product, meaning it cannot be cancelled or returned once the purchase order is processed, except in cases of defect. Please verify that part numbers and descriptions are accurate before placing your order. For any confirmation or additional information, please contact AV Sales at 1800 00 77 80.
  • Width: 440mm
  • Depth: 400mm
  • Height: 43.2mm
  • Weight: 7.38Kg (16.26lb)
  • Primary Port Speed: 1 / 2.5 Gigabit
  • Number of Ports: 28 (24 x 1G/2.5G SFP, 4 Combo 10GBASE-T Copper / 10G SFP+)
  • IGMP Support: Enhanced (NETGEAR IGMP Plus™)
  • Jumbo Frame Support: Yes, up to 12kb
  • AVB Support: Yes, included
  • Acoustics: Quiet Mode 30dB@25ºC
  • Power Consumption:
    • Max: 115.5W/393.84Btu/hr
    • Standby without any port connection: 39W/132.87Btu/hr
  • PSU Compatible Models: APS600Wv3, APS1200Wv2, APS2000Wv2
