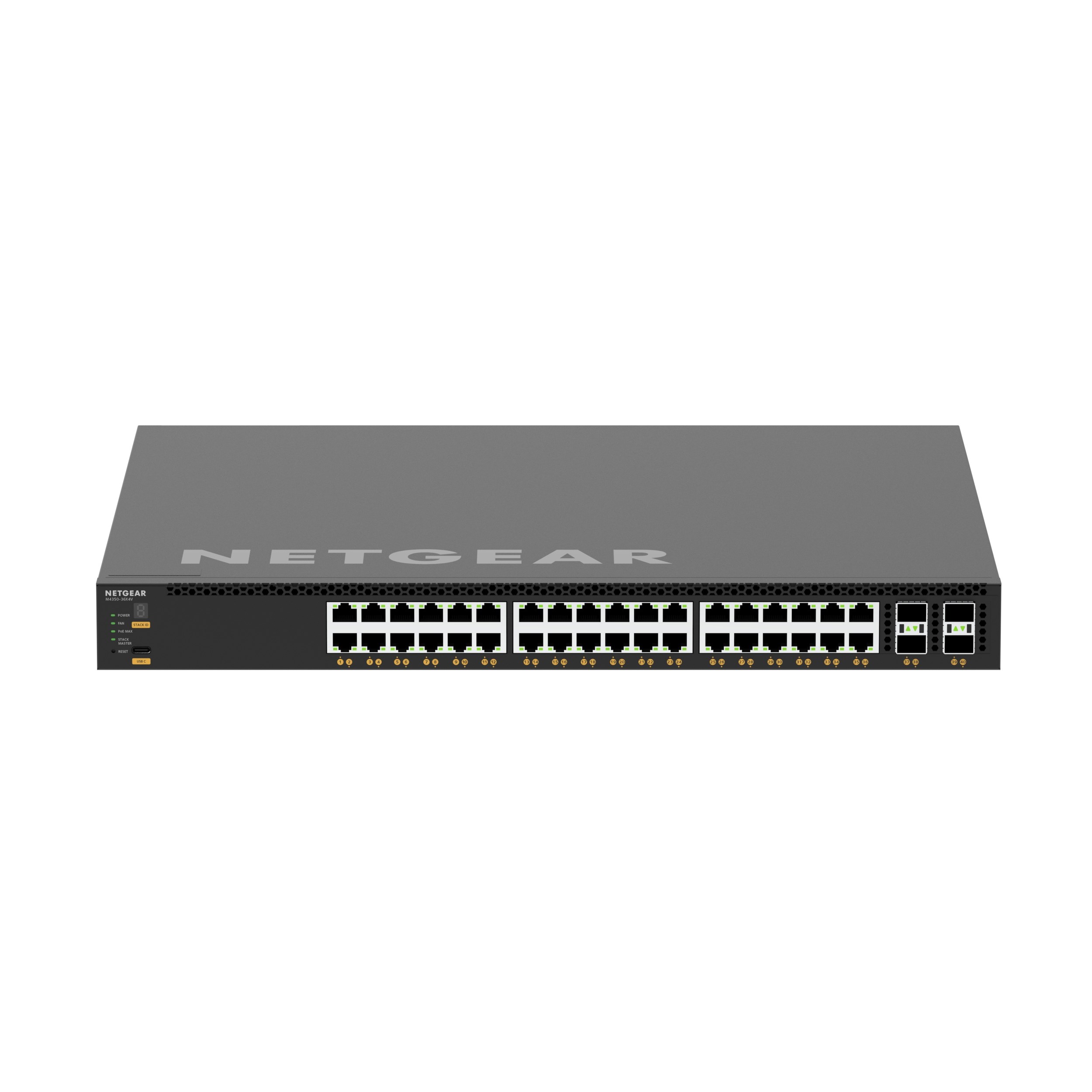

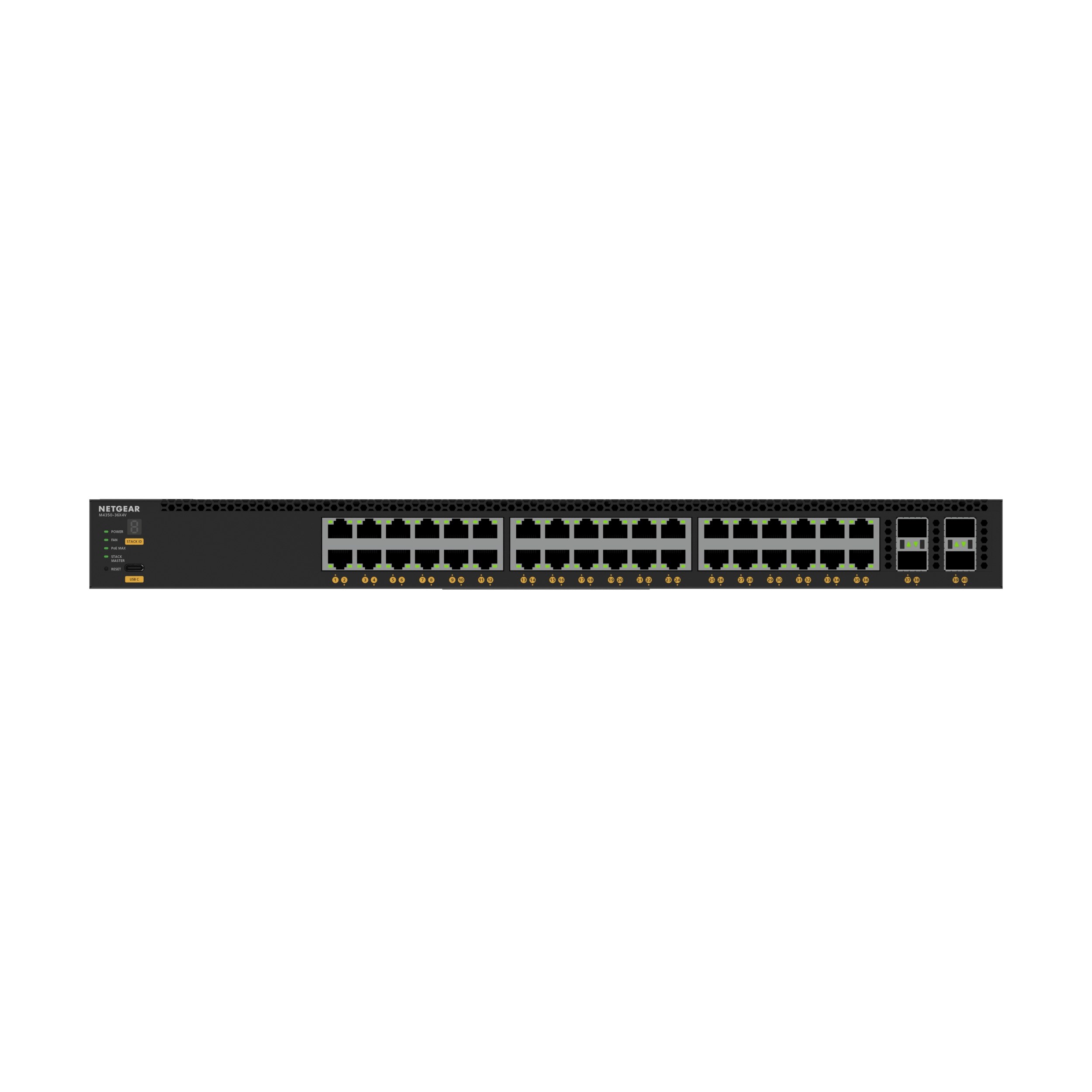

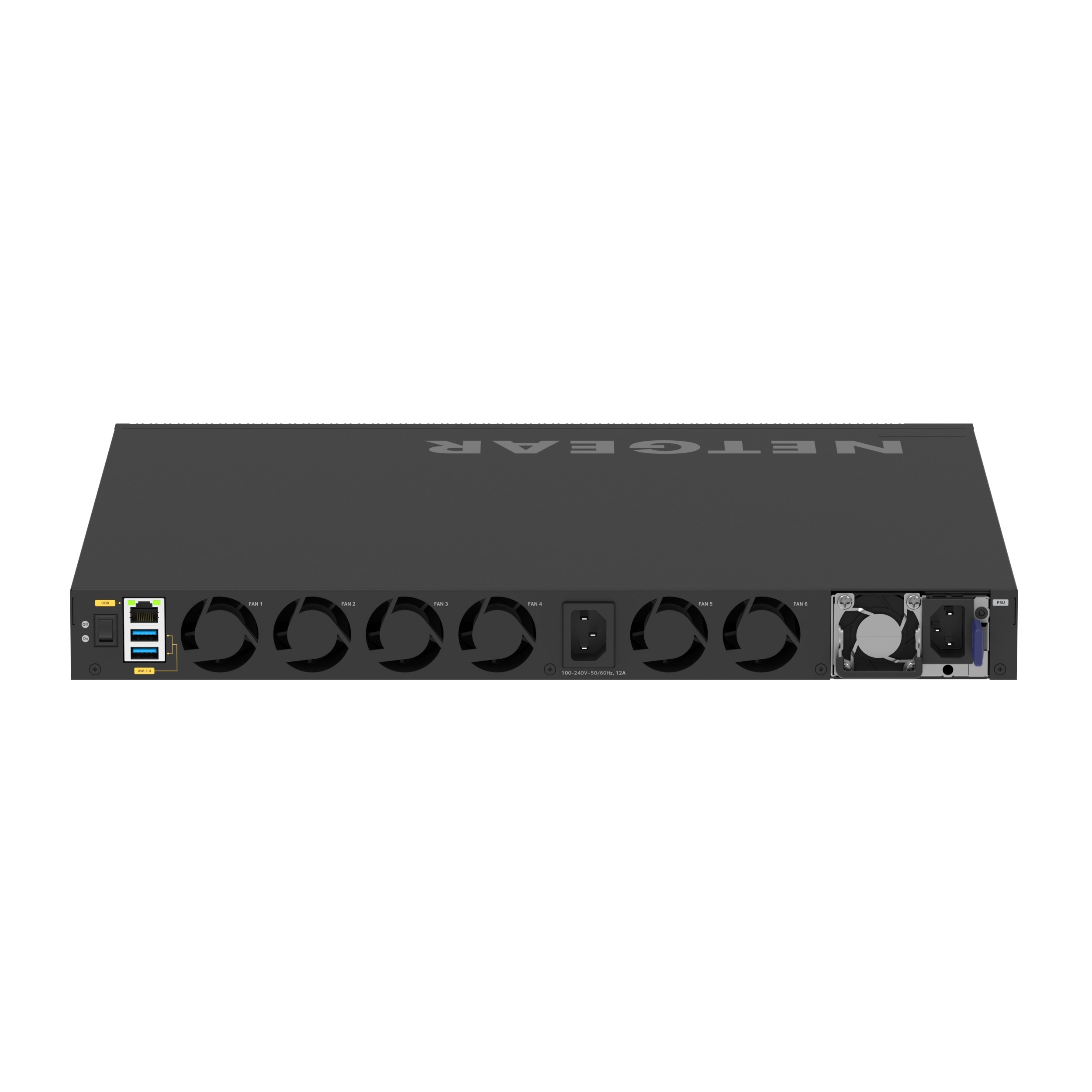

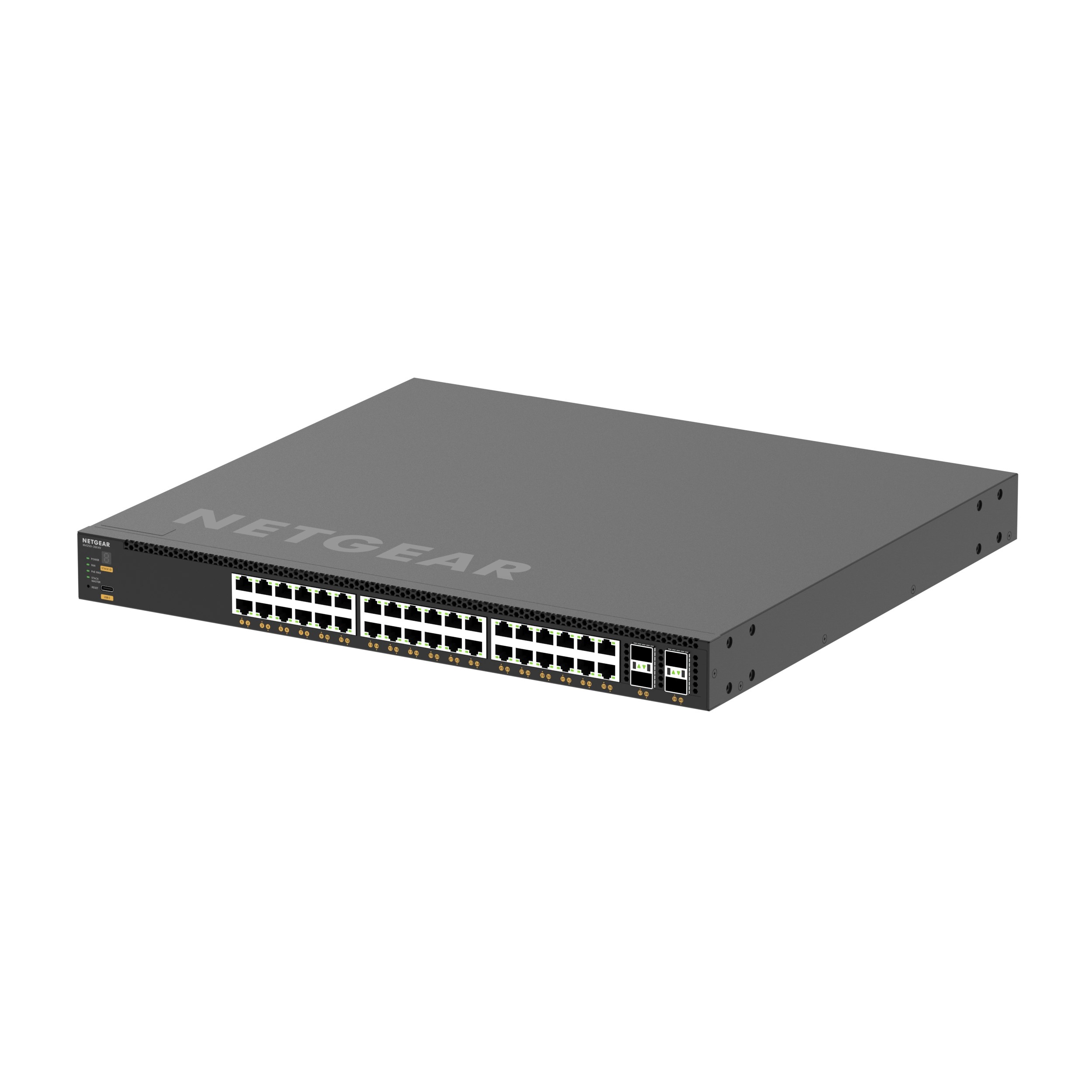

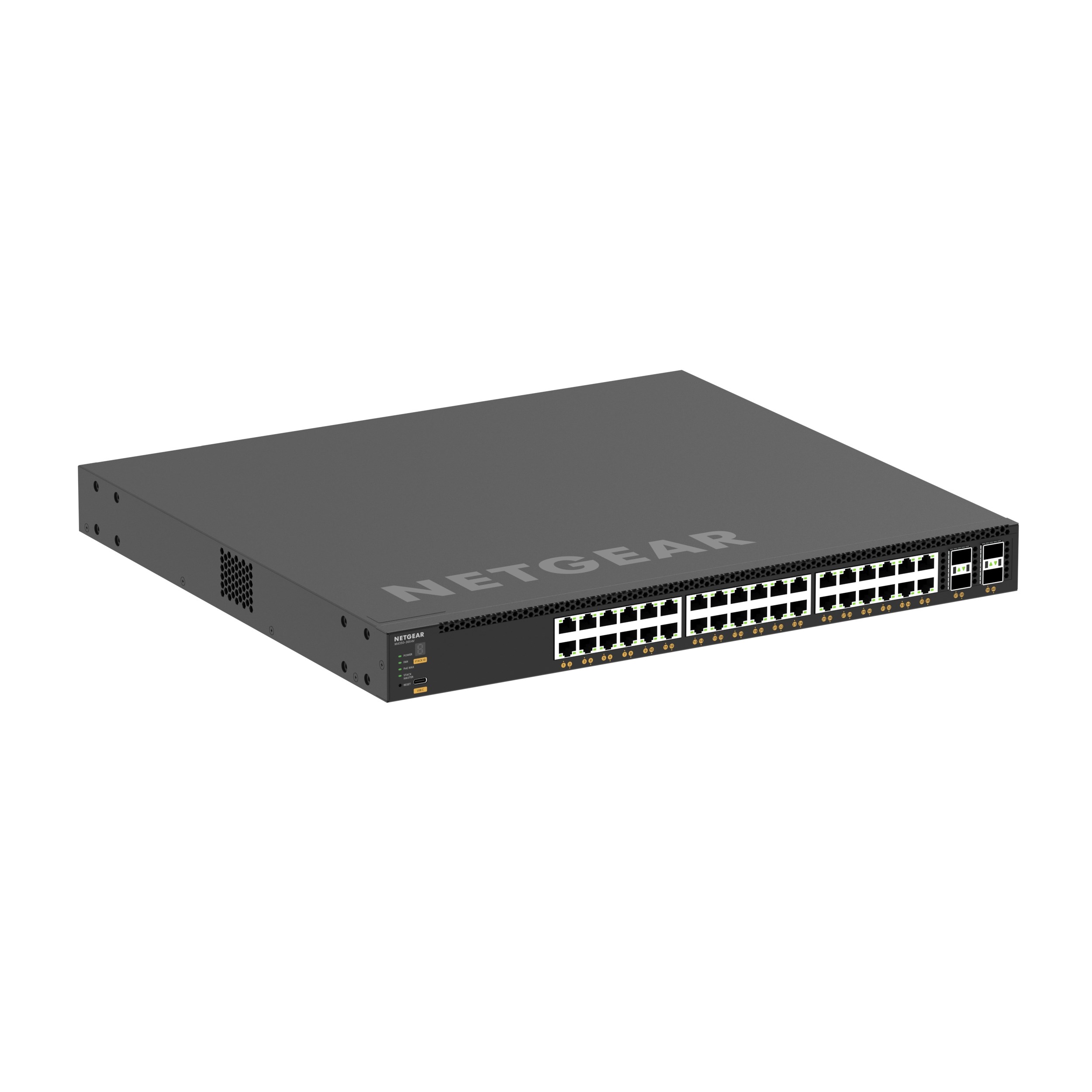

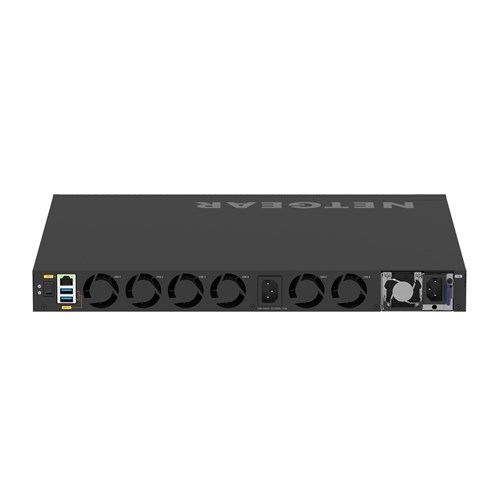

NETGEAR M4350-36X4V 40-port Stackable Layer 3 Fully Managed Switch with 36 x 10G/Multi-gig PoE++ & 4 x 25GBASE-X SFP2

Product Code: NGR XSM4340CV-100AJS

Key Features
  • 36 10G/Multi-Gig PoE++ ports with 4 25GBASE-X SFP28 uplinks.
  • 750W internal power supply providing 280W of PoE budget.
  • 1 slot for modular power supply (1+1 redundancy and/or EPS share).
  • Any APS600Wv3, APS1200Wv2, or APS2000Wv2 can be used.
  • The PoE budget can reach 1,760W, when the redundant PoE budget remains 280W.
  • Virtual Chassis stacking provides non-stop forwarding (NSF) and hitless failover.
  • Layer 3 feature set includes static, policy-based, and dynamic routing.
  • NETGEAR IGMP Plus™, AV User Interface, and Engage Controller speed up AV installations.
  • NETGEAR ProSAFE® Limited Lifetime Hardware Warranty.
  • Dimensions: 440x400x43.2 mm
  • Weight: 7.33Kg (16.16 lb)
$18,599.00 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
Estimated Lead time 4-6 weeks
  • Features
  • Overview
  • Technical Specs
  • Documents

NETGEAR M4350-36X4V 40-port Stackable Layer 3 Fully Managed Switch with 36 x 10G/Multi-gig PoE++ & 4 x 25GBASE-X SFP2

POWER AND THROUGHPUT - Edge to core stackable platform, from 1 Gigabit to 100 Gigabit, all within 15.75in (40cm) of depth.

Groundbreaking AV GUI - A simplified user interface makes it easy to assign configuration profiles to each port.

Multicast in an Instant - NETGEAR IGMP Plus™ provides multicast functionality right out of the box for most AV over IP applications.

Sleek, Quiet Design - Less fan noise, and mounting ears included for under-table or wall mounting.

Automatic Configuration - Auto-trunk and auto-LAG functionality auto connects with other M4350 (and M4250) switches.

Fast, Easy Configuration for AV Pros - A streamlined interface enables factory default AV settings or user-specified AV profiles to be assigned to individual ports with just a few clicks.

Focus On The Event, Not Fan Noise - Most models have quiet mode which greatly reduces fan noise, and some models are even fanless.

Designed for AV Over IP Right Out of The Box - With built-in NETGEAR IGMP Plus™, there's little-to-no setup required for flawless Video over IP delivery. Enable multicasting right out of the box.

Maximize Performance With Pro Wifi Access Points - Enable powerful, reliable WiFi at your location with Pro WiFi access points, powered by PoE or an external power adapter.

What's In The Box:

  • M4350-36X4V (XSM4340CV)
  • Power cord
  • Console USB Type-C cable
  • Rack-mounting standard bracket set
  • Set of longer brackets for recessed mounting
  • 4 Rubber footpads for tabletop installation
  • Installation guide
Warranty

We offer a Limited Lifetime warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Trade Terms
This item is a firm order product, meaning it cannot be cancelled or returned once the purchase order is processed, except in cases of defect. Please verify that part numbers and descriptions are accurate before placing your order. For any confirmation or additional information, please contact AV Sales at 1800 00 77 80.
  • Width: 440mm
  • Depth: 400mm
  • Height: 43.2mm
  • Weight: 7.33kg (16.16lb)
  • Primary Port Speed: 10 Gigabit / Multi-Gig
  • Number of Ports: 40 (36 x 10G/Multi-Gig PoE++, 4 x 25G SFP28)
  • PoE Ports / Budget: 36 PoE++ (90W/port), 280W Base, up to 1,760W Budget
  • IGMP Support: Enhanced (NETGEAR IGMP Plus™)
  • Jumbo Frame Support: Yes, up to 12kb
  • AVB Support: Yes, included
  • Acoustics: Quiet Mode 32.1dB@25ºC
  • Power Consumption: With PoE: 454W/1548.14Btu/hr. Without PoE: 148W/464.72Btu/hr. Standby without any port connection: 59.3W/186.2Btu/hr
  • PSU Compatible Models: APS600Wv3, APS1200Wv2, APS2000Wv2
