NETGEAR Engage AV GUI plus Insight Managed WiFi 7 BE9400 Tri Band Access Point (WBE718) 4-Year Insight Subscription Included

Product Code: NGR WBE718-111APS

Key Features
  • Tri-band access point delivering 9.4Gbps of data throughput
  • Multi-gig Ethernet port ensures full bandwidth connection for maximum speed
  • Up to 8 separate wireless networks (SSIDs)
  • 37 MIMO per group for faster data transmission
  • WPA3 encryption for the highest level of WiFi connection security
  • Configure with NETGEAR Engage for integration with AV networks
  • Small form factor for a more incognito appearance
  • Simplified deployment with PoE+ for single cable power & data
  • Backwards compatible with older WiFi devices for a futureproof solution
  • 4-years of NETGEAR Insight Remote Cloud Management included
$888.89 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
Estimated Lead time 4-6 weeks
  • Features
  • Overview
  • Technical Specs
  • Documents

Netgear WBE718 Cloud Managed WiFi 7 Access Point

The Netgear WBE718 is an Insight-managed WiFi 7 access point engineered for business networks that need higher capacity, broader coverage and lower latency. Built on the 802.11be standard, it operates simultaneously across the 2.4 GHz, 5 GHz and 6 GHz bands with 320 MHz channelisation in 6 GHz - delivering up to 9.4 Gbps of aggregate wireless throughput. A 2.5 Gigabit Multi-Gig PoE+ port supplies both data and power over a single cable, simplifying deployment in offices, schools, hospitality venues and conference centres.

THE FUTURE OF BUSINESS IS HERE

Achieve real-time responsiveness, super low latency, and greater capacity while doubling the data throughput of WiFi 6E.

Experience advanced WiFi for advanced business.

Multi-Link Operation

Blocks interfering frequencies and uses the adjacent frequencies available in that channel, instead of making the entire channel unusable.

Preamble Puncturing

Reduces signal interference, which allows WiFi devices to use parts of different channels to transmit data, greatly reducing network congestion.

Lower Environmental Impact

Built with a mix of partially to fully recycled materials and features that support power saving modes via NETGEAR Insight Remote Management.

Higher Bandwidth

Accommodates ultra-wide 320MHz channels for transmission speeds up to 5Gbps to WiFi 7 end-point devices.

SOLUTIONS FOR ALL BUSINESSES

  • Education: Modernise learning experiences with increased data transfer speed and ultra-low latency for students and staff.
  • Corporate Offices: From the warehouse to meeting rooms and cubicled, establish speedy connections for the whole office.
  • Hospitality: Tackle congestion and interference in areas with densly packed devices or neighbouring networks that overlap, such as hotels or restaurants.
  • Residential: Enjoy smoother high resolution content, including immersive AR and VP environments and gaming.

What's Included

  • WBE718 Insight Manageable WiFi 7 Access Point
  • Wall and ceiling mount kit
  • Installation guide
  • 4-year NETGEAR Insight subscription
Warranty

We offer a 5 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

General
Model WBE718-111APS
Manufacturer Part Number WBE718-111APS
Product Family Insight Cloud Access Points
WiFi Standards
WiFi Generation WiFi 7 (IEEE 802.11be)
6 GHz Band 802.11ax/be
5 GHz Band 802.11a/n/ac/ax/be
2.4 GHz Band 802.11b/g/n/ax/be
Wireless Performance
MIMO Configuration 2x2 on 2.4 GHz, 5 GHz and 6 GHz
Channelisation 6 GHz: 20 / 40 / 80 / 160 / 320 MHz; 5 GHz: 20 / 40 / 80 / 160 MHz; 2.4 GHz: 20 / 40 MHz
Maximum Aggregate Throughput 9.4 Gbps theoretical
Throughput per Band 6 GHz 5,765 Mbps; 5 GHz 2,882 Mbps; 2.4 GHz 688 Mbps
Antenna Internal 3.45 / 5.39 / 5.49 dBi (2.4 / 5 / 6 GHz)
OFDM / OFDMA OFDM and OFDMA
Bidirectional MU-MIMO 37 per group
Multi-Link Operation (MLO) Yes
Target Wake Time (TWT) Yes
BSS Coloring Yes
Bandsteering Yes
Security
Encryption WPA2, WPA3, WPA2 Enterprise, WPA3 Enterprise, 802.11i
RADIUS 802.1X with EAP-TLS, TTLS, PEAP
SSIDs Up to 8
VLAN VLAN and dynamic VLAN
Access Control MAC filtering and Access Control Lists
Other Guest Network / Captive Portal, Block SSID Broadcast, Neighbor AP detection, SSL
Mesh and Roaming
Instant WiFi Mesh Wireless backhaul with other Insight-managed Pro WiFi access points
WDS Repeater, Point-to-point bridge, Multi-point bridge, simultaneous bridge and client
Connectivity
Ethernet Port 1 x 2.5 GbE Multi-Gig (100 Mb / 1 Gb / 2.5 Gb)
Power over Ethernet 802.3af, 802.3at, 802.3bt (with 802.3af, throughput is reduced 50% on 2.4 GHz, 25% on 5 GHz, with no 6 GHz)
PoE Power Consumption 25 W
Power Adapter (optional, not included) 12 V DC, 2.5 A
LED Single multi-colour LED
Management
Cloud Management NETGEAR Insight Cloud (4-year subscription included)
App Management NETGEAR Insight app for setup, monitoring and management
Local Management Web GUI
AV Mode NETGEAR Engage controller-compatible
Physical
Dimensions (W x D x H) 157 x 157 x 40 mm (6.2 x 6.2 x 1.6 in)
Weight 0.69 kg

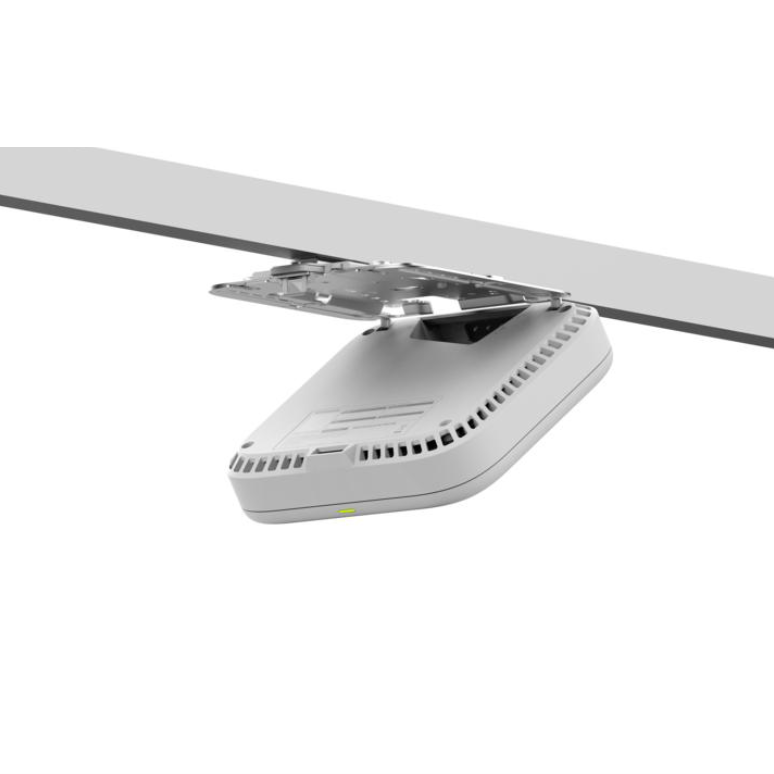

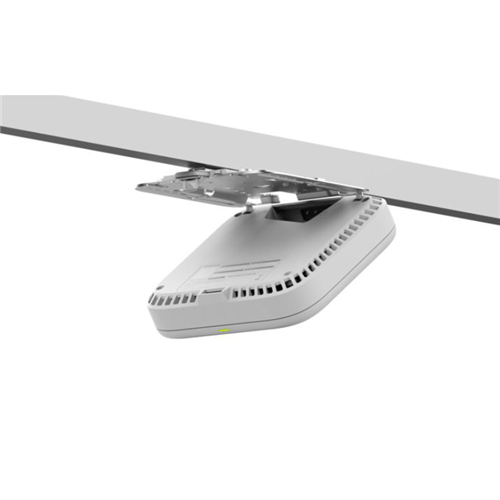

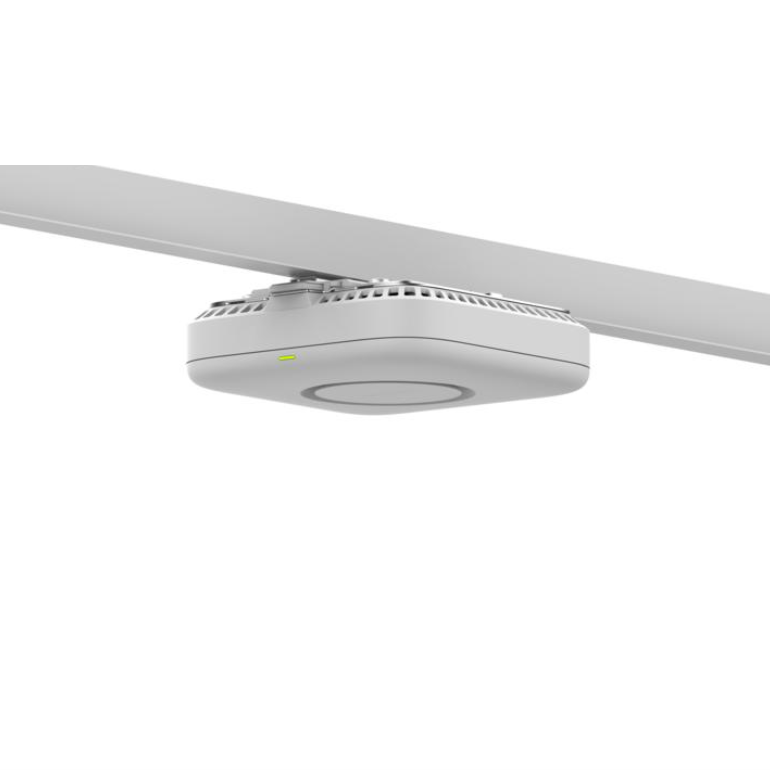

Mounting Wall and ceiling mount kit included
Environmental
Operating Temperature 0°C to 40°C (32°F to 104°F)
Use Indoor only
