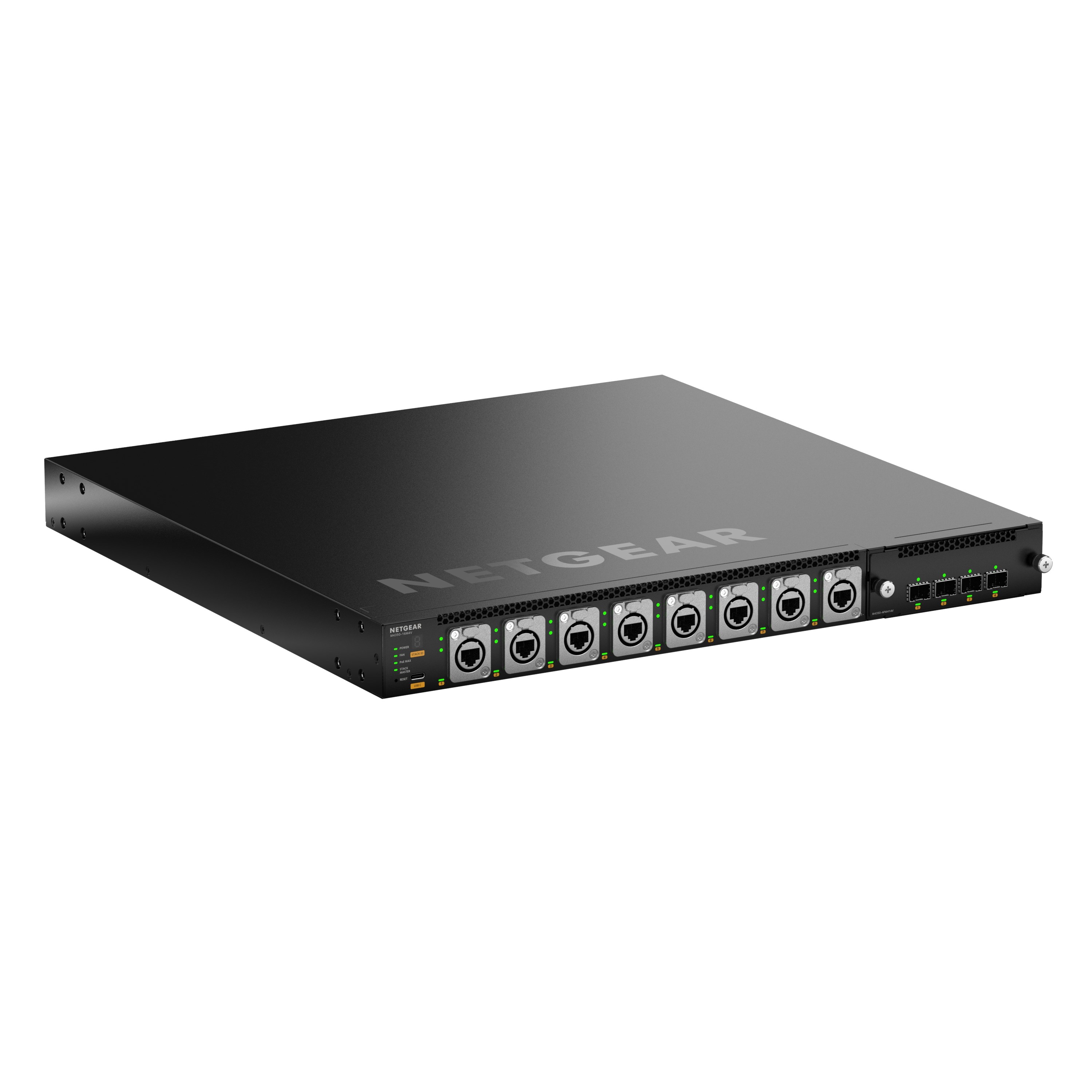

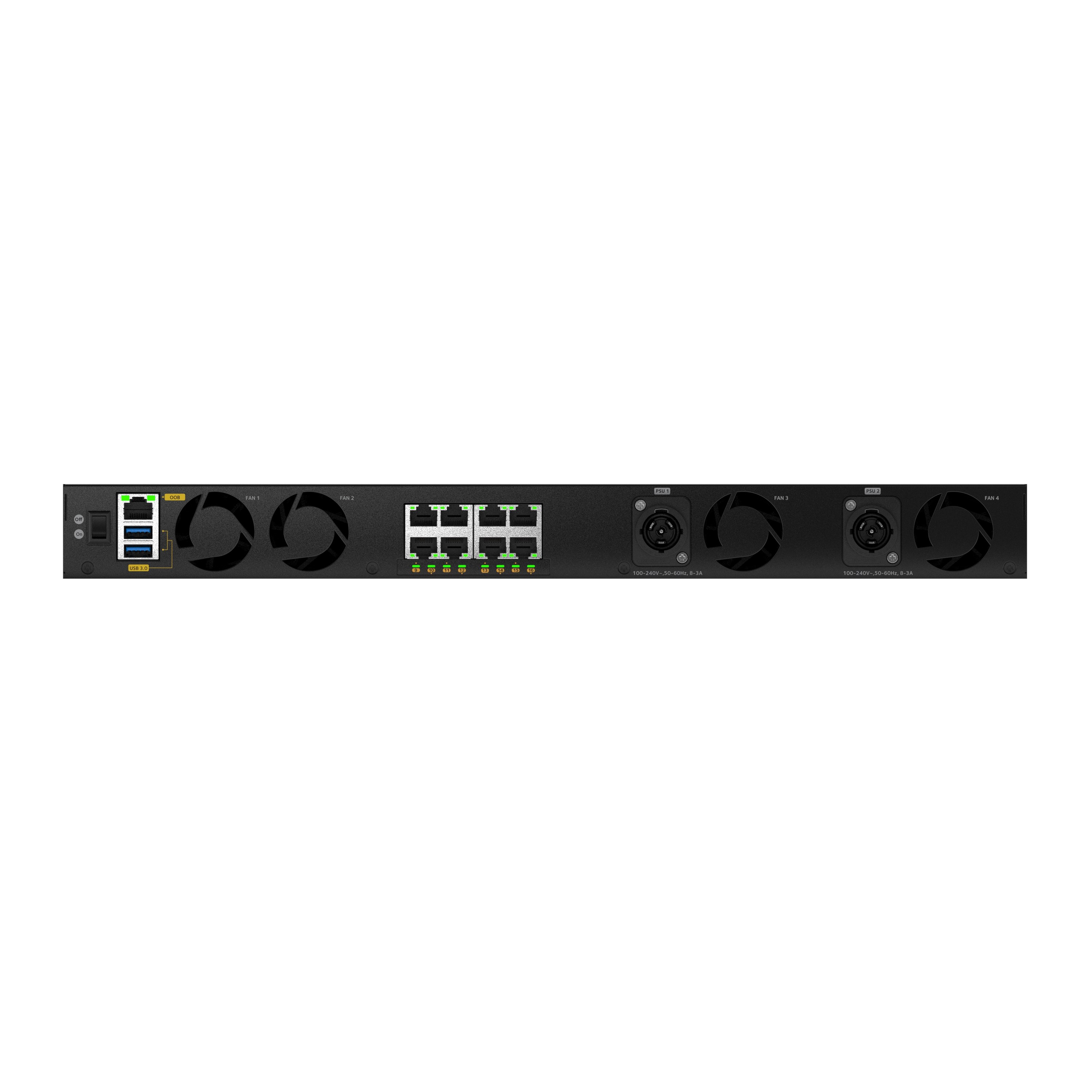

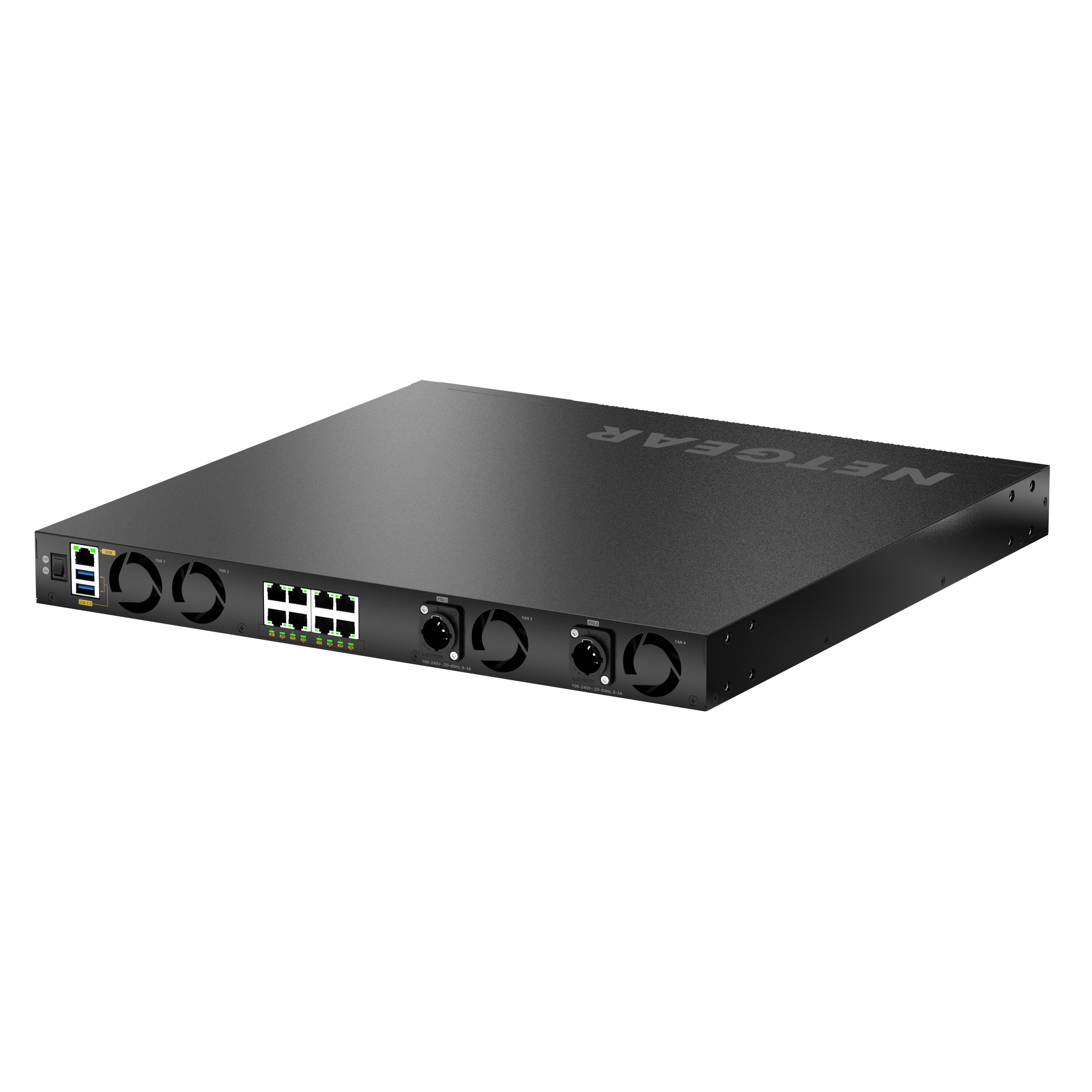

NETGEAR AV Line M4350-16M4V 16x 2.5G PoE++ incl. 8xNeutrik etherCON and 4x25G SFP28 (MSM4320)

Product Code: NGR MSM4320-100AJS

Key Features
  • 20-ports: 16x 2.5G PoE++ incl. 8x Neutrik etherCON, and 4x 25G SFP28 uplinks
  • 1130W total when the redundant PoE budget remains 530W (1+1)
  • Two internal 800W power supplies providing 530W of redundant base PoE budget
  • Switch ships with one APM414V interface card with 4x 25G SFP28 ports
  • 2x Neutrik powerCON connectors and C14 male power cord adapters for standard IEC 320 C13 cords
  • Virtual Chassis stacking provides non-stop forwarding (NSF) and hitless failover
  • Layer 3 feature set includes static, policy-based, and dynamic routing
  • NETGEAR IGMP Plus, NETGEAR AV OS, and NETGEAR Engage Controller speed up AV installations
  • SMPTE ST 2110 Grandmaster Clock and Boundary Clock for AES67 and ST2059-2 applications
  • Multi-color LED on each physical port reflecting the profile color in the NETGEAR AV OS and Engage Controller
  • NETGEAR Limited Lifetime Hardware Warranty.
$17,999.00 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
Estimated Lead time 4-6 weeks
  • Features
  • Overview
  • Technical Specs
  • Documents

NETGEAR AV Line M4350-16M4V 16x 2.5G PoE++ incl. 8xNeutrik etherCON and 4x25G SFP28 (MSM4320)

POWER AND THROUGHPUT - Edge to core flexible platform, from 1 Gigabit to 100 Gigabit, good for projects of all sizes.

Groundbreaking AV GUI - A simplified user interface makes it easy to assign configuration profiles to each port.

Multicast in an Instant - NETGEAR IGMP Plus™ provides multicast functionality right out of the box for most AV over IP applications.

Sleek, Quiet Design - Less fan noise, and mounting ears included for rack mounting.

Automatic Configuration - Auto-trunk and auto-LAG functionality auto connects with other M4350 (and M4250) switches.

FAST, EASY CONFIGURATION FOR AV PROS - A streamlined interface using certified profiles with settings for any AV or broadcast application assigned to ports with just a few clicks.

FOCUS ON THE EVENT NOT FAN NOISE - Most models have quiet mode which greatly reduces fan noise.

DESIGNED FOR AV OVER IP RIGHT OUT OF THE BOX - With built-in NETGEAR IGMP Plus™, there's little-to-no setup required for flawless audio and video delivery. Enable multicasting right out of the box.

What's In The Box:

  • 1 x M4350-16M4V (MSM4320)
  • 1 x Power Cord (Standard AC to C13)
  • 2 x Neutrik powerCON connectors and C14 male power cord adapters for standard IEC 320 C13 cords
  • 1 x Console USB Type-C cable
  • 1 x Rack-mounting standard bracket set
  • 1 x Set of longer brackets for recessed mounting
  • 4 x Rubber footpads for tabletop installation
  • 1 x Installation guide
Warranty

We offer a Limited Lifetime warranty on this product from its date of purchase. For more information on our support, repair and warranty, download our Warranty Guide here.

Width 440mm
Depth 432mm
Height 43.2mm
Weight 7.85kg (17.31lb)
Primary Port Speed 2.5 Gigabit
Number of Ports 20 (16 x 2.5G PoE++ incl. 8x Neutrik etherCON, and 4x 25G SFP28)
IGMP Support Enhanced (NETGEAR IGMP Plus™)
Jumbo Frame Support Yes, up to 12kb
AVB Support Yes, included.
Acoustics Quiet Mode 35.6dB@25ºC
Power Consumption With max PoE: 1359.8W/4,639.64Btu/hr
Without PoE: 109.6W/373.96Btu/hr
Standby w/o any port connection 50.6W/170.60Btu/hr
PSU Compatible Models Internal only
Internal PSUs 2 internal 800W PSUs with PowerCON connectors
Compatible Interface Cards APM414SD (2x Neutrik opticalCON QUAD for 4x MMF Transceivers)
APM414LD (2x Neutrik opticalCON QUAD for 4x SMF Transceivers)
APM414V (4x Standard 25G SFP28 ports) ships with the switch
APM414C (4x Standard 10G RJ5 ports)
