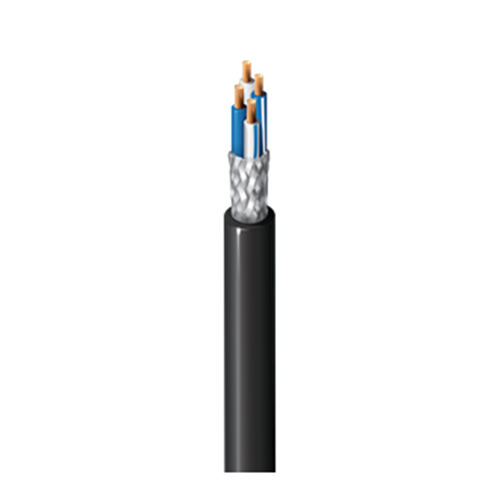

Belden Multi-Conductor - Four-Conductor Star Quad Low-Impedance Mic Cable 24AWG Black - 305m Reel

Product Code: 1192A B591000

Key Features
24 AWG stranded (42x40) high-conductivity bare copper conductors, polyethylene insulation, tinned copper braid shield (95% coverage), PVC jacket.
$5.67 inc GST
(Mtr)
Increase value Decrease value
Qty Each (inc GST) Each
In Stock
  • Features
  • Overview
  • Technical Specs
  • Documents
16 AWG stranded (65x34) high-conductivity tinned copper conductors, EPDM rubber insulation, rayon braid, TC braid shield (85% coverage), cotton wrap, CPE jacket.

Please call Madison for Project Quotations on Belden Products, or for pricing on any unlisted Belden products

Warranty

We offer a 10 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Physical Characteristics (Overall)
# Conductors4
AWG16
Stranding65x34
Conductor MaterialHigh Conductivity TC - Tinned Copper
Dia. (mm)1.4986
Total Number of Conductors:4
Insulation MaterialEPDM - Ethylene Propylene Diene Monomer Rubber
Dia. (mm)3.048
TypeBraid
Outer Shield MaterialTC - Tinned Copper
Coverage (%)85
Outer Shield Separator Material:Cotton Wrap
Outer Jacket MaterialNeoprene
Number1
ColorBlack
Overall Cabling Separator Material:Rayon Braid
Overall Nominal Diametre:10.566 mm
Mechanical Characteristics (Overall)
Operating Temperature Range:-30°C To +60°C
Non-UL Temperature Rating:60°C
Bulk Cable Weight:165.190 Kg/Km
Max. Recommended Pulling Tension:720.608 N
Min. Bend Radius/Minor Axis:107.950 mm
Applicable Specifications and Agency Compliance (Overall)
EU Directive 2011/65/EU (ROHS II):Yes
EU CE Mark:Yes
EU Directive 2000/53/EC (ELV):Yes
EU Directive 2002/95/EC (RoHS):Yes
EU RoHS Compliance Date (mm/dd/yyyy):01/01/2004
EU Directive 2002/96/EC (WEEE):Yes
EU Directive 2003/11/EC (BFR):Yes
CA Prop 65 (CJ for Wire & Cable):Yes
MII Order #39 (China RoHS):Yes
UL Flame Test:VW-1
Plenum (Y/N):No
Electrical Characteristics (Overall)
Other Electrical Characteristic 1:2/c 13 AWG equivalent DCR when connected to a 3-pin XLR
Notes (Overall)
Notes:Quad connection scheme: The black and red wires (or wires directly opposite one another) are connected together to form one conductor, and similarly the white and green wires (or remaining wires) are connected together to form the second conductor.
