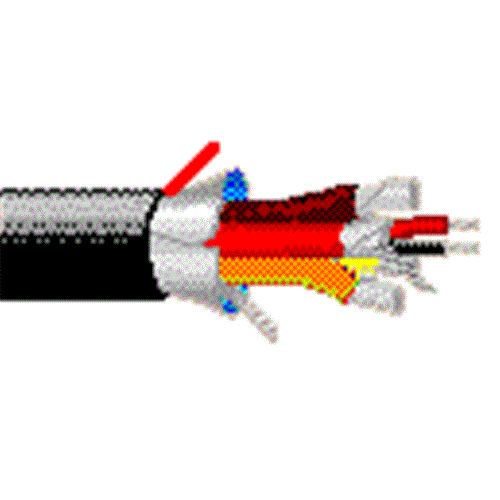

Belden Analog Audio Cable - Flexible CM Rated 4 Pair Individual Foil Screened and Jacketed 24 AWG Black - 305m Reel

Product Code: 1510C B591000

Key Features
24 AWG stranded (7x32) TC conductor, polyolefin insulation, individually shielded Beldfoil® (100% coverage) numbered/color-coded PVC jackets, jackets and shields bonded to strip simultaneously, overall Beldfoil shield and 24 AWG TC drain wire.
$9.24 inc GST
(Mtr)
Increase value Decrease value
Qty Each (inc GST) Each
In Stock
  • Features
  • Overview
  • Technical Specs
  • Documents
24 AWG stranded (7x32) TC conductor, polyolefin insulation, individually shielded Beldfoil® (100% coverage) numbered/color-coded PVC jackets, jackets and shields bonded to strip simultaneously, overall Beldfoil shield and 24 AWG TC drain wire.

Please call Madison for Project Quotations on Belden Products, or for pricing on any unlisted Belden products

Warranty

We offer a 10 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Physical Characteristics (Overall)
# Pairs4
AWG24
Stranding7x32
Conductor MaterialTC - Tinned Copper
Dia. (mm)0.6096
Total Number of Conductors:8
Insulation MaterialPO - Polyolefin
Wall Thickness (mm)0.2032
Dia. (mm)1.016
Inner Shield Trade NameBeldfoil®
TypeTape
Inner Shield MaterialAluminum Foil-Polyester Tape
Coverage (%)100
Inner Shield Drain Wire Stranding:7x32
Inner Shield Drain Wire Conductor Material:TC - Tinned Copper
Inner Jacket MaterialPVC - Polyvinyl Chloride
Nom Wall (mm)0.3556
Nom. Dia. (mm)2.8194
Number1
ColorBrown
Outer Shield Trade NameBeldfoil®
Outer Shield MaterialAluminum Foil-Polyester Tape
AWG18
Stranding7x26
Drain Wire Conductor MaterialTC - Tinned Copper
Outer Jacket MaterialPVC - Polyvinyl Chloride
Nom. Wall Thickness (mm)0.9398
Outer Jacket Ripcord:Yes
Overall Nominal Diametre:8.941 mm
Mechanical Characteristics (Overall)
Operating Temperature Range:-35°C To 75°C
Bulk Cable Weight:96.733 Kg/Km
Max. Recommended Pulling Tension:393.221 N
Min. Bend Radius/Minor Axis:88.900 mm
Applicable Specifications and Agency Compliance (Overall)
NEC/(UL) Specification:CM
CEC/C(UL) Specification:CM
EU Directive 2011/65/EU (ROHS II):Yes
EU CE Mark:Yes
EU Directive 2000/53/EC (ELV):Yes
EU Directive 2002/95/EC (RoHS):Yes
EU RoHS Compliance Date (mm/dd/yyyy):01/01/2004
EU Directive 2002/96/EC (WEEE):Yes
EU Directive 2003/11/EC (BFR):Yes
CA Prop 65 (CJ for Wire & Cable):Yes
MII Order #39 (China RoHS):Yes
Plenum (Y/N):No
Electrical Characteristics (Overall)
Ind. Pair Nominal Shield DC Resistance @ 20 Deg. C:52.168 Ohm/km
