Studio Technologies Model 5418 Mic/Line Interface

Product Code: ST-M5418

Key Features

The Model 5418 Mic/Line Interface provides a simple yet high-performance means of interfacing analog signals with applications that utilize Dante®audio-over-Ethernet media networking technology. Eight analog microphone- or line-level sources can be connected to the unit and then output in the digital domain by way of a Dante interface. Eight digital audio signals, which arrive by way of Dante, are converted to analog and then output as balanced line-level signals. Configuration choices also allow other audio signals to be selected as the sources for the analog output channels. A monitor section allows the input and output signals to be selectively observed using metres and a headphone output.

Key Features

  • Dante audio-over-Ethernet technology
  • Eight mic/line inputs to Dante outputs
  • Eight Dante inputs to line-level analog outputs
  • Flexible monitoring with metreing and headphone output
$9,640.04 inc GST
(Each)
Increase value Decrease value
Qty Each (inc GST) Each
Estimated Lead time 2-4 weeks
  • Features
  • Overview
  • Technical Specs
  • Documents

Studio Technologies Model 5418 Mic/Line Interface

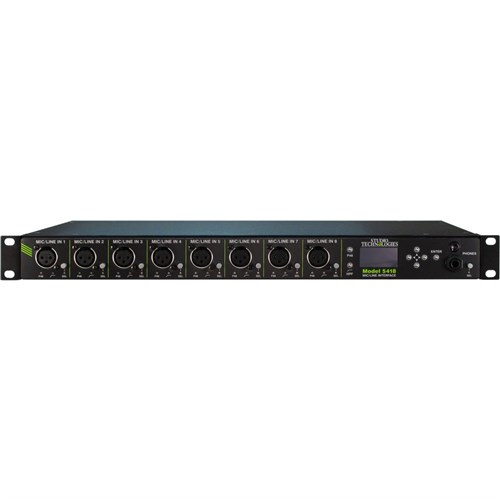

The Model 5418 is a fully professional product that offers the audio quality, features, and reliability required by 24-hour on-air and commercial applications. Located on the unit's front panel, the eight mic/line audio inputs use standard 3-pin female XLR connectors for easy interfacing with balanced and unbalanced sources. The input circuitry features adjustable gain, P48 phantom power, and high-pass filter functions. Configuration of the inputs can be made locally by using pushbutton switches and an OLED display. Alternately, the STcontroller software application allows remote control of the input parametres. The analog mic/line input audio signals are converted to 24-bit PCM digital and then transported via the Dante interface.

Using the Dante Controller software application, eight digital audio signals can be routed (subscribed) to the Model 5418 via the Dante interface. These input signals are then converted to analog and provided to users as balanced line-level analog outputs. One 25-pin female D-subminiature connector, located on the unit's back panel, provides access to the eight analog outputs.

The monitor section provides the user with the ability to select any input or output signal, or signal pair, for monitoring using the 2-channel (stereo) headphone output. A configuration choice allows selected analog outputs to provide a monitoring function for connection to inputs on amplified loudspeakers. The OLED display offers level metreing functions which allow the input or output audio signals to be visually monitored.

The Model 5418 provides three Gigabit Ethernet ("GigE") network interfaces, two to support redundant Dante operation and the third for accessing the management menu system. To meet the latest interoperability standard the Model 5418's Dante implementation supports AES67-2018. The unit also supports the Dante Domain Manager (DDM) software application. An integrated web server allows fast and flexible monitoring and configuration of the unit's networking, audio, and Dante performance. Front-panel indicators, an OLED display, and pushbutton switches provide users with direct access to key operating parametres.

The Model 5418 can be powered by 100-240 V, 50/60 Hz mains or a source of 12 volts DC. Both can be simultaneously connected to provide redundant operation. The lightweight enclosure mounts in one space (1U) of a standard 19-inch rack. Industry-standard connectors are used for the audio input, audio output, Ethernet, DC power, and AC mains interconnections.

Dante audio-over-Ethernet has found wide acceptance as an audio "backbone" due to its ease of use, interoperability, excellent audio quality, and wide adoption by a large number of equipment manufacturers. The Model 5418 can serve as an "edge" device for Dante network implementations, providing high-performance input, output, and monitor resources in a compact, cost-effective package. The unit can also serve as a general-purpose "tool" to help extend Dante capabilities to facilities and applications that were initially implemented to support signals in the analog domain.

Dante Audio-over-Ethernet

Digital audio data associated with the Model 5418 is interfaced with a local area network (LAN) using Dante audio-over-Ethernet media networking technology. Status LEDs provide a real-time indication of Dante and LAN performance. A major benefit of using Dante is its ability to use any standard Ethernet network implementation, including switches, to directly transport professional audio signals. The Model 5418 supports digital audio signals with a sampling rate of 44.1, 48, and 96 kHz and a bit depth of up to 24. These sampling rates were selected for optimal support of broadcast, production, industrial, and commercial applications.

The signals associated with the eight mic/line input channels are converted to digital and then routed to transmitter (output) channels on the Dante interface. Eight transmitter (output) channels from one or more associated Dante-enabled devices can be assigned to the Model 5418's receiver (input) channels using the Dante Controller software application. These input signals are converted into analog and then, depending on the unit's configuration, sent to the analog output circuitry.

Network Ports

Using the Dante Controller software application, the Model 5418's two Dante Ethernet ports can be selected to operate in either the switched or redundant modes. In the switched mode a single Ethernet connection is used for interconnection with other Dante-compliant devices. The second Model 5418 Dante Ethernet port can be used to interface with another piece of network equipment. In the redundant mode independent Ethernet connections would be made to the unit's two Ethernet ports implementing Dante's redundant network capability.

Warranty

We offer a 3 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Trade Terms
The above item is non-returnable, unless defective. Please ensure part numbers and descriptions are as required before placing this order. If any confirmation or information is required please contact AV Sales on 1800 00 77 80.

Network Audio Technology:
Type: Dante audio-over-Ethernet
AES67-2018 Support: yes, selectable on/off
Dante Domain Manager (DDM) Support: yes
Ethernet Interface Configuration: switched or redundant
Bit Depth: up to 24
Sampling Rates: 44.1, 48, and 96 kHz, selectable
Number of Transmitter (Output) Channels: 8
Number of Receiver (Input) Channels: 8
Dante Audio Flows: 32 transmitter, 32 receiver

Network Interfaces:
Qty: 3; Dante primary, Dante secondary, and management
Type: 1000BASE-T (Gigabit Ethernet ("GigE")) per IEEE 802.3ab (100 Mb/s also supported but not recommended for optimal performance)
NIC Status LEDs: one link and one activity for each Ethernet interface

Mic/Line Inputs: 8
Compatibility: dynamic, ribbon, or phantom-powered mics; mic/line-level sources
Type: analog, electronically balanced, capacitor coupled
Impedance – Mic Setting: 3.0 k ohms, nominal
Impedance – Line Setting: 6.4 k ohms, nominal
Gain: 0 dB (line), 10-60 dB in 1-dB steps
Maximum Level: 24 dBu, 0 dB gain selected (results in Dante output level of 0 dBFS)
EIN: –126 dBu, 22 kHz bandwidth, 49 dB gain, 150 ohm source resistance
Dynamic Range: >117 dB, 0 dB gain, A-weighted
Distortion (THD N): <0.001% (–101 dB) at –1 dBFS, 40 dB gain, 22 kHz bandwidth
Frequency Response: 0.0/–0.1 dB, 20 Hz to 22 kHz, HPF off
High-Pass Filter (HPF): –6 dB at 75 Hz, 18 dB per octave, on/off selectable per channel
Phantom Power: P48 per IEC 61938:2013 standard, 46 volts DC nominal, on/off selectable per channel
Metering: part of OLED display function
Status LEDs per Input Channel: 3; P48, HPF, and input channel selected

Remote Configuration Capability: preamplifier gain, P48 phantom power on/off status, and high-pass filter (HPF) on/off status (uses STcontroller software application)

Analog Outputs: 8
Type: line-level, electronically balanced, capacitor coupled, intended to drive balanced or unbalanced loads of 2 k ohms or greater
Source Impedance: 200 ohms
Nominal Level: 4 dBu, reference –20 dBFS, adjustable ±20 dB in 1-dB steps
Maximum Level: 24 dBu
Dynamic Range: >119 dB, A-weighted
Distortion (THD N): 0.001% (–100 dB), reference 1 kHz, measured at 23 dBu output (–1 dBFS input)
Frequency Response: ±0.1 dB, 6 Hz to 20 kHz

Audio Monitor:
Source: mic/line inputs or analog outputs, selectable as monaural or stereo
Metering: part of OLED display function

Headphone Output:
Type: stereo (dual-channel)
Compatibility: intended for connection to stereo headphones with nominal impedance of 100 ohms or greater
Maximum Output Voltage: 4.9 volts RMS, 1 kHz, 150 ohm load
Frequency Response: 0/–1.4 dB, 20 Hz to 20 kHz
Distortion (THD N): 0.005%
Dynamic Range: >100 dB

Front-Panel Display: OLED

Software Updating: USB flash drive supports updating of application and FPGA firmware (embedded software); Dante interface updated via Ethernet interface

Power Sources:
AC Mains: 100 to 240 V, 50/60 Hz, 20 W maximum
DC: 10 to 18 V, 1.5 A maximum

Connectors:
Mic/Line Inputs: 3-pin female XLR
Analog Outputs: 25-pin female D-subminiature (DB-25F), AES59-2012 compliant
Ethernet: RJ45
Headphone Output: 3-conductor ¼-inch jack
USB: type A receptacle (used only for application firmware updates)
DC Input: 4-pin male XLR (pin 1 negative, pin 4 positive)
AC Mains Input: 3-blade, IEC 320 C14-compatible (mates with IEC 320 C13)

Environmental:
Operating Temperature: 0 to 50 degrees C (32 to 122 degrees F)
Storage Temperature: –40 to 70 degrees C (–40 to 158 degrees F)
Humidity: 5 to 95%, non-condensing
Altitude: not characterized

Dimensions – Overall:
19.0 inches wide (48.3 cm)
1.72 inches high (4.4 cm)
7.8 inches deep (19.8 cm); 8.3 inches (21.1 cm) overall

Mounting: one space (1U) in a standard 19-inch rack

Weight: 3.5 pounds (1.6 kg)

Specifications subject to change without notice.
