Studio Technologies Live-Link Jr. 10X Series - Camera End Unit Optcon Duo

Product Code: ST-LLJR-CA-101

Key Features

Live-Link Jr. is a highly-integrated camera extender system optimised for electronic news gathering (ENG), uplink truck, and specialised broadcast applications. The portable camera end unit and rack-mounted truck end unit provide all the resources needed for a single-camera live event. Linked using just two single-mode optical fibres, the same excellent performance will be supplied whether the units are hundreds of feet or miles apart. Notable features of the Live-Link Jr. system include performance flexibility, support for high-quality on-air (program), talent cue (IFB) and intercom audio, and ease of use.

Key Features
• 3G/HD/SD-SDI support
• All audio transported embedded into SDI paths
• Integrated party-line and 4-wire intercom support
• Excellent audio quality throughout
• Full SMPTE®-standards compatibility
• Standard optical, video, and audio connectors
• Hybrid fibre/copper powering of Camera End unit
$14,386.45 inc GST
(Each)
Increase value Decrease value
Qty Each (inc GST) Each
Estimated Lead time 2-4 weeks
  • Features
  • Overview
  • Technical Specs
  • Documents

Studio Technologies Live-Link Jr 10X Series - Camera End Unit Optcon Duo

Video Transport

Live-Link Jr. transports one SDI video signal in each direction: camera-end-to-truck-end and truck-end-to-camera-end. 3G-, HD-, and SD-SDI signals are fully supported. A "loop" output is associated with each SDI input. This provides a signal that follows the embedding process within Live-Link Jr. This "post-embedder" signal can be valuable for "confidence" monitoring, transport of signals via coax, or as an aid during testing or troubleshooting. At the truck end the SDI signal originating at the camera end unit is provided as two independent, buffered SDI outputs.

Audio Transport

The camera end unit has two "mic/line" inputs that are compatible with microphone or line-level signals. Related features include adjustable input sensitivity, phantom power, and level metreing. Each input stage can be independently set for compatibility with line-level signals (0 dB gain) or mic signals (gain of 15, 30, or 45 dB). The provided phantom power is 48 Vdc to ensure correct operation with professional-grade microphones. Extensive filtering on the mic/line inputs minimizes the chance of audio performance issues occurring due to the presence of radio-frequency signals. Protection against damage due to ESD ("static") discharge is also incorporated.

Two balanced line-level outputs are provided on the truck end unit's back panel and are associated with the camera end unit's mic/line inputs. Two additional balanced line-level outputs are also located on the truck end unit's back panel. These outputs provide de-embedded analog signals associated with group 1, channels 1 and 2 of the transported SDI. These "convenience" outputs allow audio embedded, for example, by a camera connected to the camera end unit to be accessible without the need for an external de-embedder unit at the truck end. They can be very useful when connected to inputs on an audio mixer, speaker monitor panel, or RF transmission system.

Intercom

A major strength of Live-Link Jr. is its integrated 2-channel intercom system. With its extensive resources and capabilities the typical hassles and limitations associated with intercom system implementation should be a thing of the past. A 2-channel party-line intercom interface is provided on both the camera end and truck end units. This allows user beltpacks, such as the ubiquitous RTS® BP325, to be directly connected and powered. A fully functional camera-end-to-truck-end "comms" system can be up and running in just minutes. The advanced 2-wire-to-4-wire converter circuitry provides simply excellent audio performance. Adjustment of the converter's "nulling" is user activated by pushbutton switches on both the camera end and truck end units. The pushbuttons allow both the local and alternate-end nulling process to be started.

The Live-Link Jr. truck end also provides a 4-wire interface that is associated with intercom channel 2. An audio input and audio output allows direct interfacing with local and remotely-located matrix intercom systems. In this manner intercom users at the camera end unit, truck end unit, and remote locations can be part of the same intercom circuit.

The party-line interface on the camera end unit provides a power source and the required signal terminations. This allows direct connection of user beltpacks; a typical application could use up to three BP325 units. With its selectable operating mode the truck end party-line interface offers additional resources. Most applications will have the truck end configured for stand-alone operation where power and signal terminations are required. In this mode up to five BP325 beltpacks could be connected. Alternately, the truck end's power source and signal terminations can be disabled allowing interfacing with an existing party-line intercom system. This will allow the truck end's party-line interface to become just another "user" on an already installed system.

For further information please view the attached Datasheet.

Warranty

We offer a 3 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Trade Terms
The above item is non-returnable, unless defective. Please ensure part numbers and descriptions are as required before placing this order. If any confirmation or information is required please contact AV Sales on 1800 00 77 80.
SDI Compatibility, Supported Resolutions, and Rates:
SD-SDI per SMPTE ST® 259:2008:
   525i: 59.94
   625i: 50
HD-SDI per SMPTE ST 292:2011:
   720p: 50, 59.94, 60
   1080i: 50, 59.94, 60
   1080p: 23.98, 24, 25, 29.97, 30
   1080psf: 23.98, 24
3G-SDI Level A per SMPTE ST 424:2006 and ST 425:2011:
   1080p: 50, 59.94, 60
Audio, Data, GPI/GPO, and Control Data Transport:
Embedded into SD-SDI as HANC Ancillary Data per SMPTE ST 272:2004 and ST 291:2011.
Embedded into HD-SDI as HANC Ancillary Data per SMPTE ST 291:2011 and ST 299:2009.
Embedded into 3G-SDI as HANC Ancillary Data per SMPTE ST 291:2011, ST 299:2009, and ST 425:2011.
SDI Inputs and Outputs:
Type: unbalanced
Impedance: 75 ohms
Level: 800 mV p-p, nominal
Optical Outputs:
Compliance: SMPTE ST 297:2006 (as applicable)
Fibre Type: single mode
Wavelength: 1310 ±20 nm (FP laser)
Launch Power: –3 dBm, nominal
Typical Fibre Interconnect Length: 10 km minimum
Optical Inputs:
Compliance: SMPTE ST 297:2006 (as applicable)
Fibre Type: single mode
Wavelengths Supported: 1250 to 1650 nm
Receive Sensitivity: –17 dBm, nominal @ 2.97 Gb/s
Maximum Input Power: –3 dBm, nominal
Audio, Mic/Line Input to Mic/Line Output:
Frequency Response: 0/–0.35 dB, 20 Hz to 20 kHz
Distortion (THD N): 0.003%, measured at 1 kHz
Dynamic Range: 109 dB
Audio, Line/IFB Input to Line Output:
Frequency Response: ±1 dB, 20 Hz to 20 kHz
Distortion (THD N): 0.01%, measured at 1 kHz
Dynamic Range: 101 dB
Audio, 4-Wire Input to Party-Line Intercom Pin 3:
Frequency Response: ±1.25 dB, 100 Hz to 10 kHz (band limited for optimal performance)
Distortion (THD N): 0.02%, measured at 1 kHz
Dynamic Range: 99 dB
Party-Line Hybrids:
Topology: 3-section analog circuitry compensates for resistive, inductive, and capacitive 2-wire party-line loads
Nulling Method: automatic upon user initiation, processor implements digital control of analog circuitry; settings stored in non-volatile memory
Nulling Line Impedance Range: 120 to 240 ohms
Trans-Hybrid Loss: >45 dB, typical at 1 kHz
Data Transport:
Compatibility: full duplex RS-422 asynchronous (serial)
Rate: auto-sensing, 115.2 kb/s, maximum
GPI/GPO Transport:
GPI Input: 3.3 Vdc logic, activates on closure to system common
GPO Output: normally open, isolated, solid-state relay contact, 60 Vdc maximum, 400 mA maximum
Auxiliary Power Source: 5.5 Vdc, 40 mA maximum
Live-Link Jr. Truck End Unit Specifications

Line/IFB and 4-Wire Intercom Inputs:
Type: analog, electronically balanced, capacitor-coupled, 20 k ohms
Nominal Level: 4 dBu
Maximum Level: 24 dBu
De-Embed, Mic/Line, and 4-Wire Intercom Outputs:
Type: analog, electronically balanced, capacitor-coupled, intended to drive balanced loads of 2 k ohms or greater
Source Impedance: 200 ohms
Nominal Level: 4 dBu
Maximum Level: 24 dBu into 10 k ohms
Party-Line Intercom Interface:
Type: 2-channel party-line, unbalanced (common on pin 1, DC modulated with channel 1 audio on pin 2, channel 2 audio on pin 3)
Compatibility: dual-channel intercom system such as from RTS®
Nominal Audio Level: –10 dBu
Maximum Audio Output Level:
   Pin 2: 9 dBu
   Pin 3: 10 dBu
Output Voltage (Pin 2 to Pin 1): 29 Vdc, selectable on/off
Output Current (Pin 2 to Pin 1): 300 mA maximum; requires ?10 mA current draw for detection of connected device
Impedance (Pin 2 to Pin 1; Pin 3 to Pin 1), Local Party-Line Power Enabled: 200 ohms
Impedance (Pin 2 to Pin 1; Pin 3 to Pin 1), Local Party-Line Power Disabled: >10 k ohms
Connectors for Electrical Signals:
SDI: BNC, 3G-SDI optimised, gold plating on centre pin, per IEC 61169-8 Annex A
Line/IFB and 4-Wire Intercom Inputs: 3-pin female XLR
De-Embed, Mic/Line, Party-Line Intercom, and 4-Wire Intercom Outputs: 3-pin male XLR
Data, GPI/GPO, and Auxiliary DC: 9-pin female D-subminiature (DE-9F)
DC Input: 4-pin male XLR
AC Mains Input: 3-blade, IEC 320 C14-compatible (mates with C13)
Optical Connectors: two ST (UPC polish)
Power Inputs:
AC Mains: 100 to 240 V, 50/60 Hz, 24 W maximum
DC: 10 to 18 V, 2.0 A maximum
Dimensions (Overall):
19.00 inches wide (48.3 cm)
1.72 inches high (4.4 cm)
8.7 inches deep (22.1 cm)
Mounting: one space (1U) in a standard 19-inch rack
Weight: 3.9 pounds (1.8 kg)

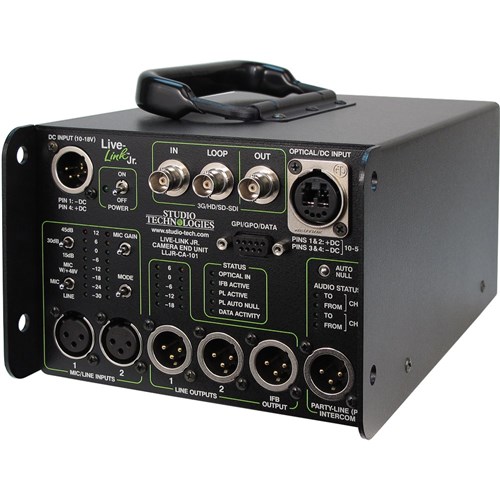

Live-Link Jr. Camera End Unit Specifications

Mic/Line Inputs:
Input Sensitivity: selectable for line level (unity gain), 15, 30 or 45 dB gain
Maximum Input Level: 24 dBu
Type: electronically balanced
Impedance: approximately 3 k ohms
CMRR: 61 dB at 60 Hz
Phantom Power: 48 Vdc, meets IEC 61938 P48 standard
Line Outputs:
Type: analog, electronically balanced, capacitor-coupled, intended to drive balanced loads of 2 k ohms or greater
Source Impedance: 200 ohms
Nominal Level: 4 dBu
Maximum Level: 24 dBu into 10 k ohms
IFB Output:
Type: 2-channel unbalanced (common on pin 1, DC modulated with channel 1 audio on pin 2, channel 2 audio on pin 3)
Nominal Audio Level: –10 dBu
Maximum Audio Output Level:
   Pin 2: 9 dBu
   Pin 3: 10 dBu
DC Output Voltage (Pin 2 to Pin 1): 28 V
DC Output Current (Pin 2 to Pin 1): 120 mA maximum
Impedance (Pin 2 to Pin 1; Pin 3 to Pin 1): 200 ohms
Party-Line Intercom Interface:
Type: 2-channel party-line, unbalanced (common on pin 1, DC modulated with channel 1 audio on pin 2, channel 2 audio on pin 3)
Compatibility: dual-channel intercom system such as from RTS®
Nominal Audio Level: –10 dBu
Maximum Audio Output Level:
   Pin 2: 9 dBu
   Pin 3: 10 dBu
Output Voltage (Pin 2 to Pin 1): 28 Vdc
Output Current (Pin 2 to Pin 1): 180 mA maximum; requires ?10 mA current draw for detection of connected device
Impedance (Pin 2 to Pin 1; Pin 3 to Pin 1): 200 ohms

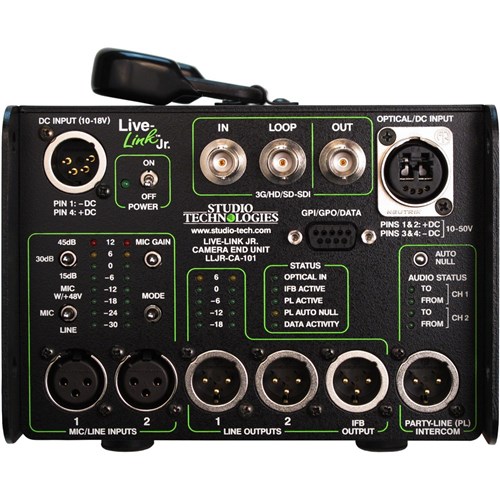

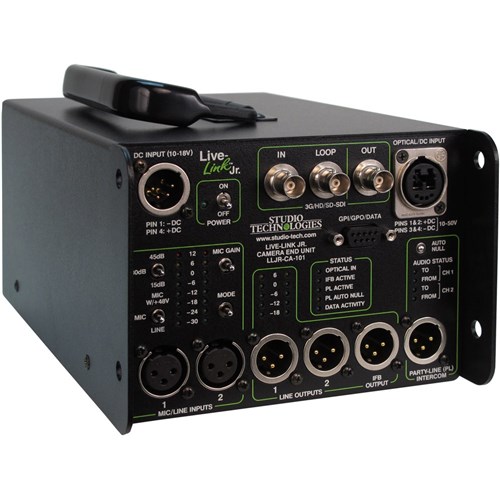

Connectors for Electrical Signals:
SDI: BNC, 3G-SDI optimised, gold plating on centre pin, per IEC 61169-8 Annex A
Mic/Line Inputs: 3-pin female XLR
Line, IFB, and Party-Line Intercom Outputs: 3-pin male XLR
Data, GPI/GPO, and Auxiliary DC: 9-pin female D-subminiature (DE-9F)
DC Input: 4-pin male XLR
Optical Connector(s): Neutrik® opticalCON DUO® or two ST (UPC polish), factory installed, selectable at time of order

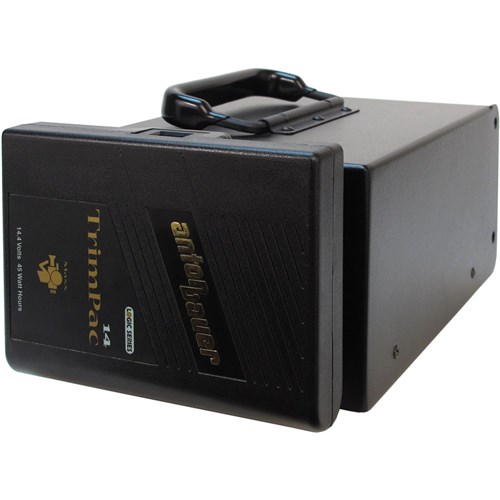

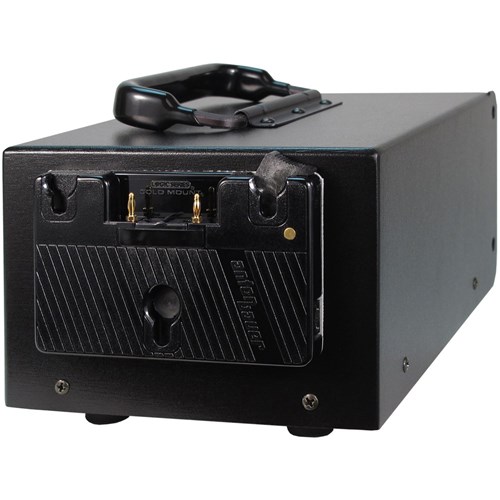

Battery Mounting: Anton/Bauer® QRC-Gold®, standard; IDX® P-V2 V-Mount, optional
Power Inputs:
DC (4-Pin XLR) and Battery Mount: 10 to 18 Vdc, 1.9 A maximum at 12 V; 2.1 A at 10 V
Copper/Optical Hybrid via opticalCON DUO: 10-50 Vdc, 0.54 A maximum with 48 V source and 500 feet (154 metres) of two 16 gauge copper conductors, maximum length TBD
Dimensions (Overall):
6.5 inches wide (16.5 cm)
5.7 inches high (14.5. cm)
10.4 inches deep (26.4 cm)
Weight: 5.5 pounds (2.5 kg)

Specifications subject to change without notice.
