JBL VTX-B35-VT Vertical Transporter for B35 and B35G

Product Code: JBL VTX-B35-VT

Key Features
  • Vertical transport cart for VTX B35
  • Compatible with VTX B35 and VTX B35G
  • Truck-friendly footprint
  • Integrated stacking features for efficient storage
  • Lightweight aluminum and steel construction
  • Heavy-duty tour-grade casters
  • Compatible with the VTX A12 VT GND outrigger system
Enquire Now
Qty Each (inc GST) Each
Estimated Lead time Contact Us
  • Features
  • Overview
  • Technical Specs
  • Documents

JBL VTX-B35-VT Vertical Transporter for B35 and B35G

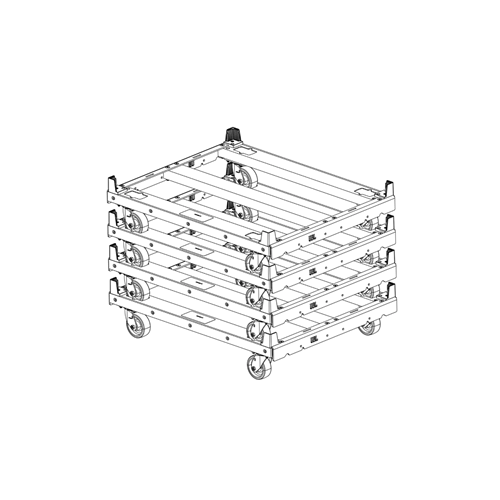

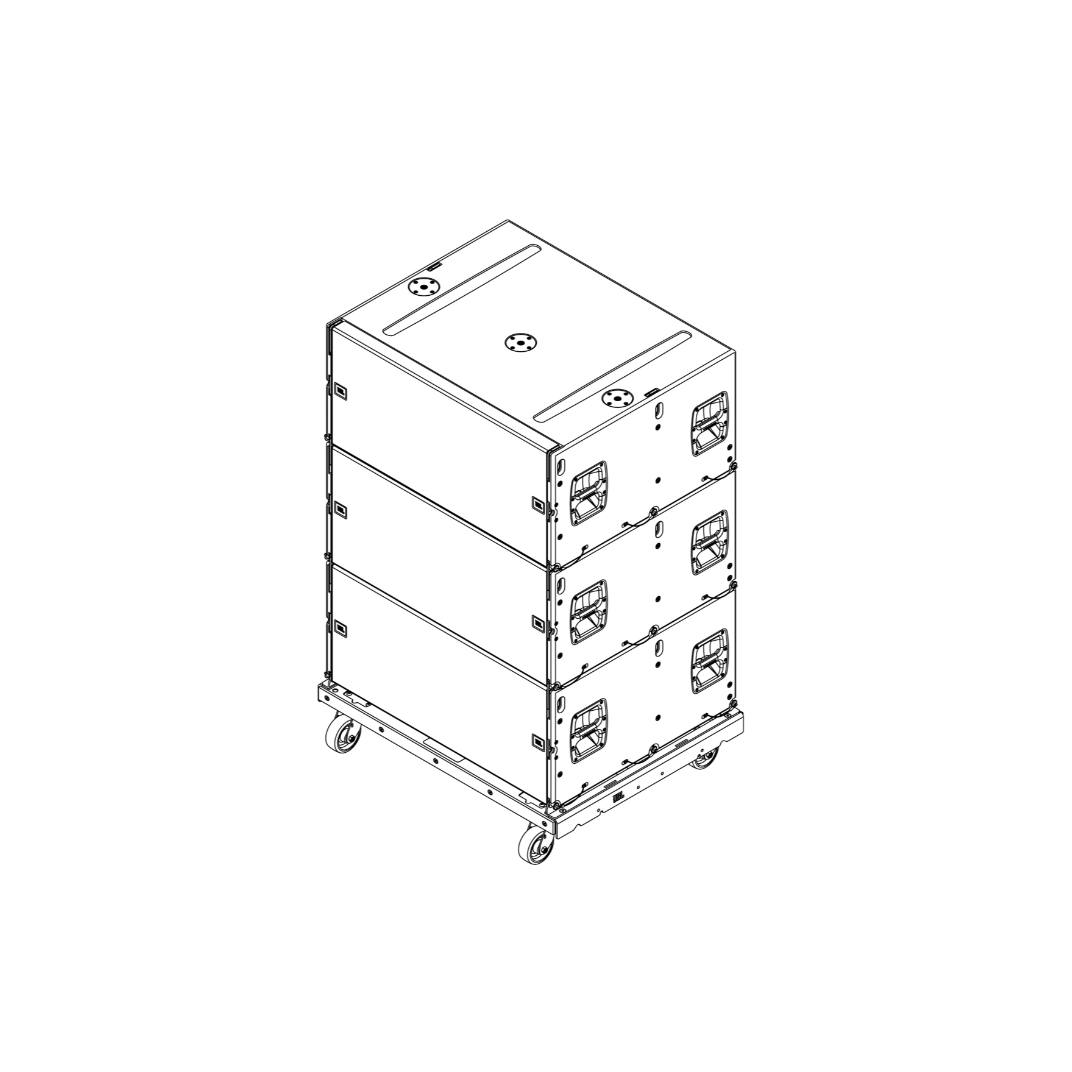

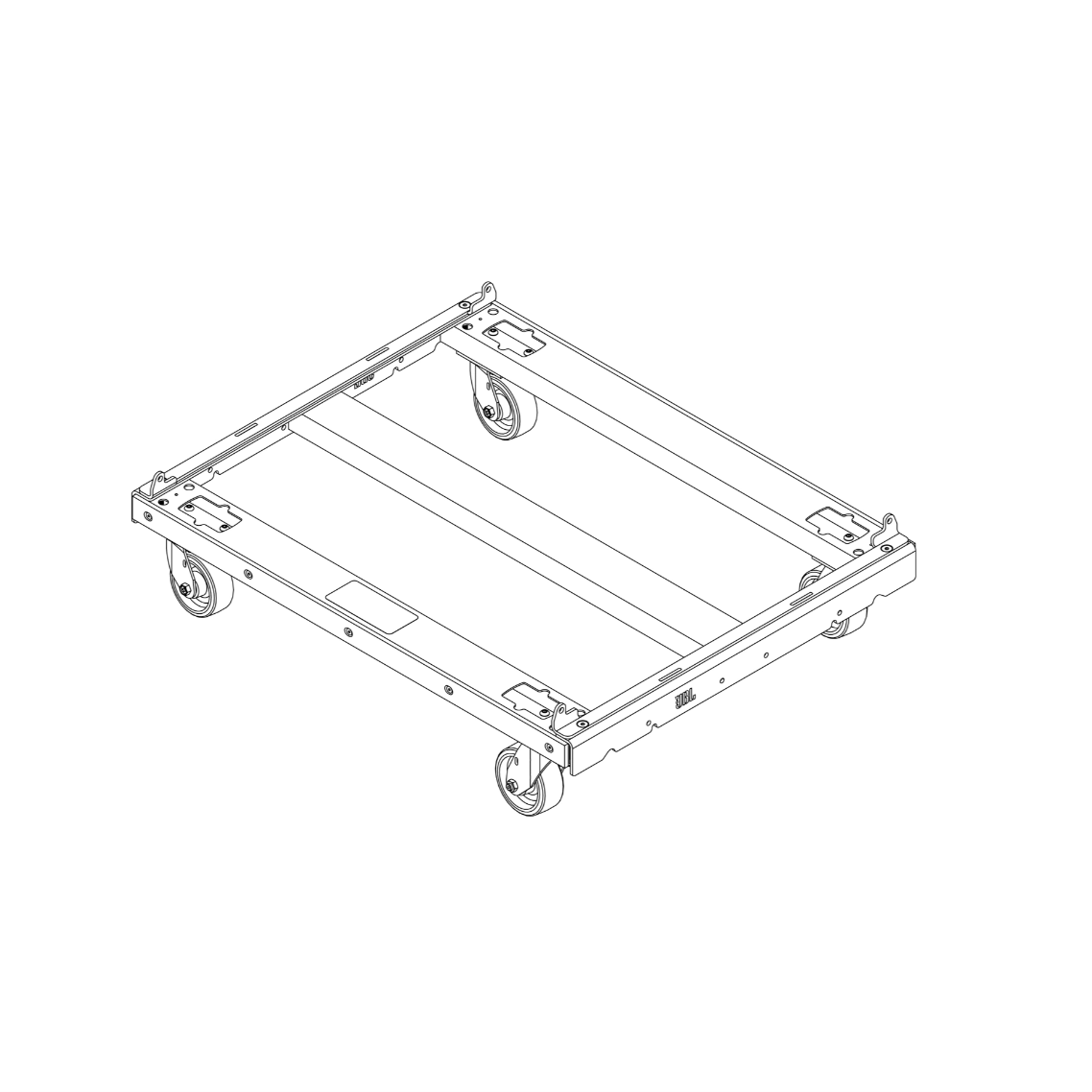

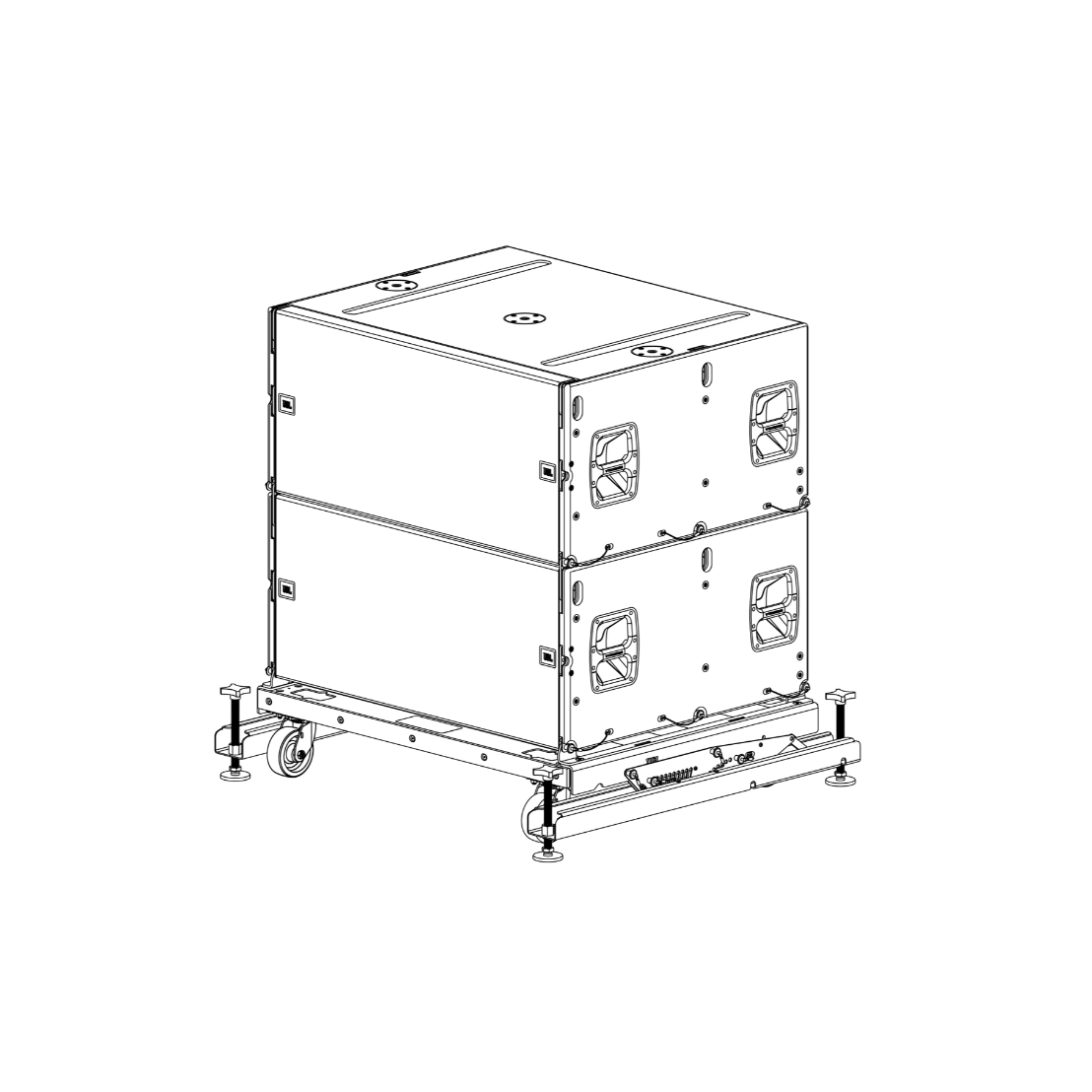

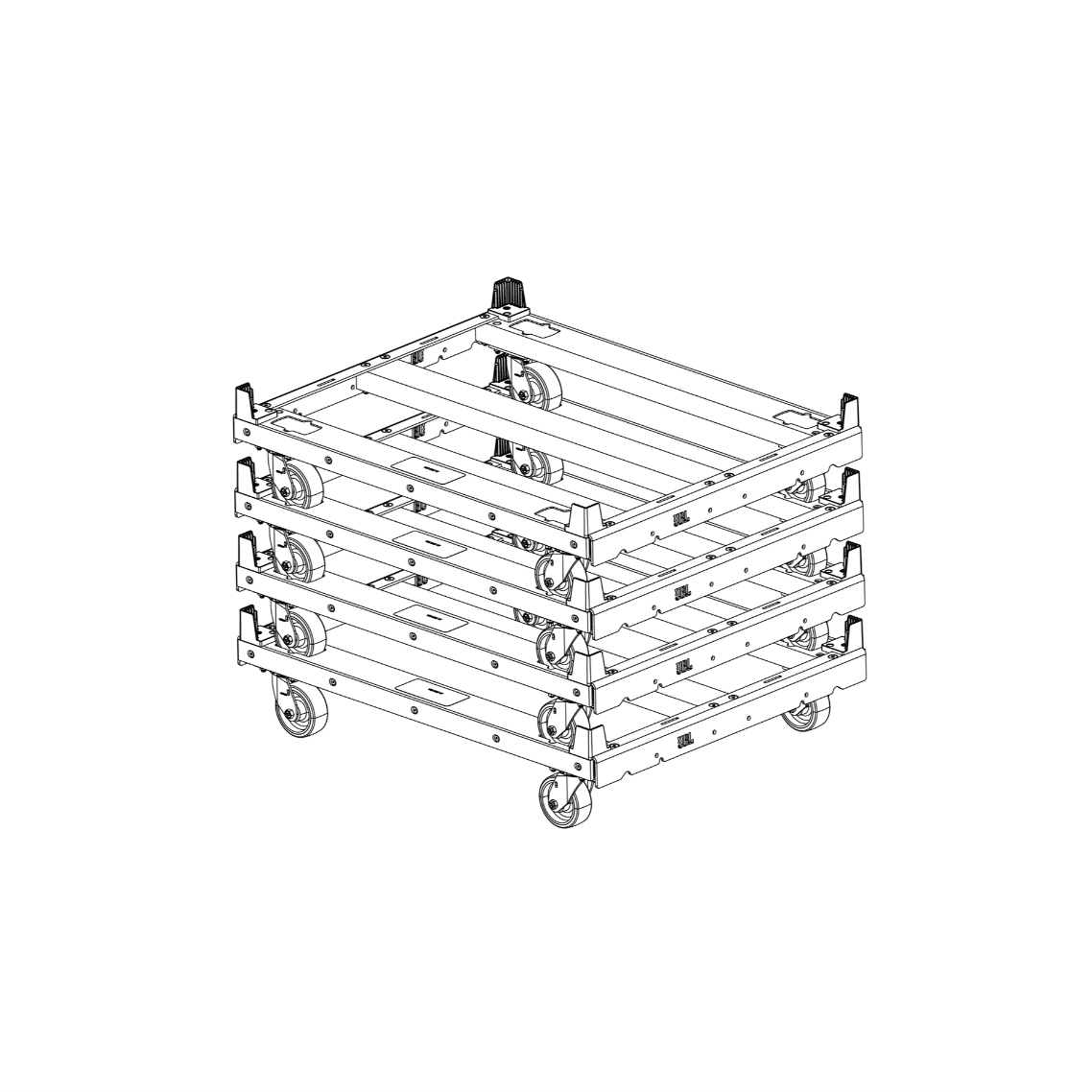

The VTX B35 VT Vertical Transporter is a lightweight, robust cart solution for transporting up to four VTX B35 or VTX B35G enclosures. Constructed from aluminum and steel, the VTX B35 VT measures 1143 mm (45 in) wide and 786 mm (31.1 in) deep. Its footprint is optimized for efficient truck packing alongside VTX A12 VT transporters, enabling efficient transportation and storage. Stacks of two, three, or four enclosures can be transported, and the VTX B35 VT CVR reinforced protective cover is available separately. Mounting points on each side of the transporter support attachment of the VTX A12 VT GND outrigger system, providing additional stability for taller B35 ground stacks and mixed ground-stacked configurations with B-Series subwoofers and compatible VTX full-range loudspeakers. The VTX B35 VT includes the brackets and hardware required to accommodate both VTX B35 and VTX B35G enclosures. A ratchet strap is also included for securing B35G enclosures during transportation.

Included:

  • (1) VTX B35 VT
  • (1) Bracket Set for VTX B35G
  • (1) Black Ratchet Strap
Warranty

We offer a 5 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Trade Terms
This item is a firm order product, meaning it cannot be cancelled or returned once the purchase order is processed, except in cases of defect. Please verify that part numbers and descriptions are accurate before placing your order. For any confirmation or additional information, please contact AV Sales at 1800 00 77 80.
Construction High-grade steel with anti-corrosion coating and aluminum
Finish Black powder coat, black anodized aluminum
Mechanical Limits. Maximum (4) VTX B35 or VTX B35G
Dimensions (H x W x D) 290 mm x 1143 mm x 909 mm
Net Weight
Configured for B35 30.6 kg
Configured for B35G 27.9 kg
Shipping Weight 43.3 kg
