JBL VTX-A8-MF Mini Frame

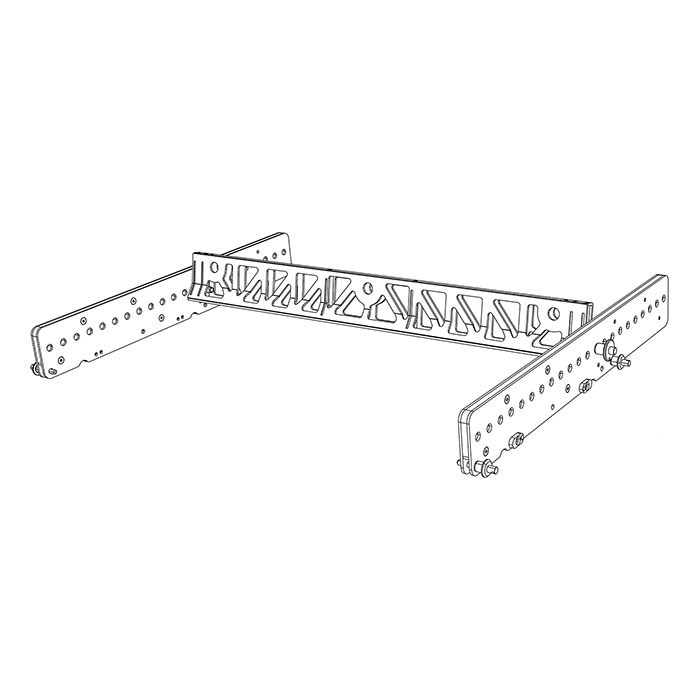

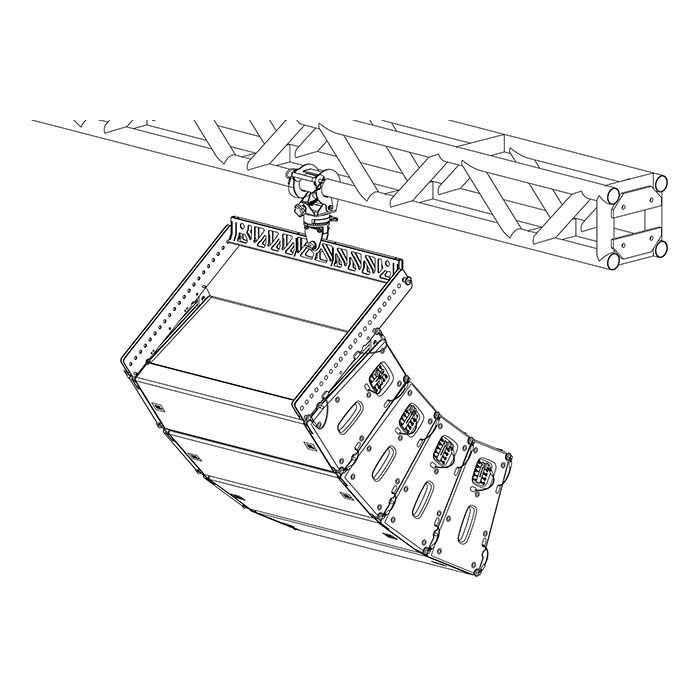

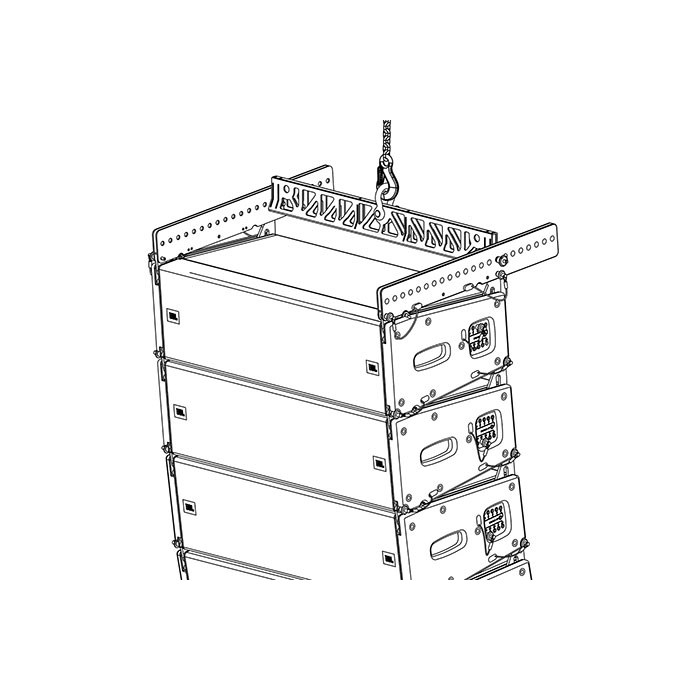

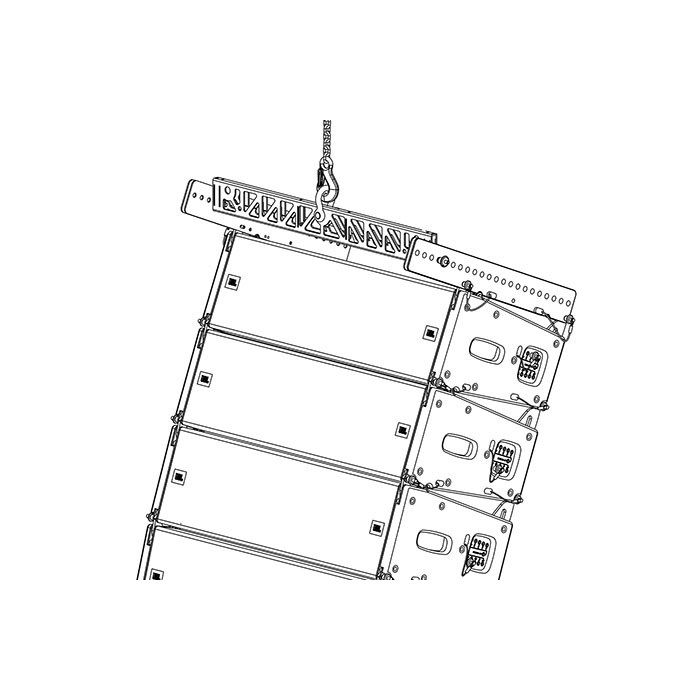

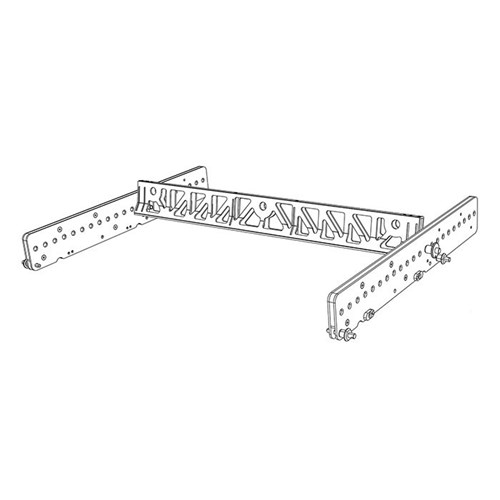

The VTX A8 MF mini frame is a lightweight, compact and inexpensive array frame used for suspending smaller VTX A8 and VTX B18 arrays. The mini frame was designed to work primarily with single-point or side-by-side suspension methods. For single-point applications, the mini frame can be used in conjunction with the VTX RC500 rotating clamp, allowing smaller VTX A8/B18 arrays to be suspended from standard size trusses or pipes. The side-by-side suspension points are especially useful when suspending VTX A8/B18 arrays from telescopic boom lifts. The three-piece design is comprised of two sidearms and one spreader-bar. The sidearms connect to the cabinets, and the spreader bar can be pinned to one of the 22 positions on the sidearms, providing excellent tilt resolution. The three pieces can be collapsed and pinned together for storage.
Included:
- (1) VTX A8 MF Mini Frame
- (2) 1/2 in Shackles
