JBL VRX928LA 8 inch Two-Way Line Array Loudspeaker System

Product Code: JBL VRX928LA

Key Features

8 inch Two-Way Line Array Loudspeaker System - Black

Enquire Now
Qty Each (inc GST) Each
In Stock
  • Features
  • Overview
  • Technical Specs
  • Documents

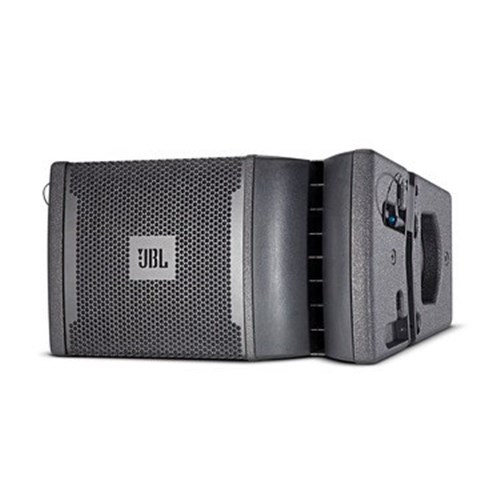

JBL VRX928LA 8" Two-Way Line Array Loudspeaker System

8 in. Two-Way Line Array Loudspeaker System

The VRX928LA is a lightweight (28 lb / 13 kg) compact 8" two-way linearray speaker system designed for use in arrays of up to six units.

Features

  • Constant Curvature Array - The waveguide mounts two compression drivers on a continuous arc enabling them to work together acoustically as if they were a single driver.
  • Amplitude Shading- Convenient series of switches on each enclosures that controls the output of each high frequency section in the array.
  • Suspension and Rigging.
  • Dual Angle Pole Socket - JBL's dual angle pole sockets allow great flexibility in aiming the enclosure
    (not on - WH version)
  • Differential Drive® Woofer.
Warranty

We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Trade Terms
This item is a firm order product, meaning it cannot be cancelled or returned once the purchase order is processed, except in cases of defect. Please verify that part numbers and descriptions are accurate before placing your order. For any confirmation or additional information, please contact AV Sales at 1800 00 77 80.
Power Rating 400 W / 800 W / 1600W
Frequency Range (-10dB) 70 Hz - 20 kHz
Dimensions (H x W x D) 230mm x 420mm x 270mm (9.0in x 16.5in x 10.5in)
Coverage Pattern 100 x 15 nominal
Frequency Response (±3 dB) 85 Hz - 19 Hz
Crossover Modes Bi-amp / passive,
Crossover Frequency 2.0 kHz
Net Weight (each) 12.7 kg (28 lb)
Inputs Neutrik® Speakon NL-4 (x2)
Outputs 1 x XLR
Enclosure Duraflex coated plywood
System Type Constant Curvature 8" Two-Way Line Array System
Maximum SPL (1m) 122 dB SPL peak (passive mode) LF: 122 dB (bi-amp mode) HF: 128 dB (bi-amp mode)
Nominal Impedance Passive = 8 ohm
Bi-amp LF = 8 ohm
Bi-amp HF = 16 ohm
LF Driver 1 x 200 mm (8 in) Differential Drive® woofer
HF Driver 2 x 25 mm (1.0 in) neodymium compression driver
Suspension / Mounting Dual 36 mm pole socket included. Suspension requires optional VRX-SMAF line array frame kit or M10 eyebolts.
