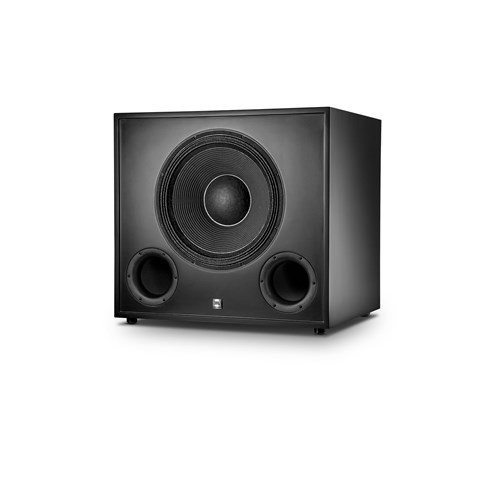

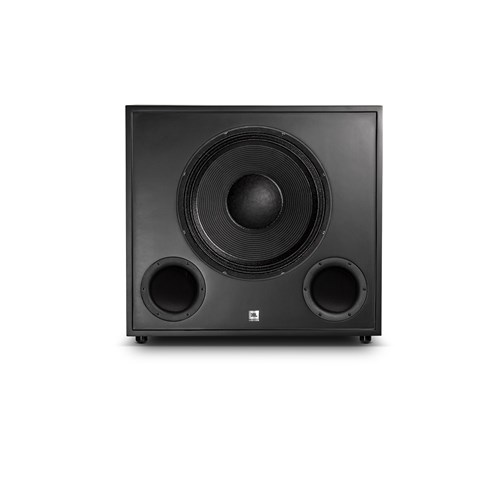

JBL SUB18 Studio Subwoofer

JBL's most powerful studio subwoofer with very high continuous output and extreme low frequency response.

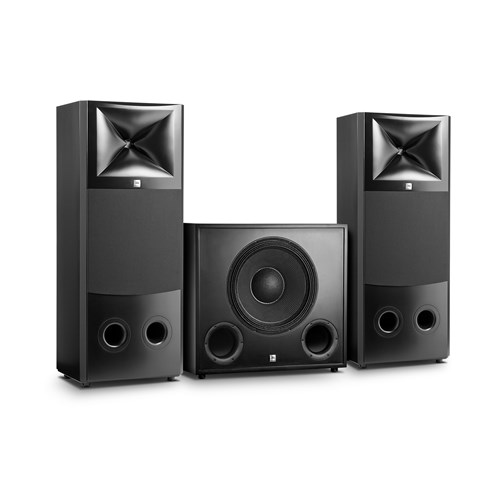

JBL introduces its most powerful studio subwoofer for applications in which very high continuous output and extreme low frequency response is required. With in-room response below 18Hz and 137 dB peak output, the SUB18 delivers unprecedented performance for demanding dance music production, while providing exceptional accuracy required in cinema post production applications. As an add-on to JBL’s M2 Master Reference Monitor system, the SUB18 allows three times greater output from the system.

Warranty

We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Trade Terms
This item is a firm order product, meaning it cannot be cancelled or returned once the purchase order is processed, except in cases of defect. Please verify that part numbers and descriptions are accurate before placing your order. For any confirmation or additional information, please contact AV Sales at 1800 00 77 80.
In-room response (2π) Below 18 Hz
Frequency Response, -10 dB (4π measurement) 20.6 Hz
Frequency Response, -6 dB (4π measurement) 23.1 Hz
Maximum Peak SPL 137 dB SPL
System Input Power Rating, AES/2 Hr.: LF 2000W continuous/8000W peak
Sensitivity 92dB @ 1m, 2.83 V
Amplifier Power Rating 3,500 to 4,000W into 8Ω
Recommended Signal Processing Crown iTech HD Power Amplification. Preset for use with JBL M2 available

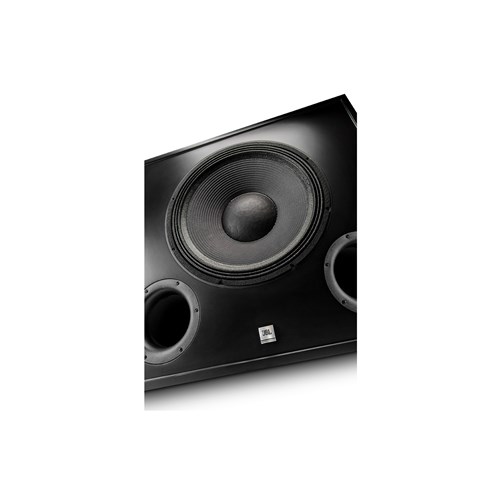

LF Driver One JBL model 2269H, 18-inch (457 mm); 100mm (4-inch) dual voice coils, dual neodymium magnets. Differential Drive® Direct Cooled™
Rated Impedance
Enclosure 18mm 11-ply Baltic Birch Plywood
Finish Black Lacquer

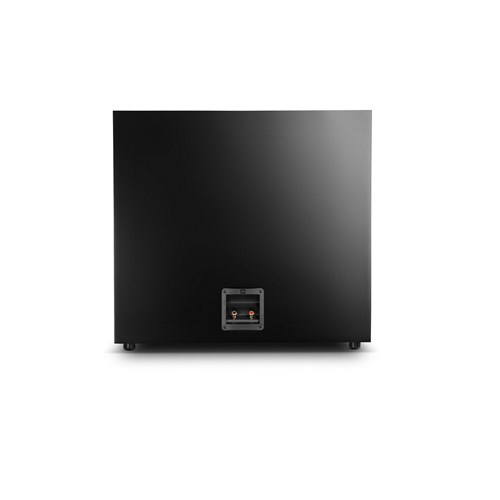

Input Connectors 2 ea. Push Terminals
Recommended Wire 12-Gauge
Dimensions HxWxD (including feet) 27 x 30 x 24 inches (685 x 762 x 620 mm)
Net Weight (each) 100 lbs ( 45 kg)
Frequency Response (±3 dB) 18 Hz @ 2π
