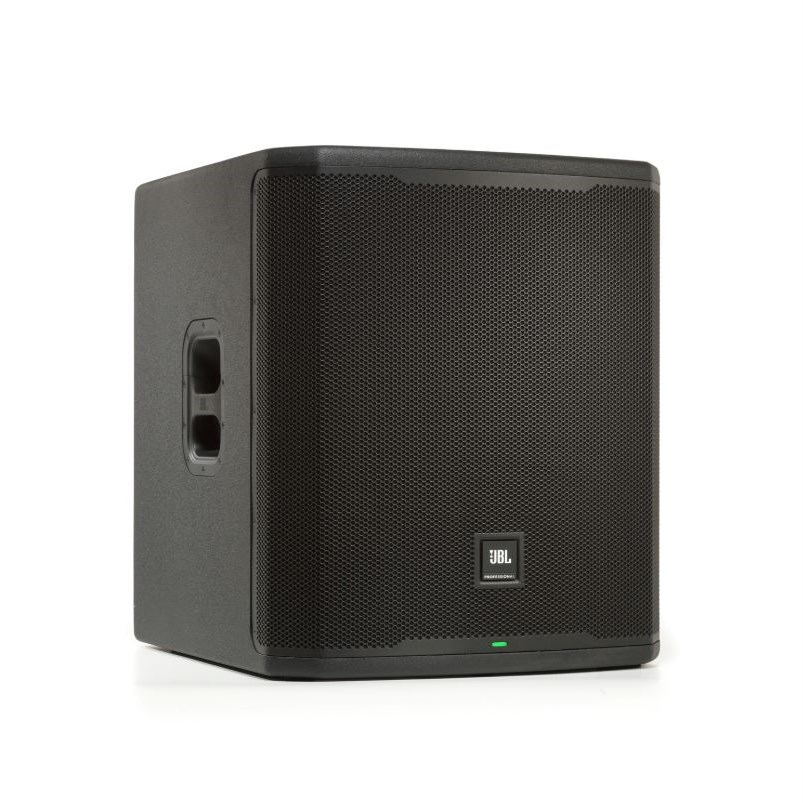

JBL PRX918XLF Professional Powered 2000W 18-inch Subwoofer with DSP and Bluetooth Control

Product Code: JBL PRX918XLF

Key Features
Transducer: 918SG 18 ferrite magnet woofer FEA flared port design reduces air noise and distortion Lightweight, efficient Class D amplification Power: 2,000 watts peak/1,000 watts RMS 18mm birch cabinet features optimized bracing for smooth low-frequency response Color LCD screen provides access to comprehensive DSP suite DriveRack Technology includes 180ms of speaker delay in 100-microsecond intervals for precise time-aligned systems JBL Pro Connect app allows full system control of up to 10 speakers and line integration with JBL EON ONE MK2, PRX ONE and EON700 systems Optimized presets for pairing with full-range speakers Two side handles Mount: M20 pole cup Cabinet features optimized bracing for smooth low-frequency response Quiet fanless operation Ultra-low system latency: <1ms
Enquire Now
Qty Each (inc GST) Each
Stock on order
  • Features
  • Overview
  • Technical Specs
  • Documents

JBL PRX918XLF Professional Powered 2000W 18-inch Subwoofer with DSP and Bluetooth Control

The PRX918XLF subwoofer, part of the JBL PRX900 Series powered loudspeakers and subwoofers, takes professional portable PA performance to a new level with advanced acoustics, comprehensive DSP, unrivaled power performance and durability and complete BLE control via the JBL Pro Connect app. The PRX900 Series is a versatile solution for DJs and bands, music venues, rental houses, corporate A/V providers, or anyone who needs durable professional systems that deliver powerful, room-filling sound in any portable or installed scenario.

This 18-inch powered subwoofer is built from the ground up to leverage JBL’s most advanced acoustic innovations. A next-generation driver—powered by an ultra-efficient Class D amplifier—delivers clear, defined bass with smooth low-frequency extension at maximum volume.

The PRX918XLF’s class-leading DSP package, accessible via onboard LCD or the JBL Pro Connect app, includes 6-band parametric EQ for system tuning and nuanced tonal control, plus a lowpass filter and 20ms delay.

The JBL Pro Connect app provides complete hardware and DSP control of up to 10 speakers; integrate with JBL EON ONE MK2, PRX ONE and EON700 systems, and access app-only functions including speaker snapshots and grouping.

The PRX918XLF is designed to withstand the rigors of the road, and is enclosed in an 18mm birch cabinet with optimized bracing for smooth low-frequency response and improved durability. Like with every JBL product, everything is reinforced by industry-leading test and validation protocols.









Warranty

We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Trade Terms
This item is a firm order product, meaning it cannot be cancelled or returned once the purchase order is processed, except in cases of defect. Please verify that part numbers and descriptions are accurate before placing your order. For any confirmation or additional information, please contact AV Sales at 1800 00 77 80.
Frequency Range (-10dB) 30 Hz – 110 Hz (2π)
Frequency Range (-3 dB) 35 Hz – 92 Hz (2π)
Coverage Pattern Omni
Transducer Impedence Rated: 4 Ω
Max SPL 134 dB @1m/2π
Power Rating 2000W peak / 1000W RMS
Cooling Natural Convection
No Fan
Crossover Frequency 80 Hz, 100 Hz, 120 Hz Selectable

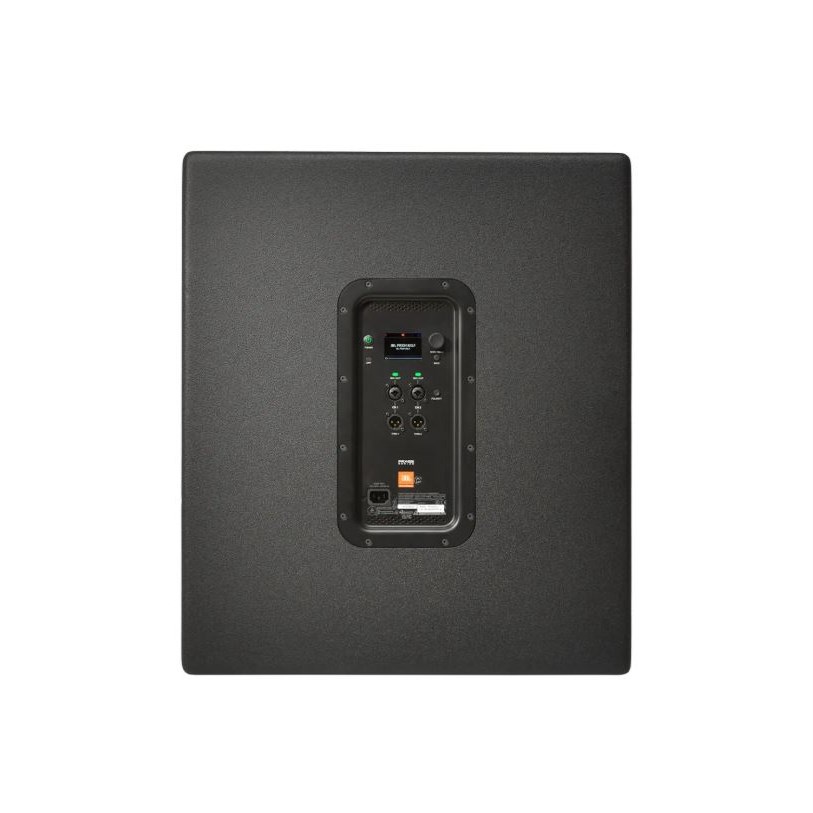

I/O x2 Combo Inputs
x2 XLR Pass Through Outputs

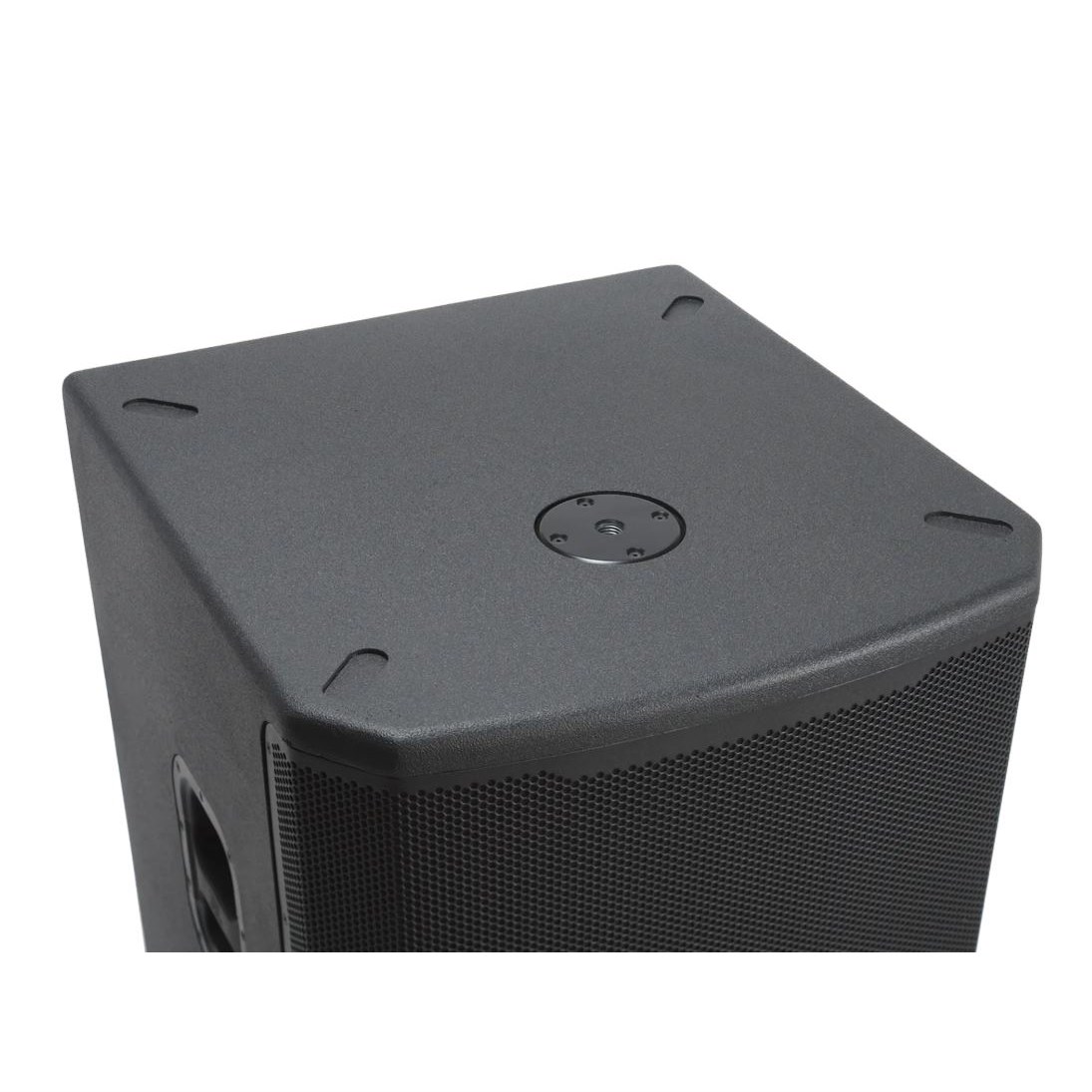

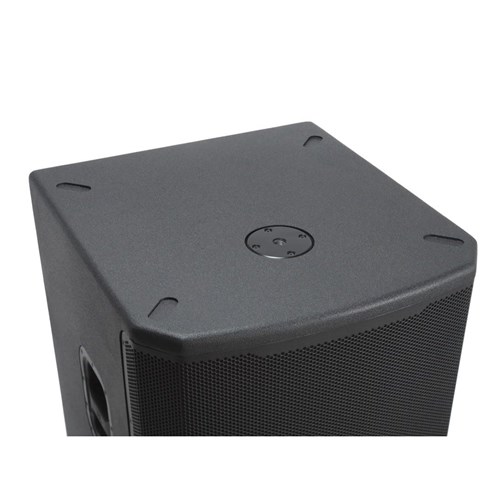

Suspension / Mounting Pole Mount on Top Surface
Product Dimensions (H x W x D) 693 x 591 x 654 mm (27.3 x 23.3 x 25.7 in)
Net Weight 40.7 kg (89.7 lbs)
