JBL LSR708P 7 Series 8 Inch Bi Amplified Studio Monitor

Product Code: JBL 708P

Enquire Now
Qty Each (inc GST) Each
Estimated Lead time 6-8 weeks
  • Features
  • Overview
  • Technical Specs
  • Documents

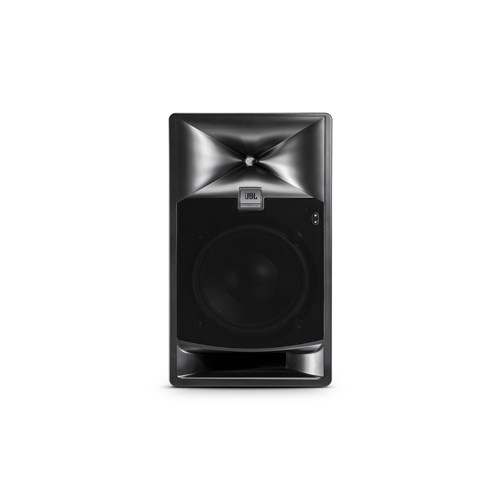

JBL LSR708P 7 Series 8-Inch Bi-Amplified Studio Monitor

8" Bi-Amplified Master Reference Monitor

JBL 708P is the self-powered reference monitor for critical music recording, film post and broadcast production applications. The 708P leverages new patent-pending driver technologies and JBL’s renowned Image Control Waveguide to deliver extraordinary output, stunning detail, an expansive soundstage, and greater accuracy in a broad range of rooms. 708P delivers several times the output of other comparably-sized studio monitors, providing significantly greater dynamic range and greater working distances.

"I'm really impressed by the power and clarity of these speakers."
- Academy Award Winner, Justin Hurwitz (La La Land)

Features

  • Next-generation JBL driver technology
  • Patent-pending Image Control Waveguide
  • Integrated dual amplification system with internal floating-point DSP
  • Comprehensive room EQ and delay controls
  • Compact enclosures for easy placement and installation

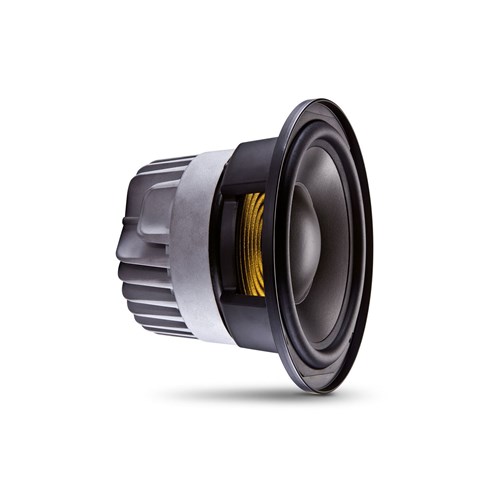

  • JBL 728G low-frequency transducer with patented Differential Drive® allows extended low frequency with low distortion and high SPL

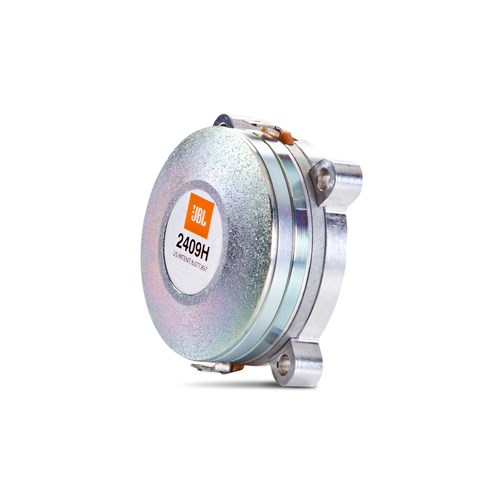

  • JBL 2409H high-frequency transducer with low-mass annular diaphragm
  • JBL-designed patent-pending Image Control Waveguide
  • 2-channel Class-D amplifier HF 250W / LF 250W
  • 192 kHz 32-bit floating point processing
  • 12 bands of Room EQ, 8 Bands of User EQ
  • 6 factory presets, 6 user-defined presets
  • 18 milliseconds of Room Delay, 150 milliseconds of AV Sync Delay
  • 1 x XLR-1/4" balanced combination analog audio input
  • 1 x XLR AES3 format digital input with 1 x XLR pass-through output
  • Digital input will accept sample rates of up to 192 kHz
  • User enabled sample rate converters
  • RJ-45 network connection for Harman HiQnet connectivity

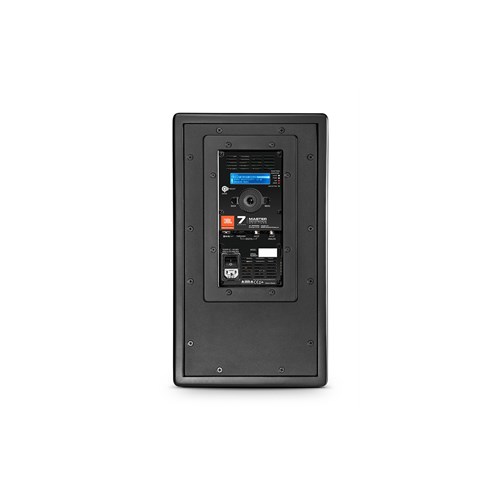

  • Rear-panel multi-function controls and LCD display allow selection of ofinput sensitivity, input trim, Room EQ, User EQ, Room Delay, AV Sync Delay
  • Integrated handles
  • Top and bottom mounting points; birch plywood cabinets reinforced for safe mounting
  • Protective steel grilles
  • Integrated amplification and digital signal processing (DSP) for room EQ
  • JBL 7 Series and JBL M2 Master Reference Monitors can be combined for multi-channel systems in any size room
  • Compact enclosures and mounting hardware allow versatile mounting options and unobstructed sight lines
  • HARMAN HiQnet™ port enables feature updates as they become available
  • Also available: JBL 7 Series i externally powered install models and the JBL Intonato 24 Monitor Management Tuning System for complete scalable monitoring solutions for multi-channel and immersive audio environments
  •
Warranty

We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Trade Terms
This item is a firm order product, meaning it cannot be cancelled or returned once the purchase order is processed, except in cases of defect. Please verify that part numbers and descriptions are accurate before placing your order. For any confirmation or additional information, please contact AV Sales at 1800 00 77 80.
Frequency Response (±3 dB) 41Hz-25kHz
Frequency Range 35Hz – 36 kHz
Maximum Continuous SPL (80 Hz - 20 kHz) >108 dB SPL / 1m
Maximum Peak SPL (80 Hz - 20 kHz) >114 dB SPL / 1m
HF Driver 2409H
LF Driver 728G - 8in (203mm)
Dividing Network Transition Frequency 1.7 kHz
Input Connectors 1 x XLR balanced analog audio input
1 x XLR AES3 format digital input with
1 x XLR pass-through output
Digital input will accept sample rates up to 192 kHz
Dimensions (HxWxD) 17.25 x 9.75 x 11.5 in (438 x 248 x 292 mm)
Net Weight (each) 25.2 lb (11.5 kg)
Enclosure Birch plywood reinforced for mounting
Mounting Top, bottom and rear mounting points. 4-hole mounting pattern
LF Driver Power Handling 250W Class D
Amplifier Power Rating 250W
