JBL JRX218S 18 Inch Passive Compact Subwoofer

Product Code: JBL JRX218S

Enquire Now
Qty Each (inc GST) Each
In Stock
  • Features
  • Overview
  • Technical Specs
  • Documents

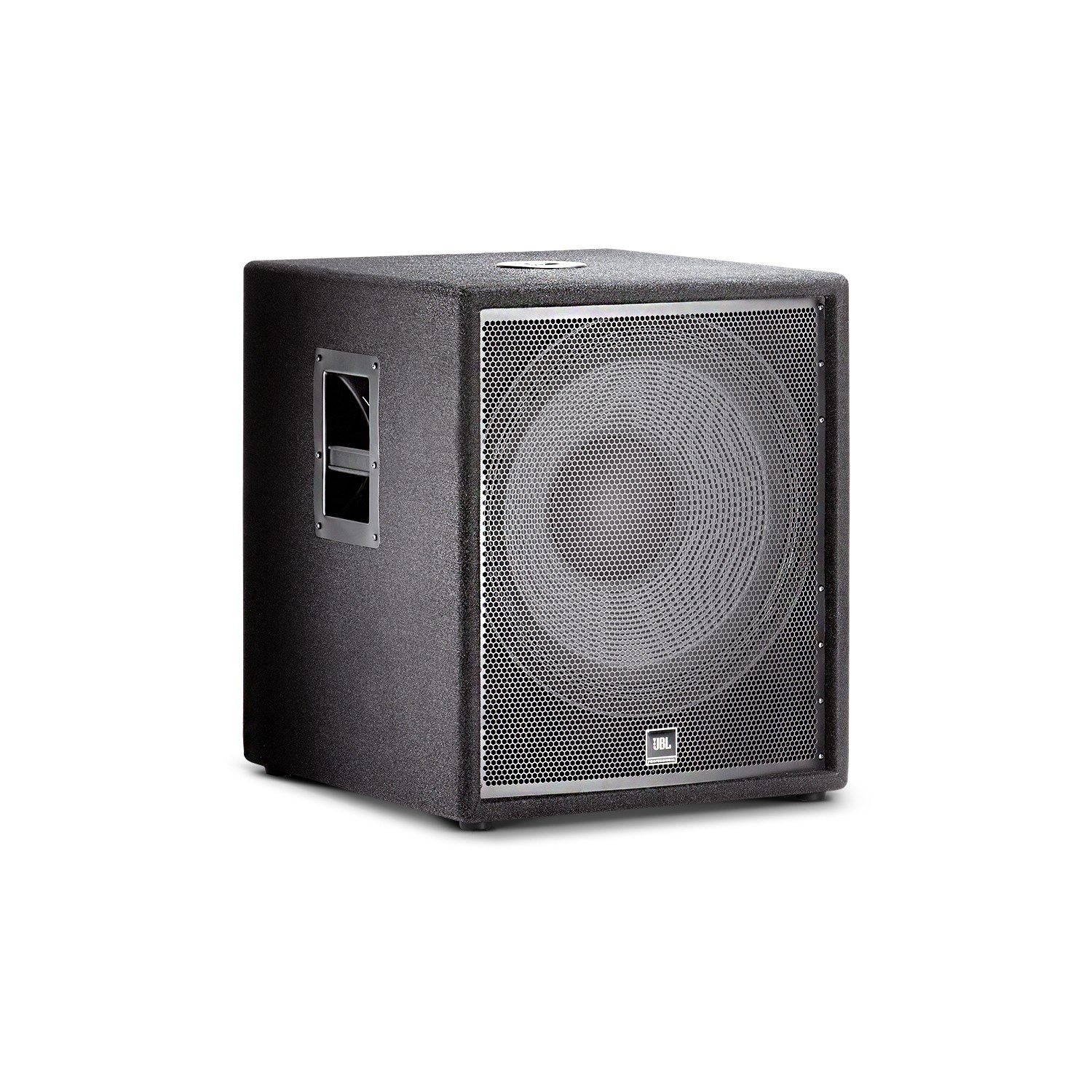

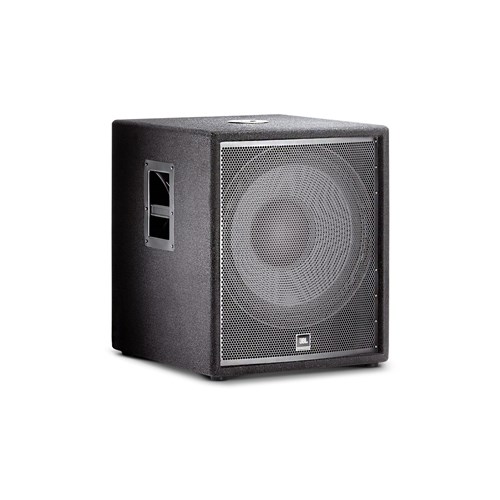

JBL JRX218S 18" Passive Compact Subwoofer

18" Compact Subwoofer

The JRX218S is driven by a massive JBL 18" woofer with a cast frame and 3" voice-coil.

Features

  • 18 in. compact subwoofer.
  • 350 W (continuous), 1400 W (peak) power capacity.
  • The rugged enclosure is constructed from 19 mm (.75 in) MDF (Medium Density Fiberboard) using advanced adhesives and mechanical fastener technology for durability and improved low-frequency performance. The enclosure is covered in black carpet.
  • A top mounted, cast aluminum 35 mm pole mount receptacle can receive an optional SS3BK pole to facilitate use of the JRX218S as a base for a midhigh speaker cabinet.
  • Non-resonant, all steel handles are used.
  • Attractive 18-gauge perforated steel grille protects components from damage.
Warranty

We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Power Rating 350 W / 1400 W
Frequency Range (-10dB) 34 Hz - 250 Hz
Frequency Response (±3 dB) 53 Hz - 250 Hz
Sensitivity (@1m) 98 dB SPL
Nominal Impedence 4 ohms
Recommended Amplifier Power 350 W to 700 W into 4 ohms
Maximum SPL (1m) 133 dB
Dimensions (H x W x D) 605 mm x 508 mm x 551 mm (23.5 in x 20.3 in x 22 in)
Net Weight 32.2 kg (71 lb)
LF Driver M118-4

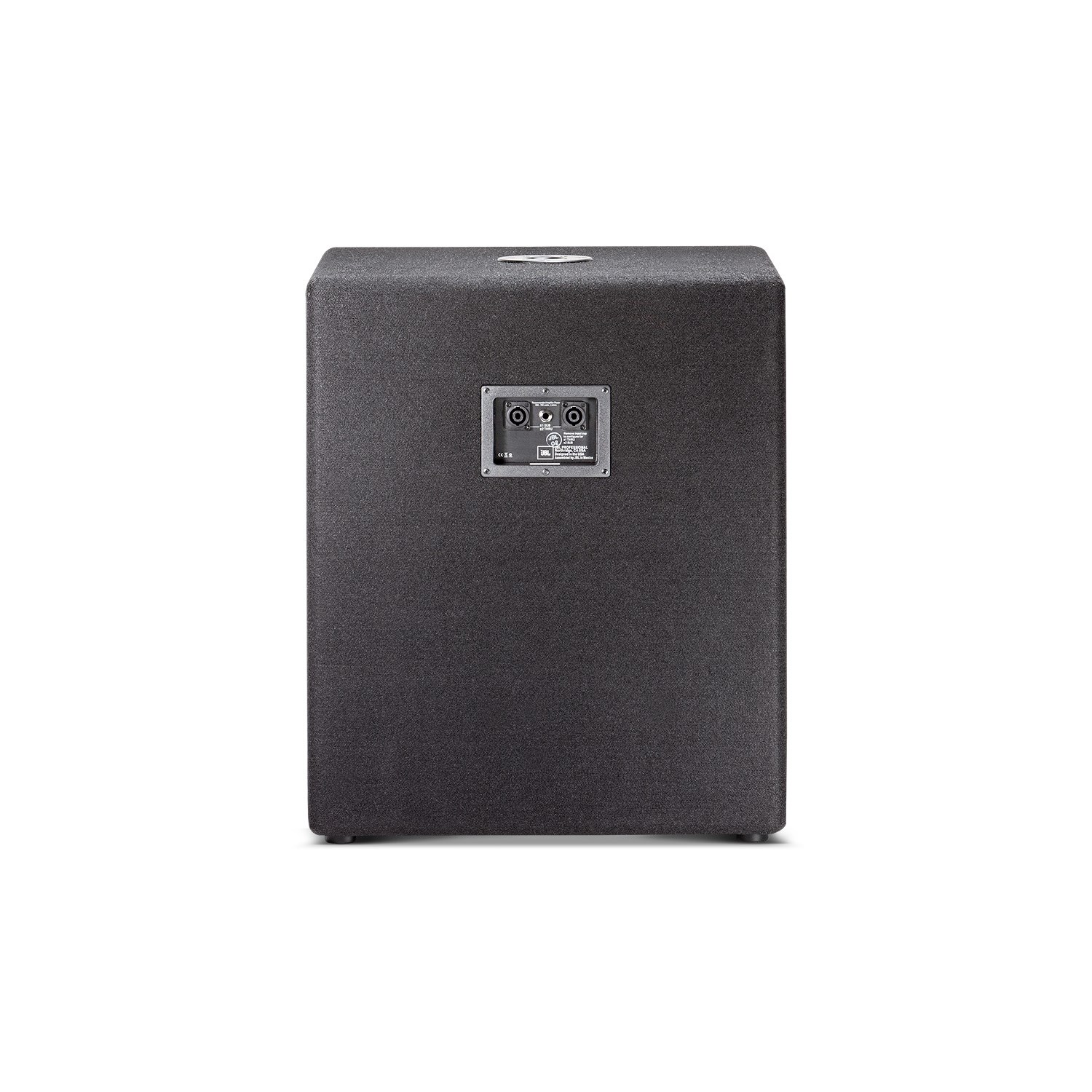

Inputs Neutrik® Speakon® NL-4 (x2); parallel
Enclosure MDF (Medium Density Fiberboard) covered in black carpet.
