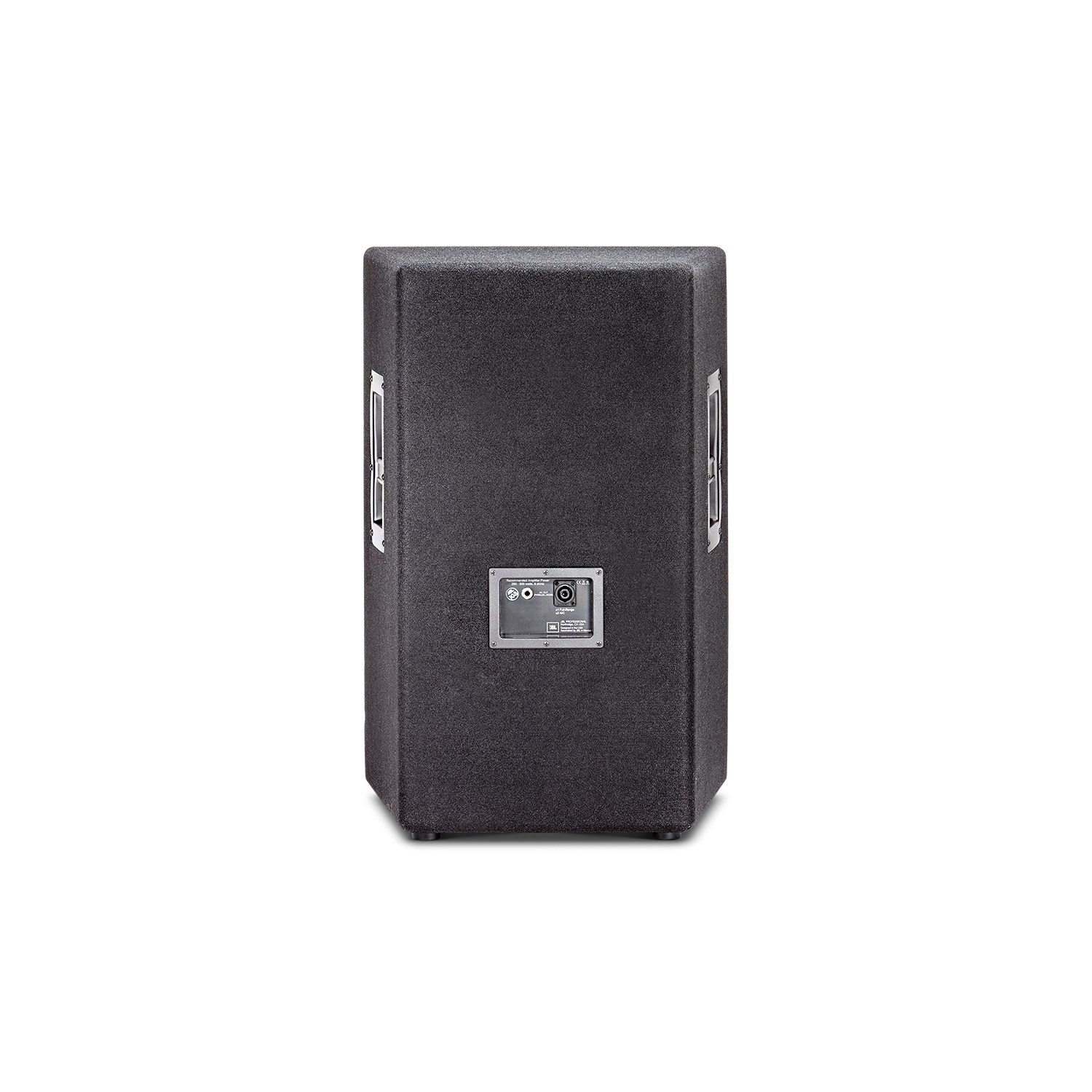

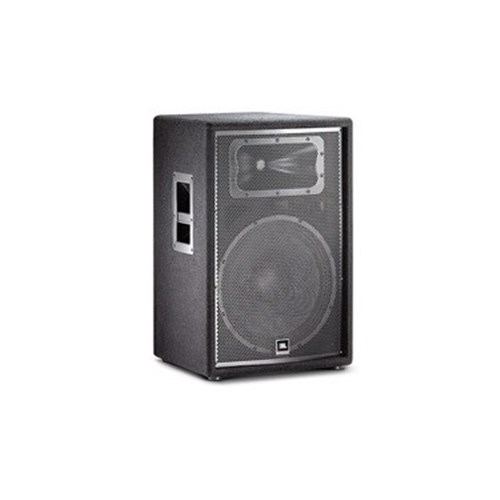

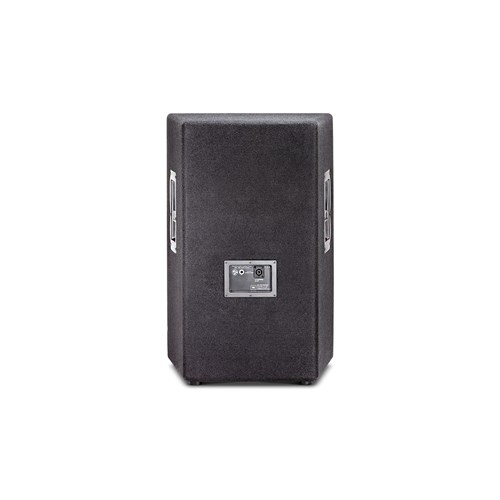

JBL JRX215 15 Inch Two Way Front Of House Passive Speaker

Product Code: JBL JRX215

Key Features

Features

  • JBL 15 in low frequency driver with a 64 mm (2.5 in) diameter edgewound ribbon voice coil which provides more cross-sectional wire area in the voice coil gap than round wire designs, for greater efficiency and power handling.
  • JBL 2414H-C 25 mm (1 in ) polymer diaphragm compression driver improves high frequency performance as well as system reliability.
  • The advanced network topology crossover design shapes the frequency response to deliver coherent summation in the crossover region.
  • High-voltage capacitors and inductors with massive cores and heavy gauge wire enable the crossover network to handle high power without saturating.
  • Progressive Transition™ high frequency waveguide provides superior coverage control, reduced distortion, and smoother frequency response.
Enquire Now
Qty Each (inc GST) Each
Stock on order
  • Features
  • Overview
  • Technical Specs
  • Documents

JBL JRX215 15" Two-Way Front Of House Passive Speaker

Two-Way Sound Reinforcement Loudspeaker System

This trapezoidal, 15" speaker system is at home in live sound, dance music and speech reinforcement.

Additional Features:

  • The rugged, acoustically superior enclosure is constructed from 19 mm (.75 in ) MDF (Medium Density Fiberboard) using advanced adhesives and mechanical fastener technology for extreme durability and improved low-frequency performance.
  • SonicGuard™ protects the high frequency driver from excess power without interrupting the performance.
  • Non-resonant, all-steel handles are used.
  • Attractive 18-gauge perforated, steel grille protects components from damage.
  • Dual-angle pole-mount socket allows the speakers to tilt 10° for more uniform audience coverage.
Warranty

We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Trade Terms
This item is a firm order product, meaning it cannot be cancelled or returned once the purchase order is processed, except in cases of defect. Please verify that part numbers and descriptions are accurate before placing your order. For any confirmation or additional information, please contact AV Sales at 1800 00 77 80.
Power Rating 250 W / 1000W
Frequency Range (-10dB) 41 Hz - 18 kHz
Frequency Response (±3 dB) 59 Hz - 13 kHz
Sensitivity (@1m) 99 dB SPL (1w/1m)
Nominal Impedance 8 ohms
Recommended Amplifier Power 250 W to 500 W into 8 ohms
Maximum SPL (1m) 129 dB
Nominal Dispersion 90º x 50º
Crossover Frequency 2.2 kHz
Dimensions (H x W x D) 699 mm x 460 mm x 432 mm (27.5 in x 18.1 in x 17 in)
Weight 27.4 kg (60.5 lb)
HF Driver JBL 2414H-C , 1"" exit compression driver mounted on Progressive Transition™ Waveguide
LF Driver JBL M115-8A
Inputs Neutrik® Speakon® NL-4 (x1); .25in TS phone jack (x1); parallel
Enclosure MDF (Medium Density Fiberboard) covered in black carpet.
