JBL IRX ONE All-in-One Column PA with Built-In Mixer and Bluetooth Streaming

Product Code: JBL IRXONE

Key Features
  • C-shaped array of six 2" tweeters delivers superior clarity and rich sound
  • 8" woofer with bass-reflex design generates natural, smooth low end, down to 40 Hz
  • Frequency response: 40 Hz - 20 kHz
  • Built-in 3-channel mixer
  • Fixed bass and treble control, Automatic Feedback Suppression (AFS), phantom power, and system tuning presets
  • Soundcraft Easy Ducking automatically turns down music when speech is detected
  • I/O includes 1/4" and XLR inputs with included 48V phantom power and 1/4" balanced mix-out
  • Bluetooth 5.0 audio streaming
  • Column spacers and array cabinet conveniently fit into back of base unit
  • Speaker automatically adjusts tuning depending on how many spacers are used for optimum sound performance
  • Easy to carry with one hand; sets up and tears down in seconds
  • Ergonomically-optimized carry handle minimizes wrist strain
  • Road-tough, lightweight cabinet
Enquire Now
Qty Each (inc GST) Each
In Stock
  • Features
  • Overview
  • Technical Specs
  • Documents

JBL IRX ONE All-in-One Column PA with Built-In Mixer and Bluetooth Streaming

The JBL IRX ONE All-in-One Column PA features an advanced acoustic package, 3-channel mixer and Bluetooth 5.0 audio streaming – all packed into an incredibly easy-to-use system that can be carried with one hand.

Boasting legendary JBL fidelity and performance, IRX ONE utilizes concert line array-inspired directivity control, resulting in a custom-tuned, C-shaped array. Featuring six 2” high-frequency drivers, the array delivers rich clarity, a wide sweet spot and seamless front-to-back coverage. The advanced 8” woofer features a bass-reflex design that ensures low-frequency response down to 40 Hz.

Designed to support a range of different users, IRX ONE features a 3-channel mixer that supports the most popular connections, including ¼” and XLR inputs with included 48V phantom power and ¼” balanced mix-out. dbx automatic feedback suppression (AFS), 5 EQ presets, Soundcraft audio ducking, and Bluetooth 5.0 audio streaming ensure a professional experience from start to finish.

IRX ONE was created to be so simple-to-use that anyone from educators and presenters to hospitality or house of worship users can feel comfortable and confident using the system. Musicians, buskers and singer/songwriters also appreciate the plug-and-play design that gets them up and running and sounding great, right away.

Advanced Acoustic Technology and Seamless Coverage

IRX ONE utilizes concert line array-inspired directivity control, resulting in a custom-tuned, C-shaped array. Featuring six 2” high-frequency drivers, the array delivers rich clarity, a wide sweet spot and seamless front-to-back coverage. The advanced 8” woofer features a bass-reflex design to ensure low-frequency response down to 40 Hz.

Ergonomically-Optimized Design

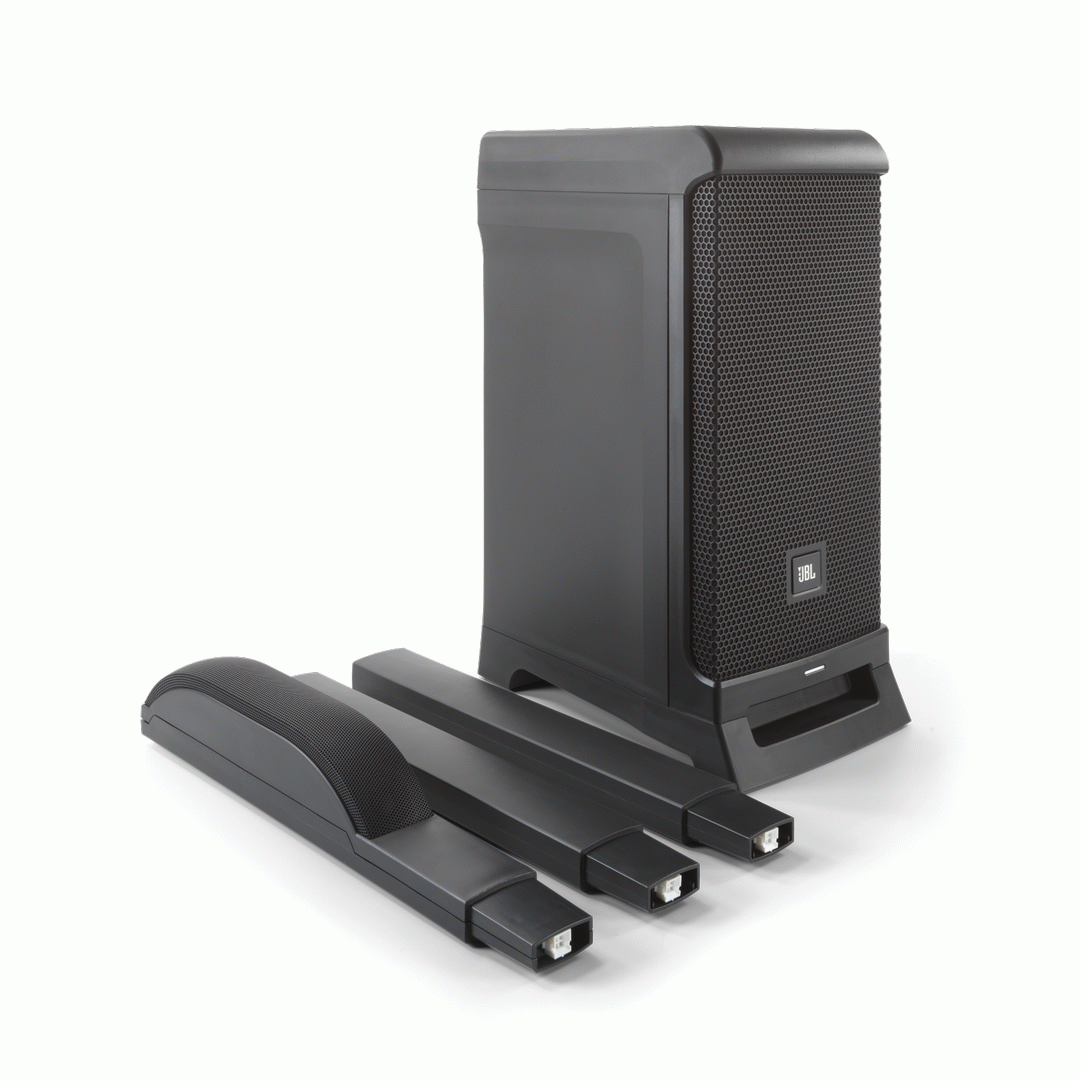

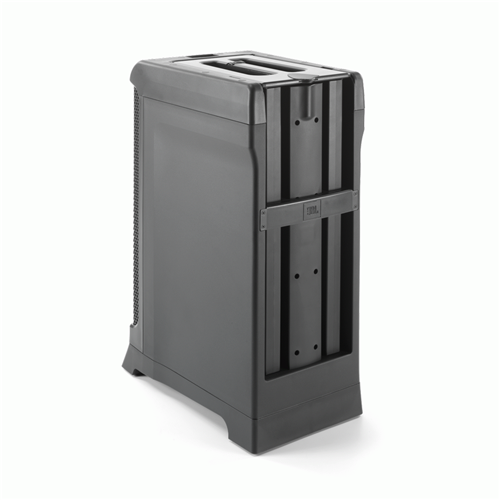

IRX ONE is easy to carry with one hand; sets up and tears down in seconds; and the ergonomically-optimized carry handle minimizes wrist strain. Additionally, column spacers and the array cabinet conveniently fit into the back of the base unit.

Simple-to-Manage 3-Channel Mixer

IRX ONE features a 3-channel mixer that supports the most popular connections, including ¼” and XLR inputs with included 48V phantom power and ¼” balanced mix-out. dbx automatic feedback suppression (AFS), 5 EQ presets and Soundcraft audio ducking ensure a professional experience from start to finish.

Integrated Bluetooth 5.0 Audio Streaming

Using the latest Bluetooth 5.0 audio streaming chipset, IRX ONE delivers premium audio performance and long-distance streaming.

Built for Durability

IRX ONE is built for long-lasting durability that includes JBL’s rigorous 100-hour stress test, stringent road tests, and a complete three-year warranty.

Common Applications

JBL IRX ONE was created to be so simple-to-use that anyone from educators and presenters to hospitality or house of worship users can feel comfortable and confident using this system. Musicians, buskers and singer/songwriters also appreciate the plug-and-play design that gets them up and running and sounding great, right away.







Warranty

We offer a 3 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

  • SYSTEM TYPE: Powered Column PA Speaker
  • WOOFER SIZE: 8 Inch
  • TWEETER SIZE: 2 Inch
  • TWEETER COUNT: 6
  • MAX SPL: 118dB(peak)
  • FREQ RANGE -10: 40Hz ~ 20KHz @ 4pi
  • FREQ RANGE -3: 50Hz ~ 18KHz @ 4pi
  • HOR DISPERSION: 160°
  • VERT DISPERSION: 80°
  • POWER RATING: 1300W Peak
  • AC POWER INPUT: 100V - 120V or 220 - 240V
  • INPUT IMPEDENCE:
    • 4.4kΩ Input Mic,
    • 1MΩ balanced Hi-Z Jack
  • INPUT GAIN MIC: 55dB
  • INPUT GAIN HI Z: 48dB
  • CROSSOVER FREQ: 260Hz
  • I/O: 2 - Mic/line XLR Combo
    • 1 - HiZ In - 6.3mm jack
    • 1 - Mix Out - 6.3mm jack
    • 1 - Bluetooth SBC
  • CABINET: PP
  • GROSS WEIGHT: 18.39kg(40.5 lbs)
  • NET WEIGHT: 15.5 kg (34.1 lbs)
  • PRODUCT DIMS: (L x W x H): 267 x 400 x 597 mm (10.5 x 15.73 x 23.5 in)
  • SHIPPING DIMS: (L x W x H): 395 x 519 x 725 mm (15.6 x 20.4 x 28.6 in)
