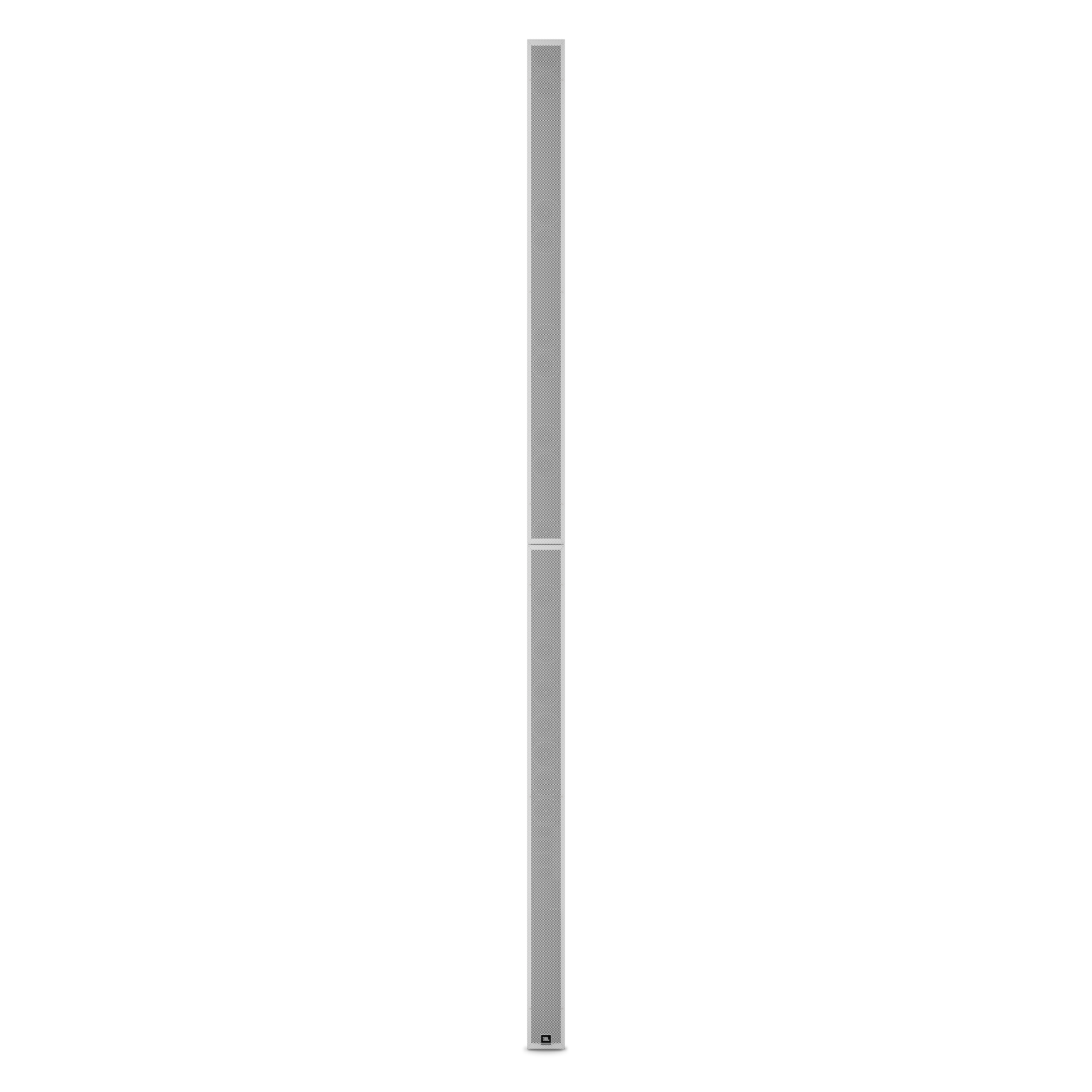

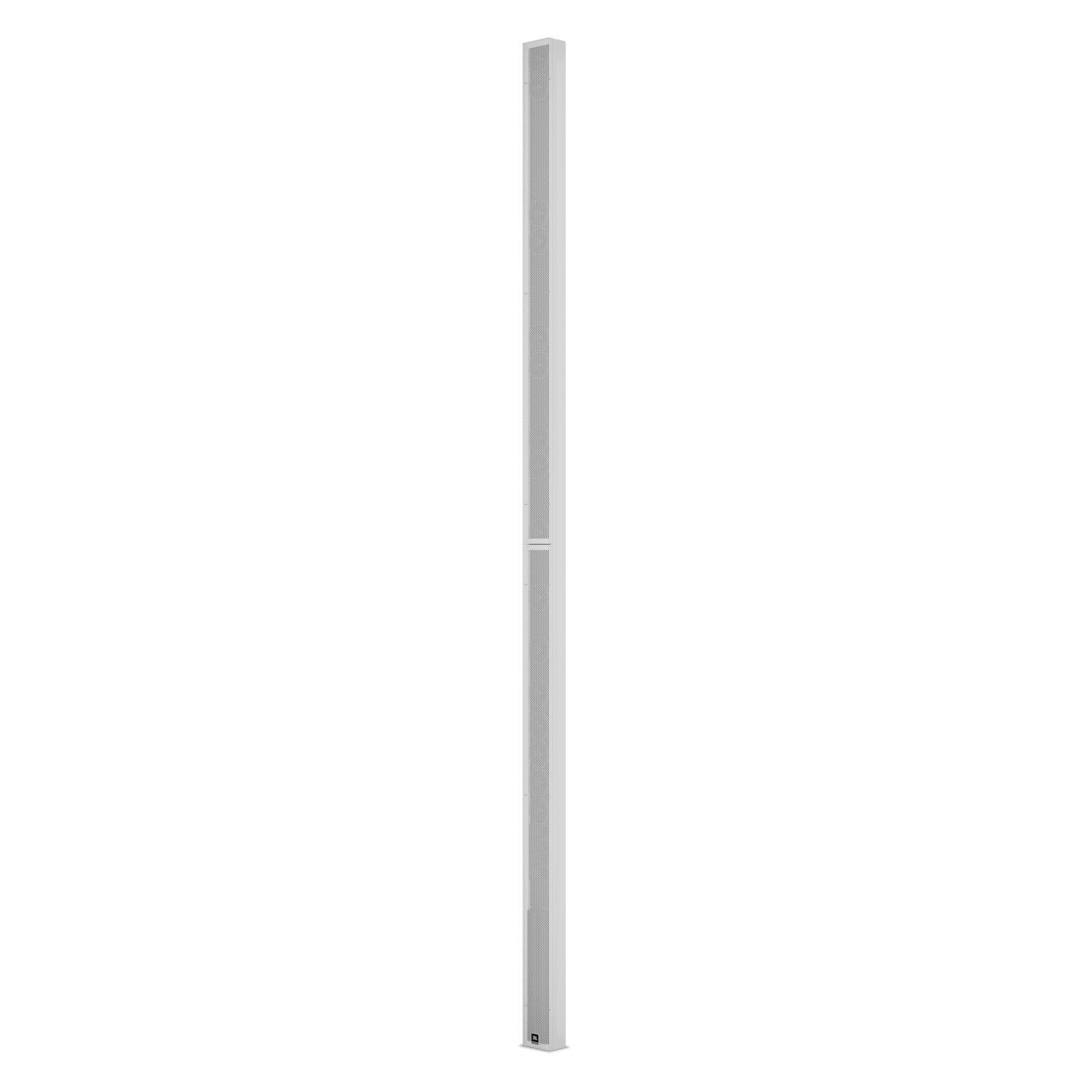

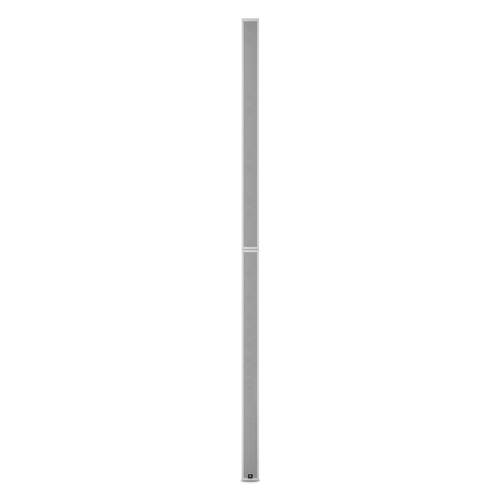

JBL Intellivox DS380D - 3.80m Active Digital Beam Shaping Column Loudspeaker Array - Amp at Bottom

JBL Intellivox DS380D - 3.80m Active Digital Beam Shaping Column Loudspeaker Array - Amp at Top

The Intellivox DS380D is an active column loudspeaker array designed for sound reinforcement and public address in large or reverberant spaces such as transport hubs, houses of worship, parliaments, lecture halls, theatres, atriums, and museums. It features JBL’s Digital Directivity Synthesis (DDS) Beam Shaping DSP technology, which allows installers to precisely define listener coverage areas with minimal reflections and maximum direct to reverberant ratio for clear, intelligible sound – even in the most challenging acoustic spaces.

The Intellivox DS380D delivers superb speech intelligibility. It provides low-frequency vertical beam control and broad horizontal dispersion, with consistent frequency response and SPL throughout, for uniform audience coverage. This Intellivox loudspeaker is typically used to deliver sound coverage over distances up to 45 meters, with additional range possible depending on the acoustic conditions of the space.

For integration flexibility, the Intellivox DS380D includes Dante® and analog audio inputs alongside IP control connectivity. A built-in DSP provides processing for DDS beam shaping along with volume control, parametric EQ, user presets, and more. Setup, control, status monitoring, and performance optimization are available with the free WinControl and DDA (Digital Directivity Analysis) software tools.

Intellivox column loudspeaker arrays are ideal for architecturally sensitive environments with a slim, unobtrusive design that requires no mechanical aiming and can be recessed to blend seamlessly into buildings of all ages and styles. The finish for the standard enclosure is white, and custom color options are available to fit the loudspeaker’s surroundings.

• Exceptional Intelligibility - JBL Intellivox Active Digital Beam Shaping Columns use Digital Directivity Synthesis (DDS to precisely shape sound, delivering unlimited coverage possibilities and ensuring every listener experiences the utmost in clarity.
• Architectural Integration - Slim and unobtrusive enclosure designs, available custom colours, and flexible mounting options allow Intellivox to blend into environments, preserving the architectural beauty of the building or surroundings.
• Safe and reliable - Built-in redundancy and status monitoring features ensure worry-free operation in critical life safety environments, with multiple inputs, automatic switchover, pilot tone detection, and a suite of onboard surveillance functions.

Please note: To enquire about custom colours of this model, please contact MadisonAV Sales on 1800 00 77 80.
