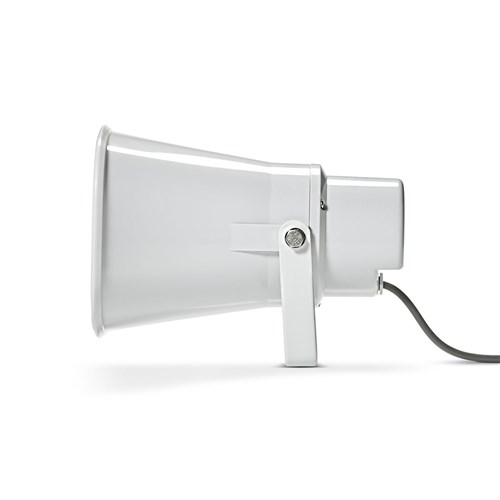

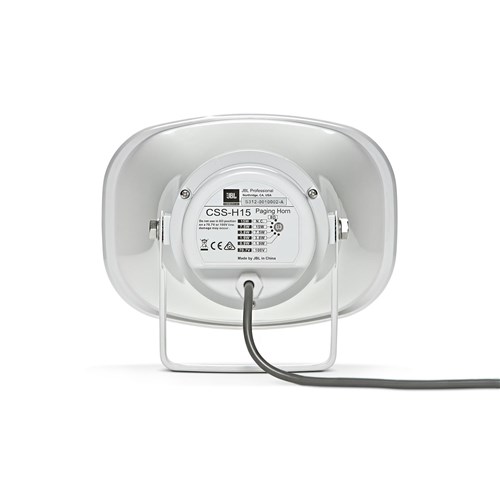

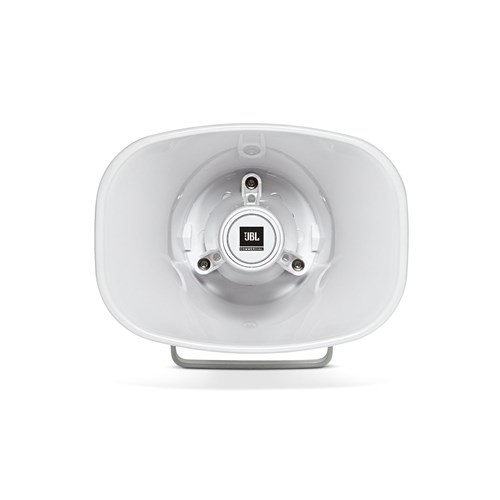

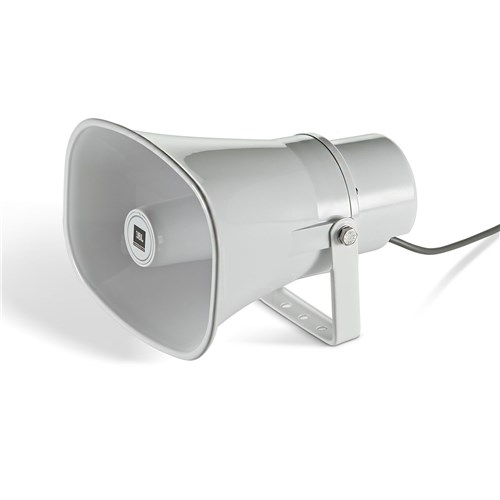

JBL CSS-H15 - 15 Watt Paging Horn (6 in masterpack)

Product Code: JBL CSS-H15

Key Features
15 Watt Paging Horn (6 in masterpack)
$353.60 inc GST
(Each)
Increase value Decrease value
Qty Each (inc GST) Each
In Stock
  • Features
  • Overview
  • Technical Specs
  • Documents

15 Watt Paging Horn

The Commercial Solutions Series CSS-H15 Paging Horn provides excellent voice range clarity for public address systems, announcement/paging, intercom, security, alarm and industrial applications. Designed for demanding environmental conditions, the CSS-H15 is highly weather resistant (IP-65 rated) so it can be used in either indoor or outdoor applications. The wide coverage pattern allows the horn to cover a larger audience area than is the case with many paging horns.

Features

  • Excellent voice range clarity for announcement and paging.
  • High sensitivity delivers high sound levels with minimal power amplification.
  • Wide 70° horizontal by 90° vertical coverage for medium throw applications.
  • Phenolic diaphragm driver for outdoor durability and high reliability.
  • UL-registered 15-watt multi-tap transformer, with 8 ohm direct bypass.
  • Built-in high-pass filter enhances reliability by protecting against low frequency damage.
  • Highly weather-resistant, with stainless steel bracket and hardware.

Applications

  • Public Access Areas
  • Warehouses
  • Factories
  • Schools
  • Recreational Facilities
  • Commercial Buildings
  • Distribution Centers
  • Civic Centers
  • Other Commercial Sound and Protective Signaling Systems
Warranty

We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Frequency Response (-10 dB) 400 Hz – 7.5 kHz
Coverage Pattern 70 horizontal by 90 vertical (at 2 kHz and averaged 1 kHz – 4 kHz)
Included High-Pass Filter Passive 350 Hz high-pass filter built-in to protect against damage from frequencies below operational range.
Directivity Factor (Q) 10.9 (2 kHz)
Directivity Index (DI) 10.4 (2 kHz)
System Power Rating 15 W (60 W peak), 100 hrs
Sensitivity (1W, 2.83V@ 1m) 105 dB, ave. 1 kHz – 6 kHz; 111 dB at 2 kHz
Maximum SPL (1m) 117 dB cont ave. (123 dB peak), 1 kHz – 6 kHz;123 dB cont ave. (129 dB peak), 2 kHz, 15W input,8 ohm setting
Nominal Impedance 15W/70V, NC/100V tap: 333 ohms 7.5W/70V, 15W/100V tap: 667 ohms 3.8W/70V, 7.5W/100V tap: 1333 ohms 1.9W/70V, 3.8W/100V tap: 2666 ohms 0.9W/100V, 1.9W/100V tap:5332 ohms 8 ohms at 8 ohm direct setting
Transformer Taps 70V: 15W, 7.5W, 3.8W, 1.9W. 0.9W 100V: 15W, 7.5W, 3.8W, 1.9W
Full-Range Driver 33 mm (1.3 in) diameter with phenolic diaphragm
Horn Material ABS
Mounting Hardware Stainless steel powder-coated U-bracket (yolk) with 3 x 8.8 mm (0.34 in) dia mounting holes, stainless steel exterior hardware.
Color RAL9016 (horn and bracket)
Input Connection 300 mm (12 in) pigtail to bare wire; entrance via watertight fitting. Wire colors: red = positive ( ); black = negative (-).
Environmental IP-65 rating per IEC529, salt spray per B117, stainless steel U-bracket and exterior hardware.
Safety Agency Ratings Transformer UL Registered per UL1876 “Isolating Signal and Feedback Transformers for Use in Electronic Equipment"
Dimensions (H x W x D) 163 x 222 x 232 mm (6.5 x 8.8 x 9.2 in) horn 181 x 222 x 232 mm (7.1 x 8.8 x 9.2 in) including mounting bracket. Depth excludes cable exit.
Weight (ea) 3.0 lb/1.36 kg
Shipping Weight (ea) 3.7 lb/1.68 kg
Included Accessories Stainless steel mounting bracket
