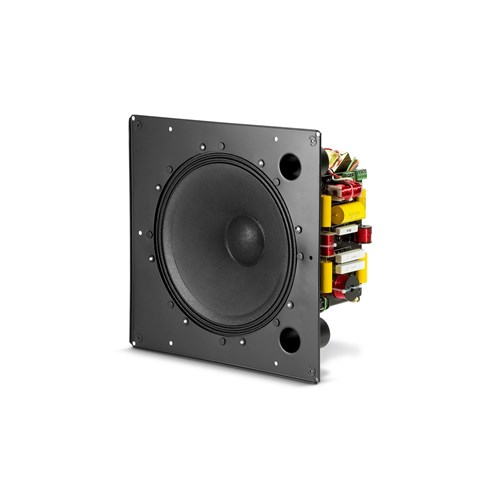

JBL Control 321CT - 12 Inch Coaxial Ceiling Loudspeaker with HF Compression Driver with Transformer

Product Code: JBL CTRL321CT

Key Features
Control 321C with pre-attached 60 Watt 70V/100V Multi-Tap Transformer. Taps at 68W, 34W and 17W (Plus 8.5W at 70V Only). 14.4 Square Ported Baffle x 9.5 Deep. EZ-Rail for Ease of Installation. UL LISTED
$1,377.64 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
Estimated Lead time 8-12 weeks
  • Features
  • Overview
  • Technical Specs
  • Documents

12 in. Coaxial Ceiling Loudspeaker with HF Compression Driver

The Control 321CT has been engineered from the ground up to deliver exceptional next-generation performance in a coaxial point source design ceiling loudspeaker.

Features

  • Consistent 90° broadband pattern control.
  • Components
    • 300 mm (12 in) woofer with Kevlar-reinforcedcone with 50 mm (2 in) voice-coil.
    • 25 mm (1 exit) compression driver.
  • Extraordinary clarity for speech and vocals with extended frequency response for music.
  • 250 Watt power handling with high sensitivity provides high SPL capability.
  • Advanced high-slope crossover network for constant coverage and smooth, natural midrange.
  • Clean, contemporary grille and optional backbox available.
Warranty

We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Trade Terms
This item is a firm order product, meaning it cannot be cancelled or returned once the purchase order is processed, except in cases of defect. Please verify that part numbers and descriptions are accurate before placing your order. For any confirmation or additional information, please contact AV Sales at 1800 00 77 80.
Frequency Range (-10 dB) 34 Hz 18 kHz
Power Rating 200 W (600 W peak), 100 hrs
Taps 70V: 68W, 34W, 17W, 8.5W100V: 68W, 34W, 17W
Frequency Response ( 3 dB) 47 Hz 16 kHz
Coverage Pattern 90 conical, broadband (Avg 1k - 16kHz)
Directivity Factor (Q) 8.7 (1k - 16kHz)
Directivity Index (DI) 9.4 dB (1k - 16kHz)
Sensitivity (2.83V@ 1m) 94 dB measured half-space99 dB computed for competitive comparison
Crossover Network 1.8 kHz, 3rd order (18 dB/oct) high-pass plus conjugate to HF, 2nd order low-pass to LF
Dimensions (H x W x D) 366 x 366 mm (14.4 x 14.4 in) square baffle x depth from back of baffle of 240 mm (9.5 in)

Accessories

JBL MTC-300BB12 - 3 Cubic Ft. Backbox for Control 300 Series 12 in. Drivers
JBL MTC-300BB12 - 3 Cubic Ft. Backbox for Control 300 Series 12 in. Drivers JBL MTC-300BB12
Estimated Lead time 8-12 weeks
$663.33 (EA)
Increase value Decrease value View Product
JBL MTC-300SG12 - Square Grille for Control 300 Series 12 in. Drivers
JBL MTC-300SG12 - Square Grille for Control 300 Series 12 in. Drivers JBL MTC-300SG12
Estimated Lead time 8-12 weeks
$130.88 (EA)
Increase value Decrease value View Product
