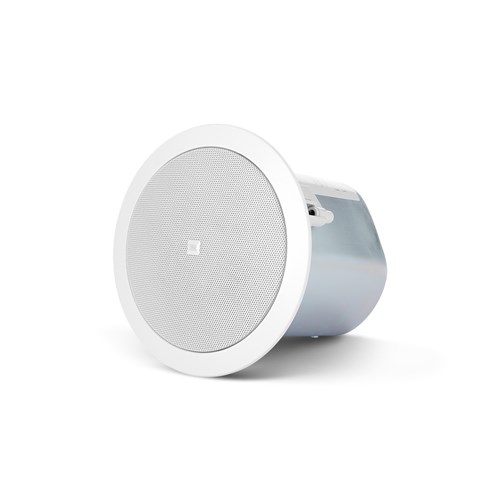

JBL Control 24CT-WH - Background/Foreground Ceiling Speaker in White

Product Code: JBL CTRL24CT-WH

Key Features
Control 24C with Transformer. For use on a 70.7V or 100V Distributed Line, Switchable Taps at 30W, 15W and 7.5W (Plus 3.7W at 70.7V only), No SonicGuard. Priced as Each, Packed as Pairs. Master Pack Quantity: 8 Pieces.
$438.66 inc GST
(Each)
Increase value Decrease value
Qty Each
In Stock
  • Features
  • Overview
  • Technical Specs
  • Documents

Background/ Foreground Ceiling Loudspeakers

The Control 24CT is a compact in-ceiling speakers, providing full, high quality sound for background music and music-plus-paging systems.

Features

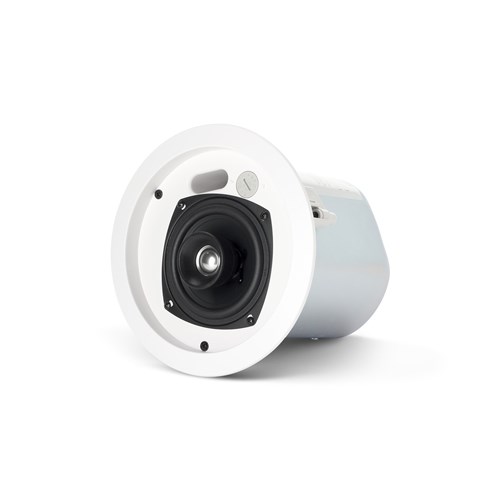

  • Coaxially mounted 100 mm (4 in) woofer with butyl rubber surround and 19 mm (.75 in) titanium coated
  • High power, wide frequency response and low distortion for high sound level capability.
  • Wide coverage allows fewer speakers, reducing the cost of
  • Packaged with grille, backcan and tile rails for fast installation and easy dealer stocking.

Important Order Information: The price displayed for this item is the price of a singe unit. However, this item is packaged and sold as a carton of 2 units. Please note, this item must be purchased in multiples of 2 units.

Warranty
We offer a 2 year warranty on this product from its date of purchase. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.
Frequency Range 80 Hz - 20 kHz
Power Capacity 80 W Continuous Program Power; 40 W Continuous Pink Noise
Transformer Taps 70 V: 30 W, 15 W, 7.5 W & 3.7 W taps100 V: 30 W, 15 W, & 7.5 W taps
Nominal Coverage Angle 130 conical coverage
Directivity Factor (Q) 2.4 dB averaged 500 Hz to 4 kHz
Directivity Index (DI) 3.8 dB averaged 500 Hz to 4 kHz
Rated Maximum SPL 102 dB @ 1 m (3.3 ft)
Nominal Impedance 16 ohms (Min Z 16.1 ohms @ 320 Hz)

Accessories

JBL MTC-48TRx12 - Tile Rail for 4' x 4' Ceiling Tiles JBL MTC-48TRX12
Call for availability.
$777.04 (Each)
Increase value Decrease value View Product
