JBL Control 126 WT - Premium In-Wall Loudspeaker 8 inch Woofer with Transformer - Priced as Each Sold as Pair

Product Code: JBL CTRL128WT

Key Features
Control 128W With Transformer for Use on a 70.7V or 100V Distributed Line. Selectable Taps at 50W, 25W, and 12W (Plus 6W at 70V Only). (Priced as Each, Sold in Pairs).
$919.44 inc GST
(Each)
Increase value Decrease value
Qty Each (inc GST) Each
Stock on order
  • Features
  • Overview
  • Technical Specs
  • Documents

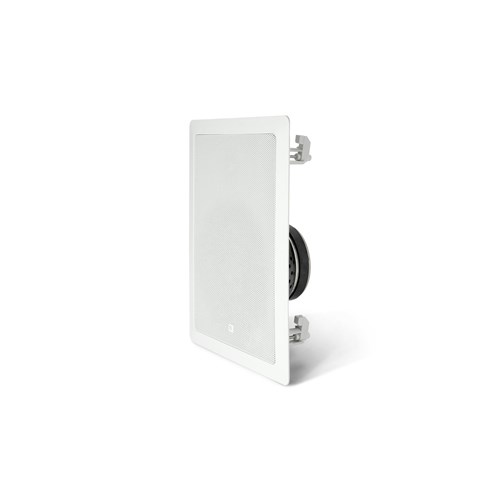

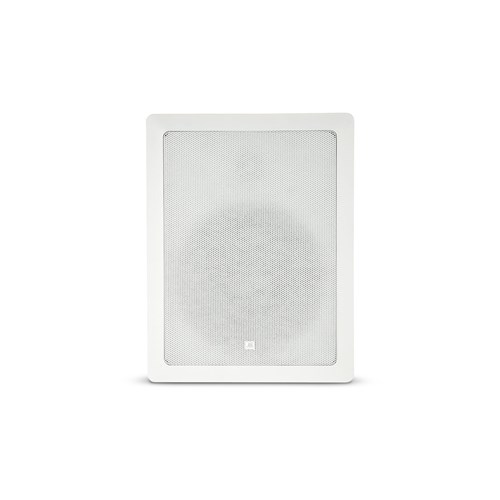

Premium In-Wall Loudspeaker

The Control 128WT is a premium in-wall speaker within the JBL Professional Control® Contractor line designed for applications such as foreground music, boardrooms, reception areas, airports, convention centers, cruise ships, retail outlets, restaurants, museums, surround locations, or any critical listening application where top performance from a loudspeaker with minimal visual impact is required.

Features

  • Components:

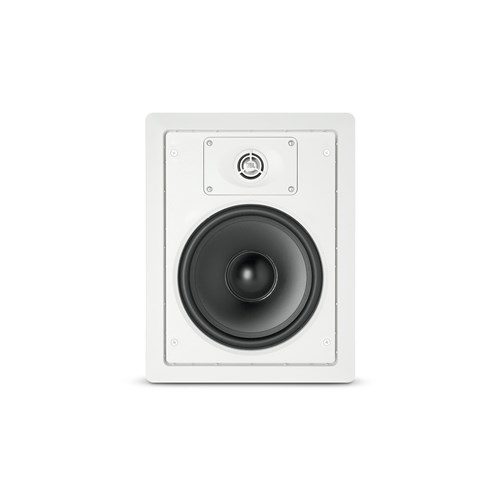

    200 mm (8 in) polymer-coated aluminum-cone woofer with pure butyl rubber surround.
    25 mm (1 in) pure-titanium dome low-diffraction swivel aimable titanium tweeter.
  • High-slope crossover for natural midrange sound.
  • Extended bandwidth performance of 30 Hz – 20 kHz.
  • 60 W continuous (120 W program, 240 W peak) power handling (128 W).

Important Order Information: The price displayed for this item is the price of a singe unit. However, this item is packaged and sold as a carton of 2 units. Please note, this item must be purchased in multiples of 2 units.

Warranty

We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Frequency Range 38 Hz - 20 kHz (-10 dB)
Power Capacity 200 W Peak 100 W Continuous Program Power 50W Continuous Pink Noise
Transformer Taps 70 V: 50 W, 25 W, 12 W & 6 W 100 V: 50 W, 25 W, & 12 W
Nominal Impedance 8 ohms
Low Frequency 200 mm (8 in) polymer-coated aluminum cone, pure butyl rubber surround.
High-Frequency 25 mm (1 in) pure-titanium dome with cloth suspension on low-diffraction swivel-mount with -10 degree aimability.
Terminations Screw-down Euroblock-type connector. Max wire size 14 AWG (1.5 mm)2
Crossover Network 2nd order Low Pass to the woofer and 2nd order High Pass to the tweeter.
Optimum Air Cavity Behind Speaker 40 to 80 liters (1.4 to 2.8 cu ft)
Outside Dimensions (H x W x D) 334 x 257 x 110 mm (13.1 x 10.1 x 4.3 in), 102 mm (4.0 in) front of wall to back of speaker.
Maximum Wall Thickness 32 mm (1.25 in)
Cutout Size (H x W) 300 x 225 mm (11.9 x 8.9 in)Cutout template included.
Net Weight (ea) 3.3 kg (7.2 lb)
Shipping Weight (ea) 7.8 kg (17.2 lb)
Included Accessories Cutout template & paint shield
Optional Accessories WB8 Rough-In Frame for new construction installation to wallstuds
