| Drivers |

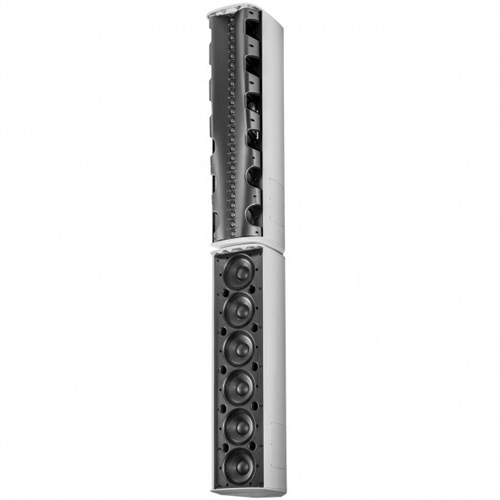

Twenty-four (24) 25 mm (1 in) extra-high-power soft dome tweeters and Twelve (12) 165 mm (6.5 in) high-excursion LF drivers (CBT1000 1000E) |
| Frequency Range (-10dB) |
38 Hz - 20 kHz |
| Coverage |
Vertical (selectable via switch) |
| Sensitivity |
102 dB (at highest sensitivity setting: “Point” pattern up, “Point” pattern down, “Speech” voicing, in free space)95 dB (at lowest sensitivity setting: “Medium” pattern up, “Downfill” pattern down, “Music” voicing in free space) |
| Impedance |
4 ohms |
| Power Rating |
3000 W (12000 W peak), 2 hrs2000 W (8000 W peak), 100 hrs |
| Maximum SPL (1m) |
Highest directivity setting: (“Point” pattern up, “Point” pattern down) with “Speech” voicing: 131 dB continuous average pink noise 134 dB continuous program 137 dB Peak Highest directivity setting: (“Point” pattern up, “Point” pattern down) with “Music” voicing: 127 dB continuous average pink noise 130 dB continuous program 133 dB peak Lowest directivity setting: (“Medium” pattern up, “Downfill” pattern down) with “Speech” voicing: 128 dB continuous average pink noise 131 dB continuous program 134 dB peak Lowest directivity setting: (“Medium” pattern up, “Downfill” pattern down) with “Music” voicing: 124 |
| Vertical Coverage Settings |
Coverage is effective (frequency response similar) beyond the traditional -6 dB coverage angles. This is especially useful in compensating for differences in listening distances. Figures show both the -6 dB and -12 dB coverage angles (at 3 kHz). Angles are in reference to cabinet aiming axis. Pattern UP Settings: “Point”: -6dB @ 7°, -12 dB @ 12° “Tight”: -6dB @ 9°, -12 dB @ 15° “Narrow”: -6dB @ 10°, -12 dB @ 20° “Medium”: -6dB @ 13°, -12 dB @ 24° Pattern DOWN Settings: “Point”: -6dB @ -7°, -12 dB @ -12° |
| Horizontal Coverage |
Patent-pending Tapered Horizontal Waveguide continuously variable. Long-throw (top) section: 100° Middle section: 130° Short-throw (bottom) section: 160° |
| Low Frequency Drivers |
12 pcs, 165 mm (6.5 in) drivers, neodymium, 50 mm (2 in) voice coil, damped blended textile surround, coated diaphragm for moisture, UV, and salt resistance. |
| High Frequency Drivers |
24 pcs, 25 mm (1 in) drivers, neodymium, encased magnet and coated diaphragm for moisture, UV, and salt resistance. |
| Enclosure |
Fiberglass reinforced ABS cabinet, powder coated 1050 aluminum grille |
| Outdoor Capability |
IP-55 rated, per IEC529, when installed with optional MTC-PC2 panel cover. Exceeds Mil Spec 810 for humidity, temperature & UV, ASTM G85 for acid-air/salt-spray (200 hrs). |
| Color |

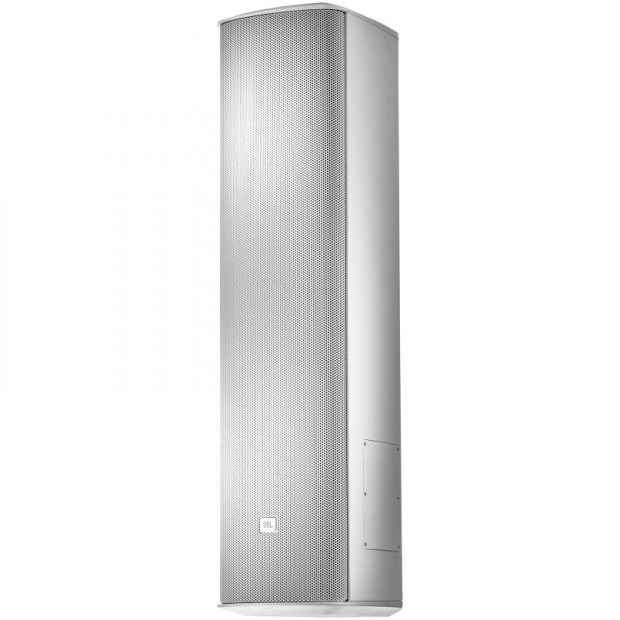

Black (RAL9004) or White (-WH) (RAL9016) |
| Insert Points |
Coupler plate utilizes the bottom two rows of the top speaker and the top two rows of the bottom speaker, leaving available: 20 individual M8 inserts on back panel (20 mm deep) for use with swivel (pan)/tilt bracket(s), plus 4 individual M8 inserts on top and 4 on bottom of cabinet end-caps. |
| Mounting |
Included two-part swivel (pan)/tilt wall bracket provides continuously variable /- 45 degree left-right swivel aiming (at no up/down tilt – see Bracket Guide for maximum swivel range at various up/down tilt angles), continuously variable /- 5.25 degree tilt, in the following increments: 5.25°, 5.0°, 4.5°, 4°, 3.75°, 3.5°, 3.0°, 2.75°, 2.5°, 2.0°, 1.75°, and 1.25°. Twenty (20) available threaded mounting points located on back panel of cabinet conform to industry standard rectangular 127 x 70 mm (5.0 x 2.75 in) pattern for legacy OmniMount® and other compatible third–party brackets. Four (4) threaded mount points on the top end-cap and four (4) on the bottom end-cap. Threaded mounting points can be utilized for suspension. (Always use multiple mounting points.) |
| Dimensions (H x W x D) |
2040 mm x 250 mm x 345 mm (80.4 x 9.9 x 13.6 in) |
| Net Weight |
(cabinet): 47.2 kg (104 lbs) |
| Included Accessories |
Two-piece swivel (pan)/tilt wall bracket Coupler Plate |
| Optional Accessories |
MTC-PC2 terminal panel cover
CBT1K-ACC1 Accessory kit includes:
- 2 pcs MTC-CBT-FM3 flush-mount brackets
- 1 pc MTC-CBT-OS3 offset bracket (for CBT 1000 1000E array – works in conjunction with CBT 1000E’s included
- Coupler Plate for locating CBT 1000E extension cabinet above CBT 1000 instead of below it)
MTC-CBT-SUS3 CBT Series suspension bracket kit (2 pcs included to provide top and bottom attachment points) |
