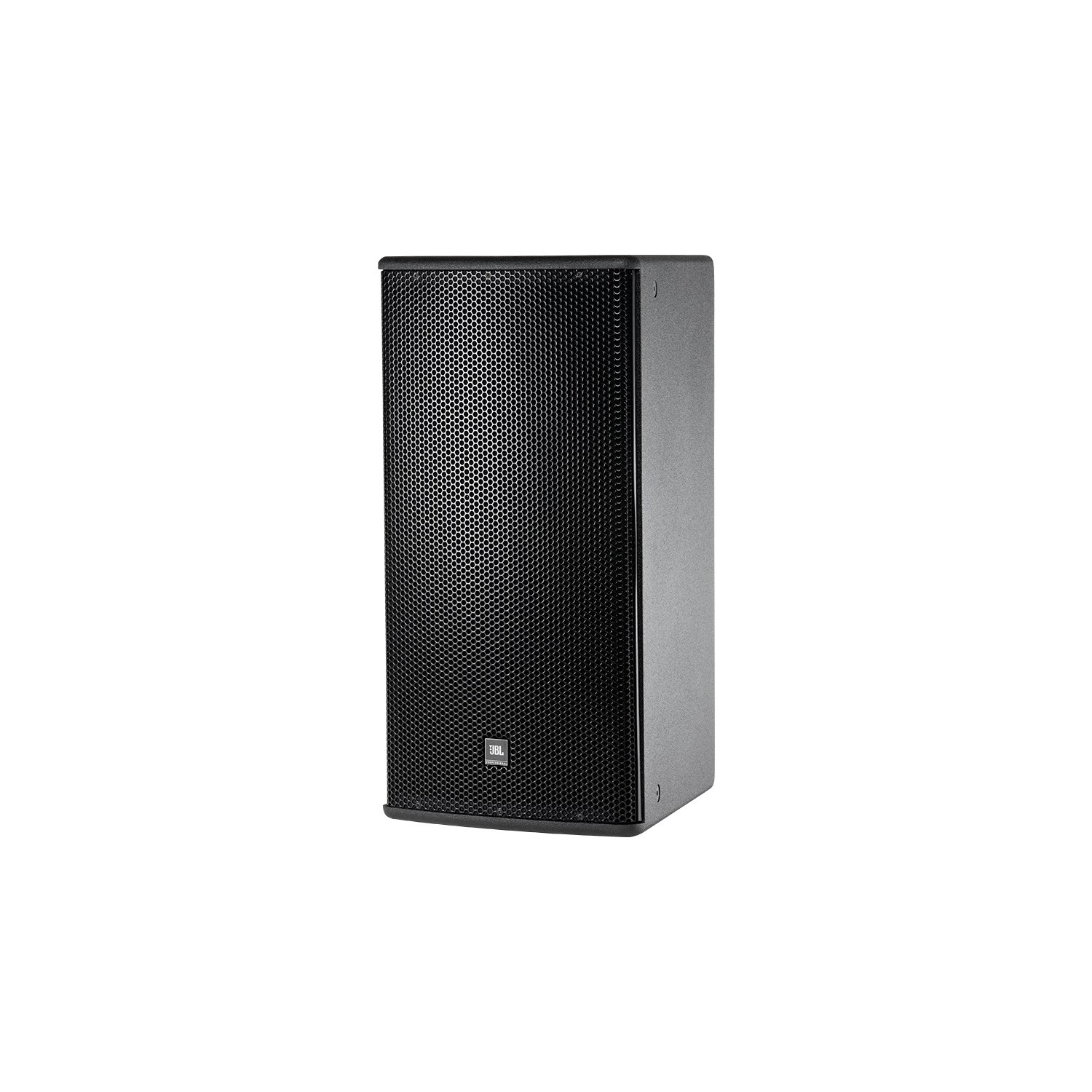

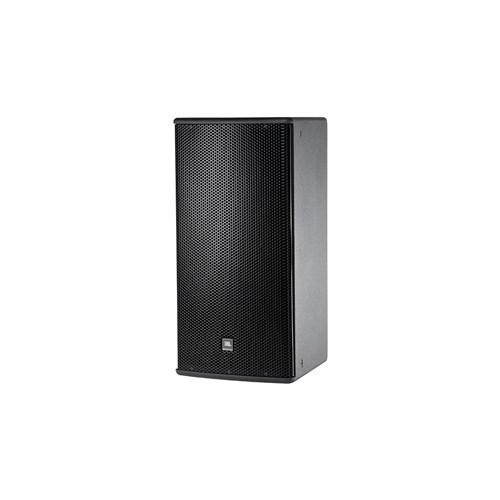

JBL AM5212/00 - 2-Way Loudspeaker System with 1 x 12 inch LF with Extreme Weather Protection Treatment

Product Code: JBL AM5212-00-WRX

Key Features
Medium Power 12 2-Way Full-Range Loudspeaker System with JBL Differential Drive® 50.8 mm (2-in) dual voice coil and dual magnetic gap 262H low frequency driver and 2408H-1 high-frequency 38mm (1.5 in) exit, 38mm (1.5 in) voice-coil compression driver. 100° x 100° rotatable Progressive Transition waveguide, Bi-Amp/Passive Switchable. With Extreme Weather Protection Treatment. WRC & WRX enclosures are larger than the standard enclosure. Visit www.jblpro.com to download AE Series 2D WRC & WRX drawings. MountU brackets do not fit WRC & WRX enclosures. Standard color is GRAY. Available in Black (-BK) & White (-WH). 8-10 weeks for 1-10 pcs if larger 10-or greater has to be reviewed.
Enquire Now
Qty Each (inc GST) Each
Estimated Lead time Contact Us
  • Features
  • Overview
  • Technical Specs
  • Documents

2-Way Loudspeaker System with 1 x 12" LF

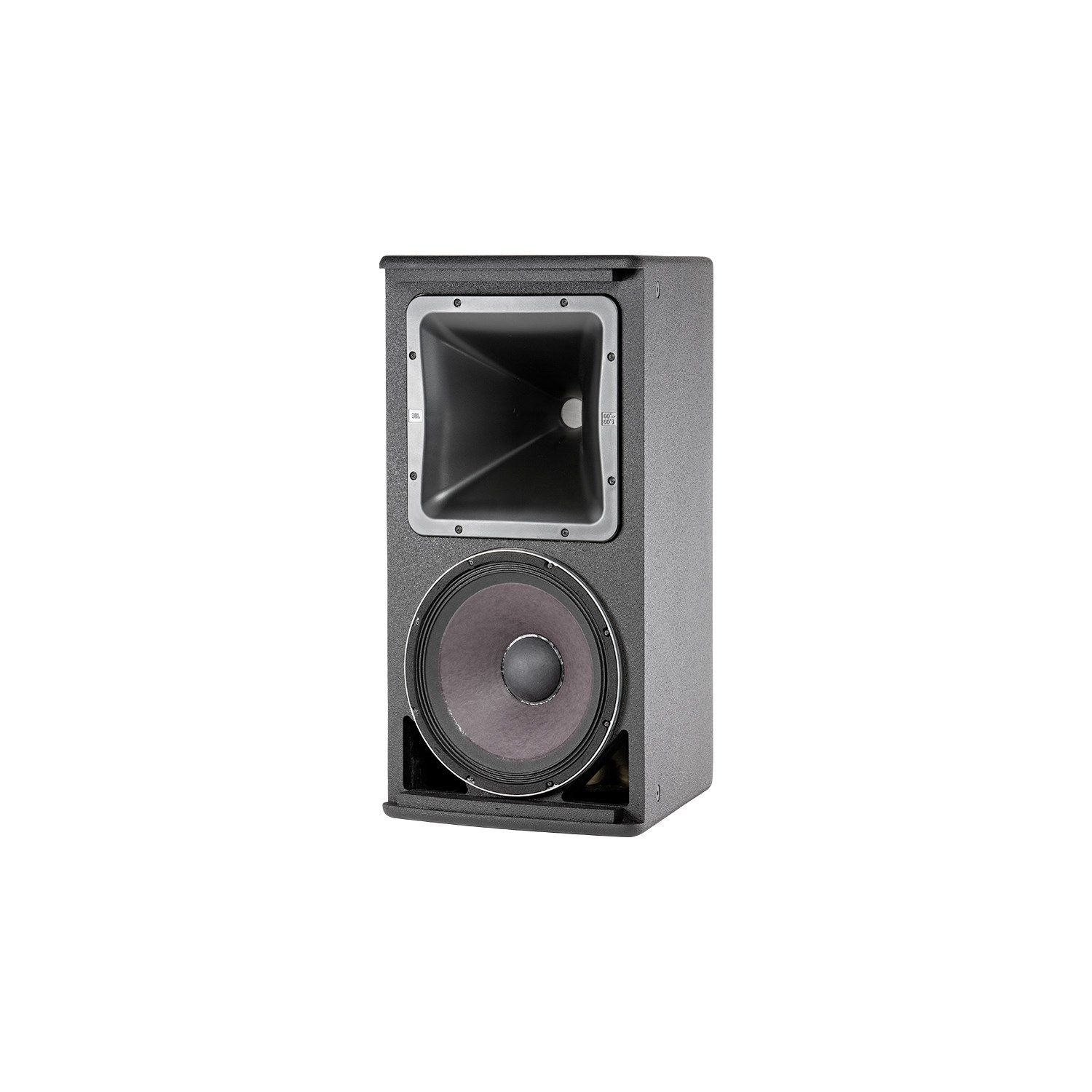

The AM5212/64 is a medium power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive® dual voice coil and dual magnetic gap 262H-1 300 mm (12 in) low frequency driver and 2408H-1 high frequency 38 mm (1.5 in) exit, 38 mm (1.5 in) voice-coil compression driver. The large format PT™ Progressive Transition waveguide provides excellent 60° x 40° coverage. The waveguide is rotatable so the loudspeaker system can be used in either the vertical or horizontal orientation. High-slope passive networks minimize band overlap. Well-controlled off-axis response enhances arrayability.

Features

  • 60° x 40° Coverage
  • 262H-1 Differential Drive® Low-Frequency Driver
  • 2408H-1 High-Frequency Compression Driver
  • Large PT™ Progressive Transition waveguide for excellent pattern control and low distortion
  • Rotatable waveguide for vertical or horizontal orientation
  • Bi-Amp/Passive Switchable
  • Available in Black, White and WRC/WRX weather resistant finishes

    • Applications

  • Performing Arts Facilities
  • Theatrical Sound Design
  • Auditoriums
  • Worship Facilities
  • Live Clubs
  • Dance Clubs
  • Sports Facilities
  • Themed Entertainment Venues
    • Warranty

    We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

    Frequency Range (-10 dB) 37 Hz 20 kHz
    Frequency Response ( 3 dB) 43 Hz 18 kHz
    Coverage Pattern /64: 60 x 40/66: 60 x 60/95: 90 x 50/00: 100 x 100/26: 120 x 60
    Crossover Modes Bi-amp/Passive switchable
    Passive Crossover Frequency 1.5 kHz
    Transducer Power Rating (AES) LF: 400 W (1600 W peak), 2 hrs300 W (1200 W peak), 100 hrsHF: 40 W (160 W peak), 2 hrs
    Long-Term System Power Rating (IEC) Passive mode: 300 W (1200 W peak), 100 hrs
    Maximum SPL Bi-amp mode:LF: 122 dBHF: 131 dB
    System Sensitivity (1w @ 1m) Passive mode: 96 dB SPL
    Low Frequency Driver 1 x JBL 262H-1 300 mm (12 in) driver with 50.8 mm (2 in) dual voice coil
    Nominal Impedance 8 ohms
    Sensitivity (1W @ 1m, within operational band) 97 dB SPL
    High Frequency Driver JBL 2408H-1, 38 mm (1.5 in) exit compression driver, 38 mm (1.5 in) voice coil
    Sensitivity (1W @ 1m) 113 dB SPL
    Waveguide PT-H126HF-1
    Enclosure Trapezoidal with 15 degree side angles, 16 mm (5/8 in) exterior grade 11-ply birch plywood
    Suspension Attachment 15 points (4 top, 4 bottom, 2 each side, 3 rear), M10 threaded hardware
    Finish Black DuraFlex finish. White available upon request.
    Grille Powder coated 14 gauge perforated steel, with acoustically transparent black foam backing.
    Input Connector NL4 Neutrik Speakon and CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs. Speakon in parallel with barrier strip for loop-through.
    Environmental Specifications Mil-Std 810; IP-x3 per IEC529
    Dimensions (H x W x D invertical cabinet orientation) 713 x 371 x 458 mm(28.06 x 14.6 x 18.1 in)
    Net Weight 20.2 kg (45 lb)
    Optional Accessories M10 x 35 mm forged shoulder eyebolts with washers U-Bracket MTU-3
