JBL AL7115-WH High Power Single 15 Inch Low Frequency Loudspeaker White

Product Code: JBL AL7115-WH

Key Features
JBL AL7115-WH 15" Low Frequency Speaker, High Power 1 X 15" Low Frequency Loudspeaker. 1 X 15" 2265H Differential Drive Woofer. Available In Black Or White (-Wh). Suspension Eyebolts Not Included. Arrays With Am7200 And Mid-High Loudspeakers Using Paf-3K Planar Array Frame Kit.
$5,219.94 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
Estimated Lead time 8-12 weeks
  • Features
  • Overview
  • Technical Specs
  • Documents

High Power Single 15" Low Frequency Loudspeaker

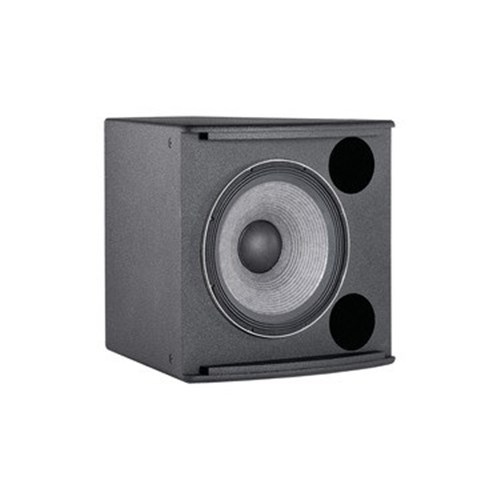

AL7115 is a high power, low frequency loudspeaker system comprised of one 380 mm (15 in) Differential Drive® low frequency driver in a front-loaded, vented configuration. The trapezoidal cabinet is fitted with M10 threaded suspension points. Pre-engineered array bracketry is available. AL7115 is part of JBL’s AE Application Engineered Series, a versatile family of loudspeakers for a wide variety of applications.

Features

  • 1 x 15" 2265H Differential Drive® Low- Frequency Driver.
  • Large vent area for high output with low distortion.
  • Arrays with various AE Series mid-high frequency and compact 2-way models (see AE Series Array Guide).

Applications

  • Performing arts facilities
  • Theatrical sound design
  • Auditoriums
  • Houses of worship
  • Live clubs
  • Dance-clubs/discotheques
  • Sports facilities
  • Themed entertainment venues
Warranty

We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Trade Terms
This item is a firm order product, meaning it cannot be cancelled or returned once the purchase order is processed, except in cases of defect. Please verify that part numbers and descriptions are accurate before placing your order. For any confirmation or additional information, please contact AV Sales at 1800 00 77 80.
Frequency Range (-10dB) 40 Hz – 4.2 kHz
Frequency Response (±3 dB) 47 Hz - 3.0 kHz
Transducer Power Rating (AES) 1000 W (4000 W peak), 2 hrs
System Power Rating 600 W (2400 W peak), 100 hrs
Maximum SPL (1m) 50 Hz –125 Hz: 127 dB-SPL cont avg (133 dB peak) 125 Hz – 800 Hz: 126 dB-SPL cont avg (132 dB peak)
System Sensitivity (1w @ 1m) 50 Hz – 125 Hz: 97 dB125 Hz – 800 Hz: 97 dB
Nominal Impedance 8 ohms
LF Driver 1 x JBL 2265H 380 mm (15 in) Differential Drive driver with 75 mm (3 in) dual voice coil
Enclosure Trapezoidal with 15 degree side angles, 16 mm (5/8 in) exterior grade 11-ply Finnish birch plywood
Suspension Attachment 13 points (3 top, 3 bottom, 2 each side, 3 rear), M10 threaded hardware
Finish Black DuraFlex™ finish.White available upon request.

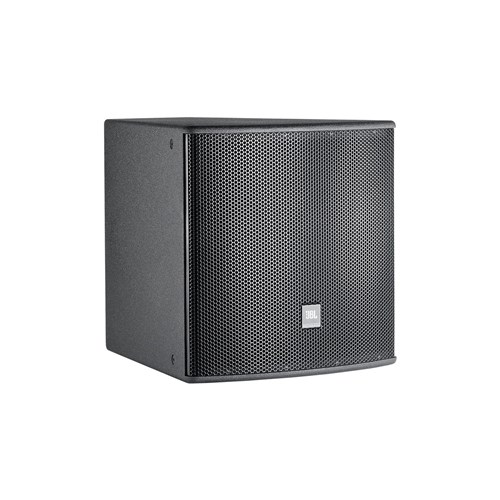

Grille Powder coated 14 gauge perforated steel, with acoustically transparent black foam backing.

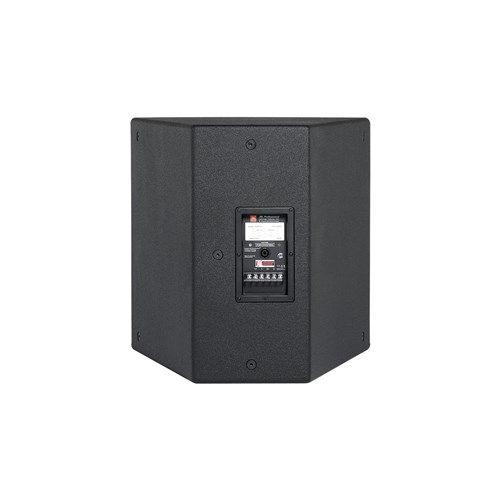

Input Connector NL4 Neutrik Speakon® and CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs. Speakon in parallel with barrier strip for loop-through.
Environmental Mil-Std 810; IP-x3 per IEC529
Dimensions (H x W x D in vertical orientation) 548 x 561 x 657 mm(21.6 x 22.1 x 25.9 in)
Net Weight (each) 25.9 kg (57 lb)
Optional Accessories M10 x 35 mm forged shoulder eyebolts with washers. Optional planar array frame kit. See AE Series Bracket Guide.
Nominal LF Driver Impedance 8 ohms
