JBL AC299-WH Two-Way Full-Range Loudspeaker with 1 x 12 Inch LF White

Product Code: JBL AC299-WH

Key Features
JBL AC299-WH 12" 2-Way Full-Range System, White, 12"
$2,858.12 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
Estimated Lead time 8-12 weeks
  • Features
  • Overview
  • Technical Specs
  • Documents

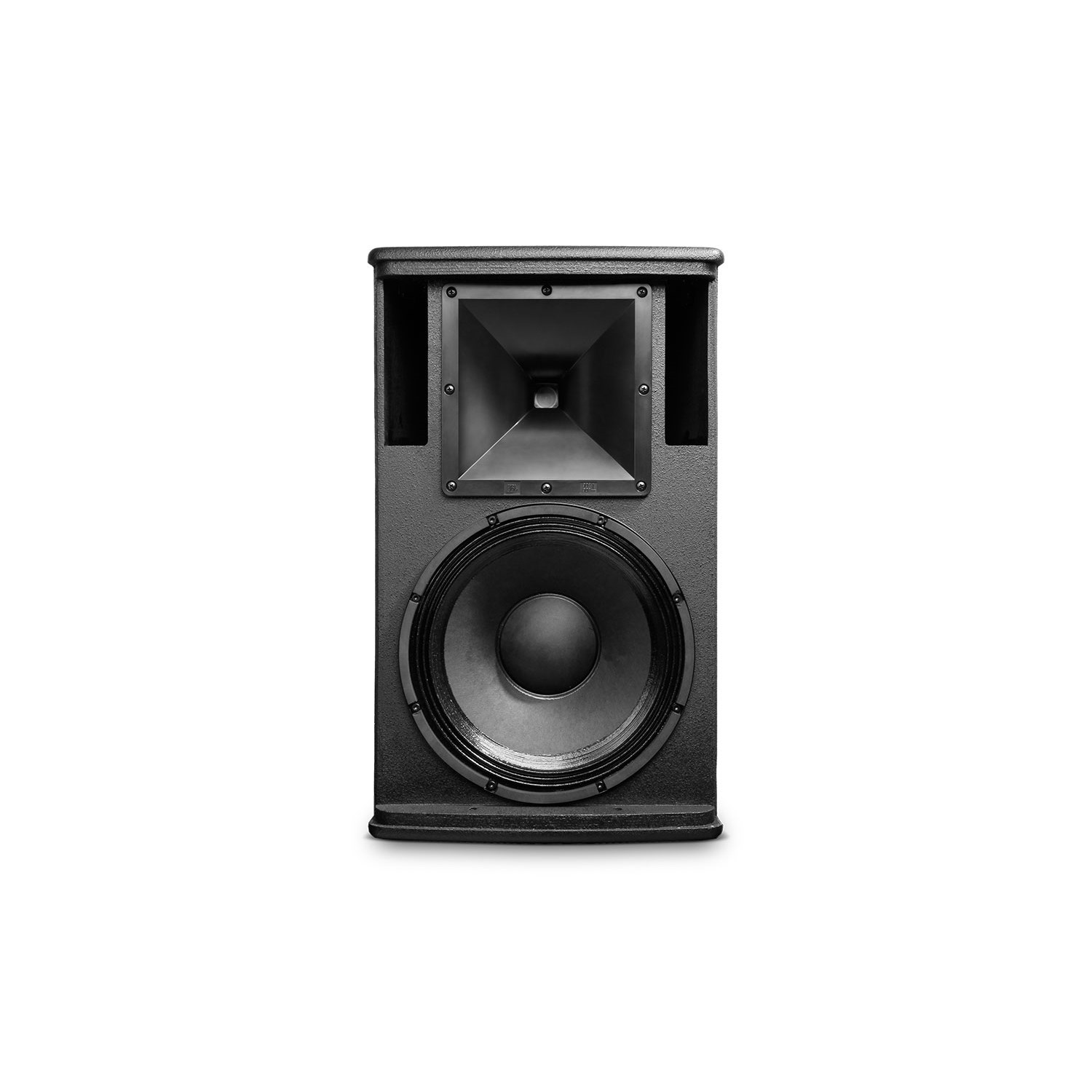

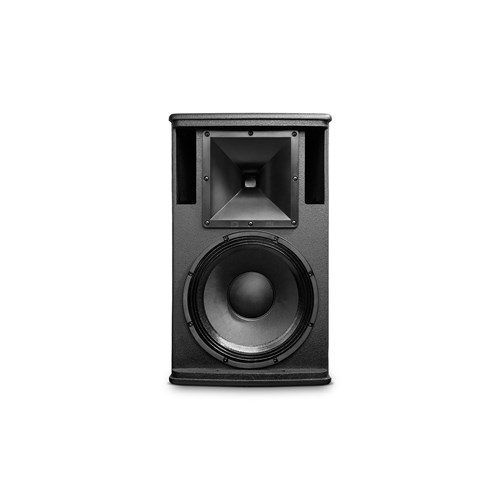

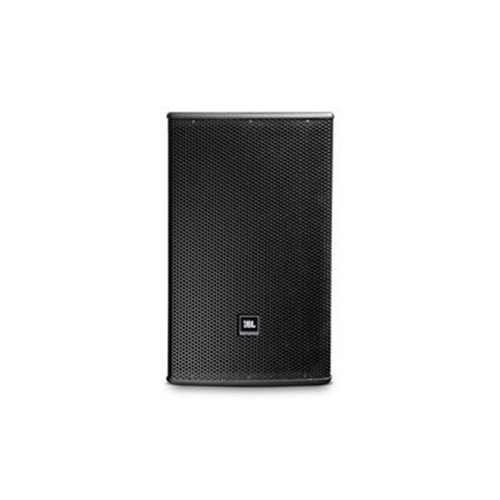

Two-Way Full-Range Loudspeaker with 1 x 12" LF

AC299 is a compact 2-way full-range loudspeaker system comprised of one 310 mm (12 in) low frequency driver and one 25 mm (1 in) exit/35 mm (1.5 in) voice-coil compression driver. The horn provides 90° by 90° coverage in vertical and horizontal orientation. High-slope passive crossovers minimize band overlap and well-controlled offaxis response. The cabinet is fitted with M10 threaded suspension points. Four threaded inserts located on back of the enclosure allow attachment of an MultiMount® or similar type mounting. AC299 is part of JBL's AE Application Engineered Series, a versatile family of loudspeakers for a wide variety of fixed installation applications

Features

  • Robust 15mm enclosure with black textured finish
  • 310 mm (12 in) LF transducer
  • 90° x 90° Waveguide with a 25 mm (1 in) exit 35mm (1.5") voice-coil compression driver
  • Dual Neutrik NL4 connectors plus screw terminals
  • Multiple attachment points for ultimate flexibility

Applications

  • Performing Spaces
  • Clubs & Bars
  • Houses of Worship
  • Multi Media Spaces
  • Retail & Hospitality Spaces
  • Presentation Suites
  • Educational Facilities
Warranty

We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Trade Terms
This item is a firm order product, meaning it cannot be cancelled or returned once the purchase order is processed, except in cases of defect. Please verify that part numbers and descriptions are accurate before placing your order. For any confirmation or additional information, please contact AV Sales at 1800 00 77 80.
Frequency Range (-10dB) 63 Hz - 20 kHz
Frequency Response (±3 dB) 80 Hz - 18 kHz
System Sensitivity (1w @ 1m) 97 dB
Nominal Impedance 8 ohms
Maximum SPL (1m) 121 dB (127 dB peak)
System Power Rating 350W (1400W peak), 2 hrs (AES rated)
250 W/500 W/1000 W (Continuous/Program/Peak) (IEC rated)
Coverage Pattern 90° x 90° (H x V)
Crossover 1.5 kHz
LF Driver 1 x 12" woofer (P/N: 5050730), 310 mm (12 in) driver with 66 mm (2.5 in) voice-coil
HF Driver 1 x 2408H-2 driver with 25 mm (1 in) exit/35 mm (1.5 in) voice-coil
Input Connector Dual Neutrik NL4MP connectors plus covered barrier trip terminals
Enclosure 15 mm multi-ply hardwood plywood
Grille Powder coated, 1.5mm perforated steel, with acoustically transparent black foam backing
Finish Textured black paint finish. White (-WH) available upon request. Not available with WRC & WRX finish.
Suspension Attachment 14 x M10 and 4 x M10 for Wall Mount Bracket. Optional U-bracket, L-bracket and wall-mount bracket
Dimensions (H x W x D) 600 mm x 370 mm x 392 mm 23.6 in x 14.5 in x 15.4 in
Net Weight (each) 17.3 kg (38.1lbs)
Crossover Modes Passive
Nominal LF Driver Impedance 8 ohms
Nominal HF Driver Impedance 8 ohms

Accessories

JBL 2290000901 Kit Sp/Vs Set Of Three M10 X 35Mm Forged Shoulder Steel Ey
JBL 2290000901 Kit Sp/Vs Set Of Three M10 X 35Mm Forged Shoulder Steel Ey JBL 229-00009-01
In Stock
$130.39 (EA)
Increase value Decrease value View Product
JBL MTU-266-99-WH - U-bracket for AC266 and AC299. White
JBL MTU-266-99-WH - U-bracket for AC266 and AC299. White JBL MTU-266-99-WH
Estimated Lead time 8-12 weeks
$368.81 (EA)
Increase value Decrease value View Product
JBL OSB-1-WH - Overhead Suspension Bracket White
JBL OSB-1-WH - Overhead Suspension Bracket White JBL OSB-1-WH
Estimated Lead time 8-12 weeks
$118.55 (EA)
Increase value Decrease value View Product
