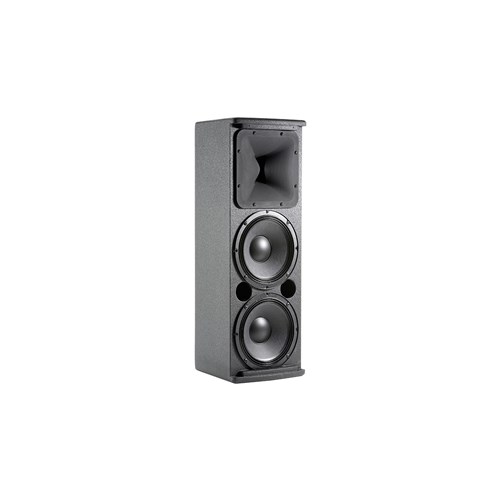

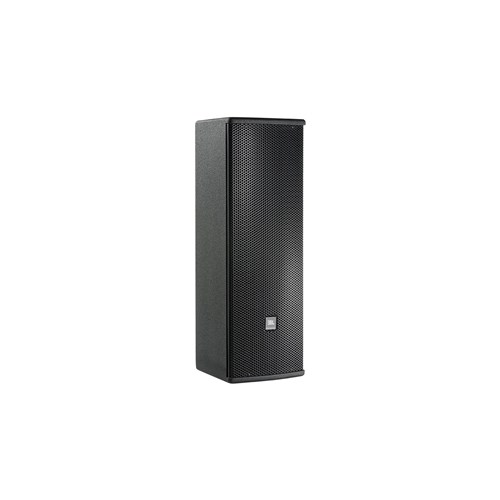

JBL AC28-26 - Compact 2-way Loudspeaker with 2 x 8 inch LF Black

Product Code: JBL AC28-26-BK

Key Features
Compact 2-Way Loudspeaker with 2 x 8" LF. 120° x 60° Coverage, Passive. Compact PT Progressive Transition Waveguide, Rotatable. Priced as each. Suspension Eyebolts Not Included. Optional U-Bracket Model MountU-28.
$4,652.43 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
Stock on order
  • Features
  • Overview
  • Technical Specs
  • Documents

Compact 2-way Loudspeaker with 2 x 8" LF

High output, 2-way loudspeaker systems combining flexibility with high fidelity

Features

  • 1" Exit Compression Driver with PT Waveguide
  • 205 mm (8 in) LF transducer
  • Compact enclosure
  • 750W Program
  • Dual Neutrik NL4 connectors plus screw terminal
  • Attachment points for optional U-bracket, third part OmniMount type bracket and stand mount accessory
  • Warranty

    We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

    Frequency Range 53 Hz - 20 kHz (-10 dB)
    Frequency Response 65 Hz 20 kHz ( 3 dB)
    Power Rating 375W Cont. Pink Noise 750W Program 1500W Peak
    Impedance 8 ohms
    Coverage Pattern /26: 120 x 60/95: 90 x 50
    Dimensions (H x W x D) 679.5 x 237.5 x 254.0 mm (26.8 x 9.4 x 10.0 in)
    Weight 18.6 kg (40.9 lb)
