JBL AC266 - Two-Way Full-Range Loudspeaker with 1 x 12 Inch LF Black

Product Code: JBL AC266-BK

Key Features
12" 2-way system, 60° x 60° waveguide coverage pattern with 2408H-2 25mm (1 in) exit, 38mm (1.5 in) voice coil. Priced as each.
$2,774.86 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
Estimated Lead time 8-12 weeks
  • Features
  • Overview
  • Technical Specs
  • Documents

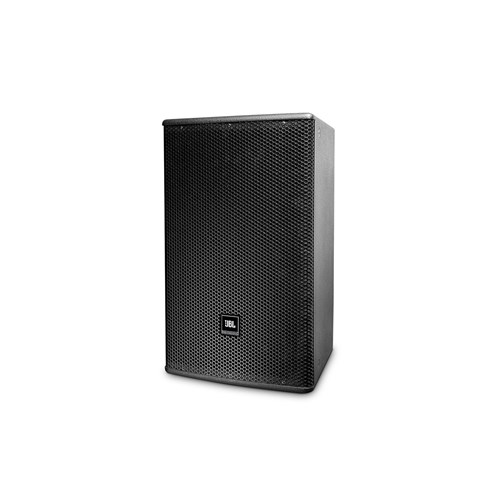

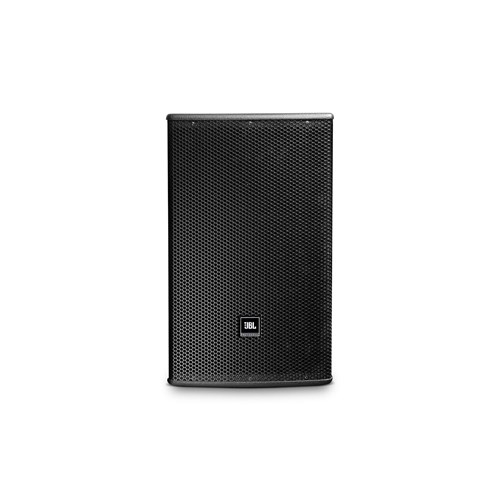

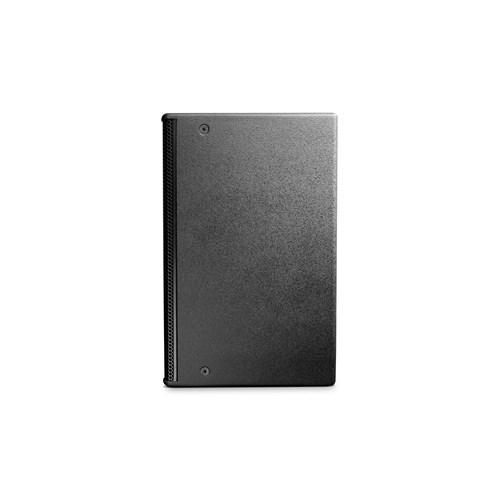

Two-Way Full-Range Loudspeaker with 1 x 12" LF

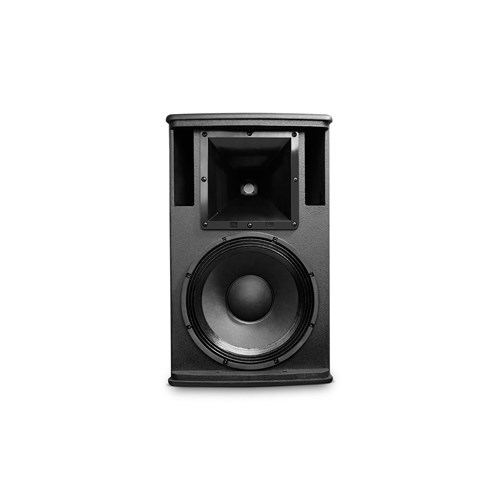

AC266 is a compact 2-way full-range loudspeaker system comprised of one 310 mm (12 in) low frequency driver and one 25 mm (1 in) exit/35 mm (1.5 in) voice-coil compression driver. The horn provides 60° by 60° coverage in vertical and horizontal orientation. High-slope passive crossovers minimize band overlap and well-controlled offaxis response. The cabinet is fitted with M10 threaded suspension points. Four threaded inserts located on back of the enclosure allow attachment of an MultiMount® or similar type mounting. AC266 is part of JBL's AE Application Engineered Series, a versatile family of loudspeakers for a wide variety of fixed installation applications.

Features

  • Robust 15mm enclosure with black textured finish
  • 310 mm (12 in) LF transducer
  • 60° x 60° Waveguide with a 25 mm (1 in) exit 35mm (1.5") diaphragm compression driver
  • Dual Neutrik NL4 connectors plus screw terminals
  • Multiple attachment points for ultimate flexibility

    • Applications

  • Performing Spaces
  • Clubs & Bars
  • Houses of Worship
  • Multi Media Spaces
  • Retail & Hospitality Spaces
  • Presentation Suites
  • Educational Facilities
    • Warranty

    We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

    Trade Terms
    This item is a firm order product, meaning it cannot be cancelled or returned once the purchase order is processed, except in cases of defect. Please verify that part numbers and descriptions are accurate before placing your order. For any confirmation or additional information, please contact AV Sales at 1800 00 77 80.
    Frequency Range (-10 dB) 63 Hz - 20 kHz
    Frequency Response ( 3 dB) 80 Hz - 18 kHz
    System Sensitivity (1w @ 1m) 97 dB
    Nominal Impedance 8 ohms
    Maximum SPL(1m) 121 dB (127 dB peak)
    Power Rating (Continuous/Program/Peak) 250 W/500 W/1000 W
    Coverage Pattern 60 x 60 (H x V)
    Crossover 1.5 kHz
    Low Frequency Driver 1 x 12" woofer (P/N: 5050730), 310 mm (12 in) driver with 66 mm (2.5 in) voice-coil
    High Frequency Driver 1 x 2408H-2 driver with 25 mm (1 in) exit/35 mm (1.5 in) voice-coil
    Input Connector Dual Neutrik NL4MP connectors plus covered barrier trip terminals
    Enclosure 15 mm multi-ply hardwood plywood
    Grille Powder coated, 1.5mm perforated steel, with acoustically transparent black foam backing
    Finish Textured black paint finish. White (-WH) available upon request. Not available with WRC & WRX finish.
    Suspension / Mounting 14 x M10 and 4 x M10 for Wall Mount Bracket. Optional U-bracket, L-bracket and wall-mount bracket
    Dimensions (H x W x D) 600 mm x 370 mm x 392 mm 23.6 in x 14.5 in x 15.4 in
    Net Weight 17.4 kg (38.3lbs)
