JBL AC18/95 - 1000W 8 inch Passive Compact Speaker with Extreme Weather Protection Treatment

Product Code: JBL AC18-95-WRX

Key Features
Compact 2-Way Loudspeaker with 1 x 8" LF. 90° x 50° Coverage, Passive. Compact PT™ Progressive Transition™ Waveguide, Rotatable. With Extreme Weather Protection Treatment. WRC & WRX enclosures are larger than the standard enclosure. Visit www.jblpro.com to download AE Series 2D WRC & WRX drawings. MountU brackets do not fit WRC & WRX enclosures. Standard color is GRAY. Available in Black (-BK) & White (-WH). 8-10 weeks for 1-10 pcs if larger 10-or greater has to be reviewed.
Enquire Now
Qty Each (inc GST) Each
Estimated Lead time Contact Us
  • Features
  • Overview
  • Technical Specs
  • Documents

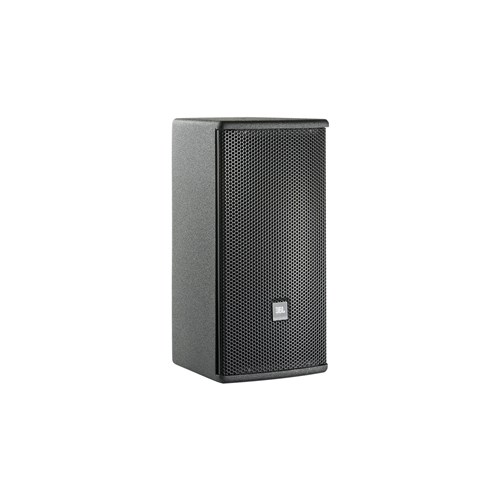

Compact 2-way Loudspeaker with 1 x 8" LF

High output, 2-way loudspeaker systems combining flexibility with high fidelity

Features

  • 1" Exit Compression Driver Coverage PT Waveguide
  • 205 mm (8 in) LF transducer
  • Compact enclosure
  • 500W Program
  • Dual Neutrik NL4 connectors plus screw terminal
  • Attachment points for optional U-bracket, third part OmniMount type bracket and stand mount accessory
  • Warranty

    We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

    Frequency Range 52 Hz - 20 kHz (-10 dB)
    Frequency Response 63 Hz – 19 kHz (±3 dB)
    Power Rating 250W Cont. Pink Noise 500W Program1000W Peak
    Impedance 8 ohms
    Coverage Pattern /26: 120 x 60/95: 90 x 50
    Dimensions (H x W x D) 469.9 x 237.5 x 254.0 mm (18.5 x 9.4 x 10.0 in)
    Weight 12.8 kg (28.2 lb)
