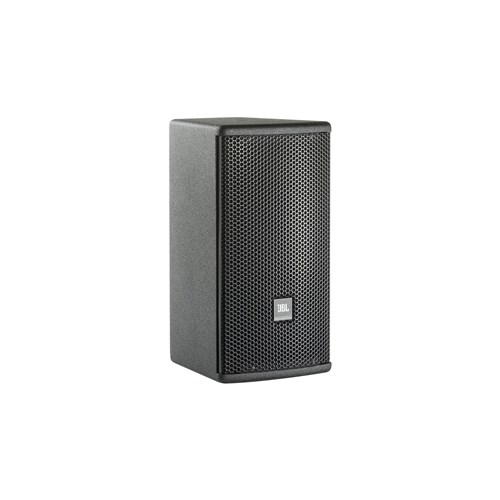

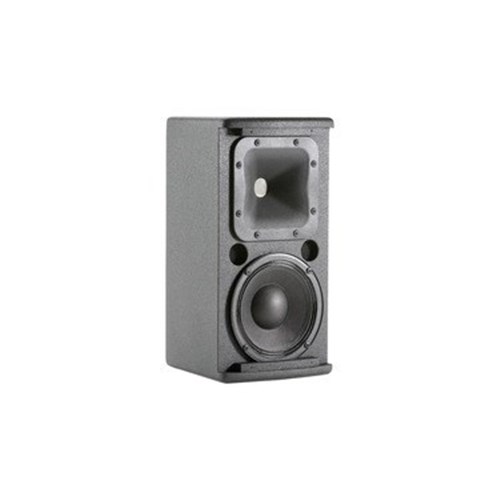

Name: JBL AC16-WH Ultra Compact 2-way Loudspeaker with 1 x 6.5 Inch LF White
Price: 2520.38 AUD

(EA)

Qty	Each (inc GST)	Each

High output, 2-way loudspeaker systems combining flexibility with high fidelity

1” Exit Compression Driver with 90° x 90° Coverage PT™ Waveguide
165 mm (6.5 in) LF transducer
Ultra compact enclosure
320W Program
Dual Neutrik NL4 connectors plus screw terminal
FIR Tuning Set Delivers Optimized Frequency & Phase Response, Coverage Consistency, and Sound Quality
Attachment points for optional U-bracket, third part OmniMount^®type bracket and stand mount accessory

Frequency Range (-10dB)	55 Hz -20 kHz
Frequency Response (±3 dB)	65 Hz -18 kHz
System Power Rating	250 W (AES rated) 160 W / 320 W / 640 W (Continuous/Program/Peak) (IEC rated)
Nominal Impedance	16 Ohms
Coverage Pattern	90° x 90°
Dimensions (H x W x D)	381.0 x 199.4 x 226.1mm (15.0 x 7.8 x 8.9in)
Net Weight (each)	7.2 kg (15.8 lb)
Crossover Modes	Passive
Maximum SPL (1m)	110 dB
System Sensitivity (1w @ 1m)	90 dB SPL
LF Driver	1 x JBL 226J, 165 mm (6.5 in) SFG™ driver with 50 mm (2 in) edge wound voice coil
Nominal LF Driver Impedance	16 Ohms
HF Driver	1 x 2414H 25 mm (1 in) exit compression driver, 25 mm (1 in) voice coil
Enclosure	12 mm and 15 mm exterior grade multi-ply hardwood plywood
Suspension Attachment	5 x M8 points; 1 top, 3 bottom, 1 rear. 4 x M6 rear for OmniMount® 30.0 and MultiMount® MM-022-BT, MM-024-BT, MM-020-CM.
Environmental	Mil-Std 810; IPx3 per IEC529. For higher environmental ratings, use WRC or WRX.

JBL AC16-WH Ultra Compact 2-way Loudspeaker with 1 x 6.5 Inch LF White
