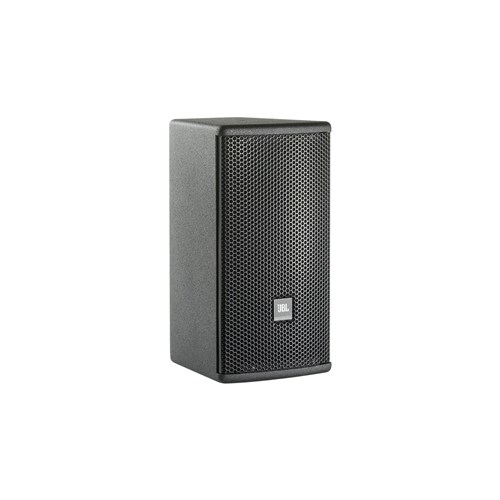

JBL AC16 - Ultra Compact 2-way Loudspeaker with 1 x 6.5 inch LF Weather Protection Treatment

Product Code: JBL AC16-WRC

Key Features
Ultra-Compact 2-Way Loudspeaker with 1 x 6.5" LF. 90° x 90° Coverage, Passive. Compact PT™ Progressive Transition™ Waveguide. With Weather Protection Treatment. WRC & WRX enclosures are larger than the standard enclosure. MountU brackets do not fit WRC & WRX enclosures. Standard color is GRAY. Available in Black (-BK) & White (-WH).
Enquire Now
Qty Each (inc GST) Each
Estimated Lead time Contact Us
  • Features
  • Overview
  • Technical Specs
  • Documents

Ultra Compact 2-way Loudspeaker with 1 x 6.5" LF

High output, 2-way loudspeaker systems combining flexibility with high fidelity

Features

  • 1" Exit Compression Driver with 90 x 90 Coverage PT Waveguide
  • 165 mm (6.5 in) LF transducer
  • Ultra compact enclosure
  • 320W Program
  • Dual Neutrik NL4 connectors plus screw terminal
  • Attachment points for optional U-bracket, third part OmniMount type bracket and stand mount accessory
  • Warranty

    We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

    Frequency Range 55 Hz -20 kHz (-10 dB)
    Frequency Response 65 Hz -18 kHz (±3 dB)
    Long-Term SystemPower Rating Continuous/Program/Peak160 W / 320 W / 640 W
    Impedance 16 ohms
    Coverage Pattern 90 x 90
    Dimensions (H x W x D) 381.0 x 199.4 x 226.1mm (15.0 x 7.8 x 8.9in)
    Weight 7.2 kg (15.8 lb)
