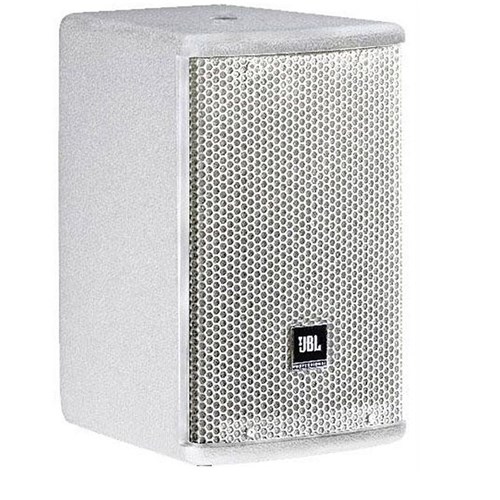

JBL AC15-WH - Ultra-Compact 2-Way Loudspeaker With 1 X 5.25 inch LF White - Priced as Each Sold as Pair

Product Code: JBL AC15-WH

Key Features

Features

  • 1” Dome Tweeter with 90° x 90° Coverage.
  • 135 mm (5.25 in) LF transducer
  • Ultra compact enclosure
  • 300W Program Power
  • Dual Neutrik NL4 connectors plus screw terminal
  • FIR Tuning Set Delivers Optimized Frequency & Phase Response, Coverage Consistency, and Sound Quality
  • Attachment points for optional U-bracket
$1,393.59 inc GST
(Each)
Increase value Decrease value
Qty Each (inc GST) Each
In Stock
  • Features
  • Overview
  • Technical Specs
  • Documents

JBL AC15WH (White) Ultra-Compact 2-Way Loudspeaker With 1 X 5.25" LF

Ultra Compact 2-way Loudspeaker with 1 x 5.25” LF

The AC15 is an ultra-compact full range loudspeaker system designed to provide maximum bandwidth and SPL in a single system package and yet be visually unobtrusive. The enclosure design allows for installation very close to walls and ceilings making it an ideal choice for under balcony, column, or wall mounting. The high frequency device is a 1” dome tweeter integrated into a newly designed 90° x 90° waveguide providing even coverage throughout the intended usage area. The combination exhibits smooth power response resulting in extremely natural voicing. The AC15 utilizes a 5.25” Symmetrical Field Geometry (SFG™) LF Transducer with a copper-clad aluminum edge wound 1.5” voice coil and a copper-capped pole piece that improves performance by reducing voice coil inductance and distortion.

The rugged multi-ply hardwood enclosure is designed to work in the vertical plane as well as in the horizontal plane. Mounting points are provided for an optional U-bracket and for an OmniMount® type bracket.

The rugged plywood enclosure features JBL’s textured DuraFlex™ finish and is equipped with a heavy-duty powder coated steel, foam-backed grille.

Important Order Information: The price displayed for this item is the price of a singe unit. However, this item is packaged and sold as a carton of 2 units. Please note, this item must be purchased in multiples of 2 units.

Warranty

We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Frequency Range (-10dB) 80 Hz -20 kHz
Frequency Response (±3 dB) 90 Hz -18 kHz
System Power Rating 225 W (AES rated)
150 W / 300 W / 600 W (Continuous/Program/Peak) (IEC rated)
Impedance 16 ohms
Coverage Pattern 90° x 90°
Dimensions (H x W x D) 241.3 x 150.3 x 177.8mm (9.5 x 5.9 x 7.0in)
Net Weight (each) 4.7 kg (10.5 lb)
Crossover Modes Passive
Maximum SPL (1m) 108 dB
System Sensitivity (1w @ 1m) 86 dB SPL
Nominal Section Impedances 16 ohms
LF Driver 1 x JBL 225J, 135 mm (5.25 in) SFG™ driver with 38 mm (1.5 in) edge wound voice coil
Nominal LF Driver Impedance 16 Ohms
HF Driver 1 x JBL 201J, 25 mm (1 in) voice coil dome tweeter
Enclosure 12 mm exterior grade multi-ply hardwood plywood
Suspension Attachment 4 x M8 points; 1 top, 1 bottom, 2 rear. 2 x M6 bottom for OmniMount® 20.5 or MultiMount® MM-008-BT
Environmental Mil-Std 810; IPx3 per IEC529.
