JBL AC118S-WH 18 inch High Power Subwoofer System White

Product Code: JBL AC118S-WH

Key Features
JBL AC118S-WH 18" Subwoofer, White, 18"
$3,345.54 inc GST
(Each)
Increase value Decrease value
Qty Each (inc GST) Each
In Stock
  • Features
  • Overview
  • Technical Specs
  • Documents

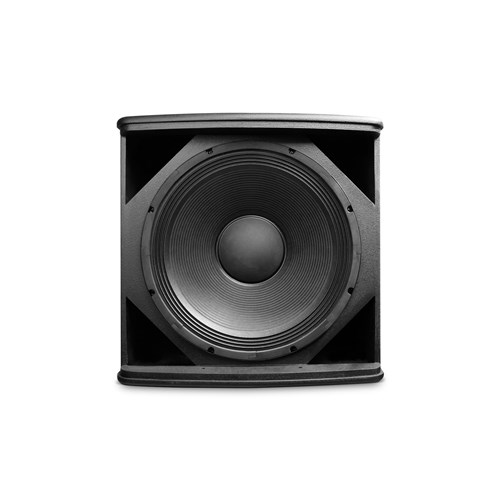

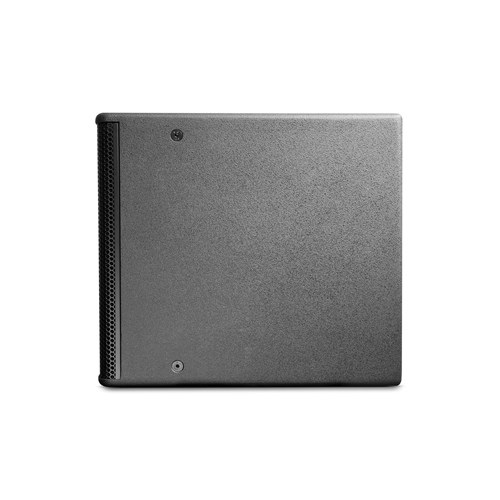

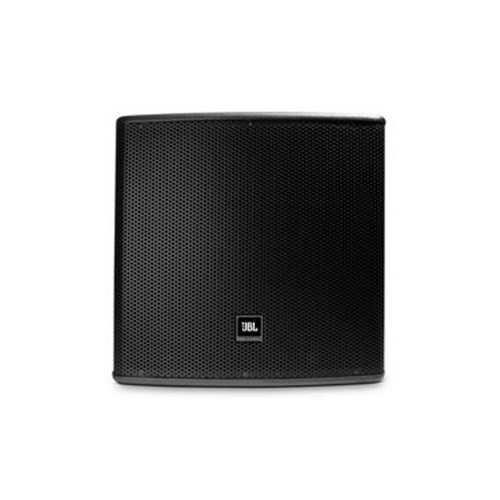

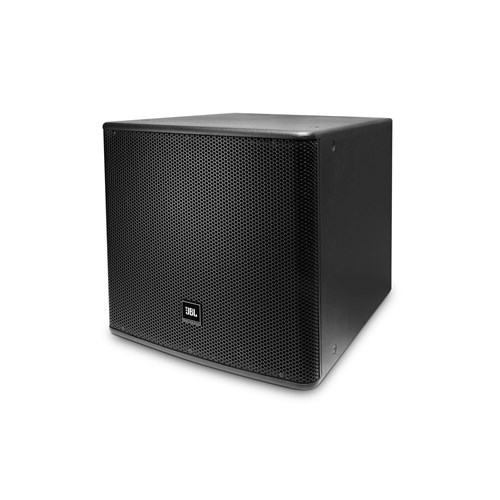

18" High Power Subwoofer System

AC118S is a high power subwoofer system comprised of one 459 mm (18 in) low frequency driver in a vented, front-loaded configuration for extended bandwidth. The rectangular cabinet is fitted with M10 threaded suspension points for ultimate flexibility.

As a part of JBL’s AE Application Engineered Series, a versatile family of loudspeakers for a wide variety of fixed installation applications, AC118S provides a natural low-frequency sound quality.

Features

  • High power and long excursion driver for lower frequency reproduction.
  • High sensitivity with lower power compression
  • Large port for high output and low-frequency reinforcement
  • Multiple Attachment Points for Ultimate Flexibility
  • Robust 18 mm multiply hardwood with textured black finish

Applications

  • Performing Spaces
  • Clubs & Bars
  • Houses of Worship
  • Multi Media Spaces
  • Retail & Hospitality Spaces
  • Presentation Suites
  • Educational Facilities
Warranty

We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Frequency Range (-10dB) 32 Hz - 250 Hz
Frequency Response (±3 dB) 40 Hz - 250 Hz
System Sensitivity (1w @ 1m) 95 dB
Nominal Impedance 8 ohms
Maximum SPL (1m) 122 dB (128 dB peak)
System Power Rating 600W (2400W peak), 2 hrs (AES rated)
450 W/900 W/1800 W (Continuous/Program/Peak) (IEC rated)
LF Driver 1x 18″ woofer (P/N: 5021800), 457.2 mm (18 in) driver with 75 mm (3 in) voice-coil
Input Connector Dual Neutrik NL4MP connectors plus covered barrier trip terminals
Enclosure 18 mm multi-ply hardwood plywood
Grille Powder coated, 1.5mm perforated steel, with acoustically transparent black foam backing
Finish Textured black paint finish. White (-WH) available upon request. Not available with WRC & WRX finish.
Suspension Attachment 12 x M10 threaded suspension points
Dimensions (H x W x D) 548 mm x 561 mm x 720 mm 21.5 in x 22.0 in x 28.3 in
Net Weight (each) 32.3 kg (71.2 lbs)
Nominal LF Driver Impedance 8 ohms

Accessories

JBL 2290000901 Kit Sp/Vs Set Of Three M10 X 35Mm Forged Shoulder Steel Ey
JBL 2290000901 Kit Sp/Vs Set Of Three M10 X 35Mm Forged Shoulder Steel Ey JBL 229-00009-01
In Stock
$136.60 (Each)
Increase value Decrease value View Product
