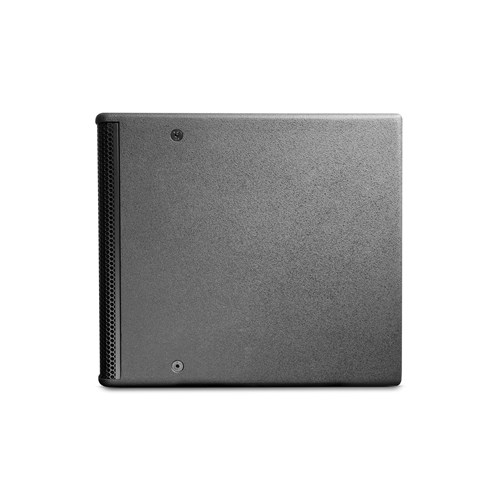

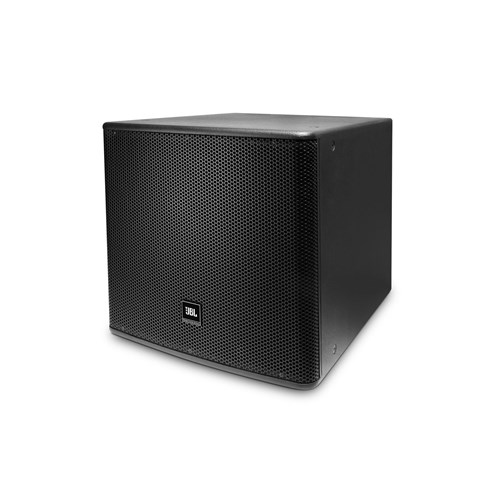

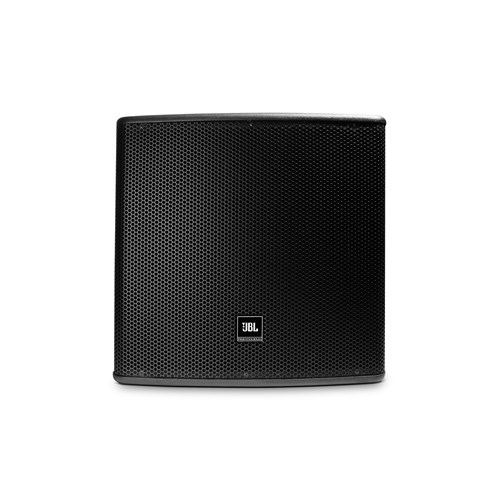

JBL AC118S - 18 inch High Power Subwoofer System Black

Product Code: JBL AC118S-BK

Key Features
18" Subwoofer with 75mm (3 in) voice coil. (Priced as each)
$3,345.54 inc GST
(Each)
Increase value Decrease value
Qty Each (inc GST) Each
In Stock
  • Features
  • Overview
  • Technical Specs
  • Documents

18" High Power Subwoofer System

AC118S is a high power subwoofer system comprised of one 459 mm (18 in) low frequency driver in a vented, front-loaded configuration for extended bandwidth. The rectangular cabinet is fitted with M10 threaded suspension points for ultimate flexibility.

As a part of JBL's AE Application Engineered Series, a versatile family of loudspeakers for a wide variety of fixed installation applications, AC118S provides a natural low-frequency sound quality.

Features

  • High power and long excursion driver for lower frequency reproduction.
  • High sensitivity with lower power compression
  • Large port for high output and low-frequency reinforcement
  • Multiple Attachment Points for Ultimate Flexibility
  • Robust 18 mm multiply hardwood with textured black finish
  • Applications

  • Performing Spaces
  • Clubs & Bars
  • Houses of Worship
  • Multi Media Spaces
  • Retail & Hospitality Spaces
  • Presentation Suites
  • Educational Facilities
  • Warranty

    We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

    Frequency Range (-10 dB) 32 Hz - 250 Hz
    Frequency Response (±3 dB) 40 Hz - 250 Hz
    System Sensitivity (1w @ 1m) 95 dB
    Nominal Impedance 8 ohms
    Maximum SPL(1m) 122 dB (128 dB peak)
    Power Rating(Continuous/Program/Peak) 450 W/900 W/1800 W

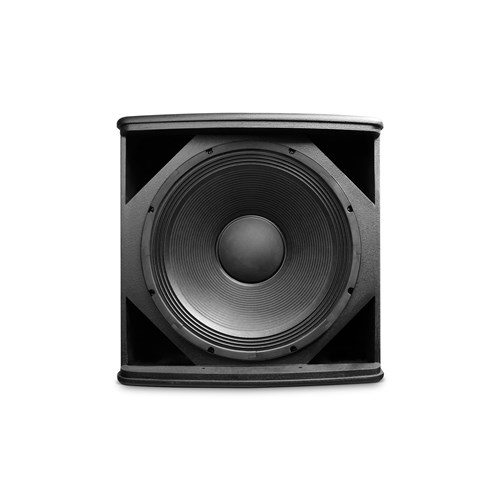

    Low Frequency Driver 1x 18" woofer (P/N: 5021800), 457.2 mm (18 in) driver with 75 mm (3 in) voice-coil
    Input Connector Dual Neutrik NL4MP connectors plus covered barrier trip terminals
    Enclosure Material 18 mm multi-ply hardwood plywood
    Grille Powder coated, 1.5mm perforated steel, with acoustically transparent black foam backing
    Finish Textured black paint finish. White (-WH) available upon request. Not available with WRC & WRX finish.
    Suspension / Mounting 12 x M10 threaded suspension points
    Dimensions (H x W x D) 548 mm x 561 mm x 720 mm 21.5 in x 22.0 in x 28.3 in
    Net Weight 32.3 kg (71.2 lbs)
