JBL 15-inch Powered Flyable Subwoofer

Product Code: JBL SRX915SF

Key Features
  • High-performance, high-density system solution in a truck-pack friendly format
  • High-power-handling transducers deliver low distortion and class-leading output
  • Built-in, passively-cooled Class D amplification with a universal power supply
  • Dual Ethernet ports with Neutrik etherCON connectors
  • Complete control and configuration with JBL Performance software over HARMAN's HControl protocol
  • User-controllable DSP
  • LevelMax limiting uses sophisticated excursion-control algorithms to protect transducers

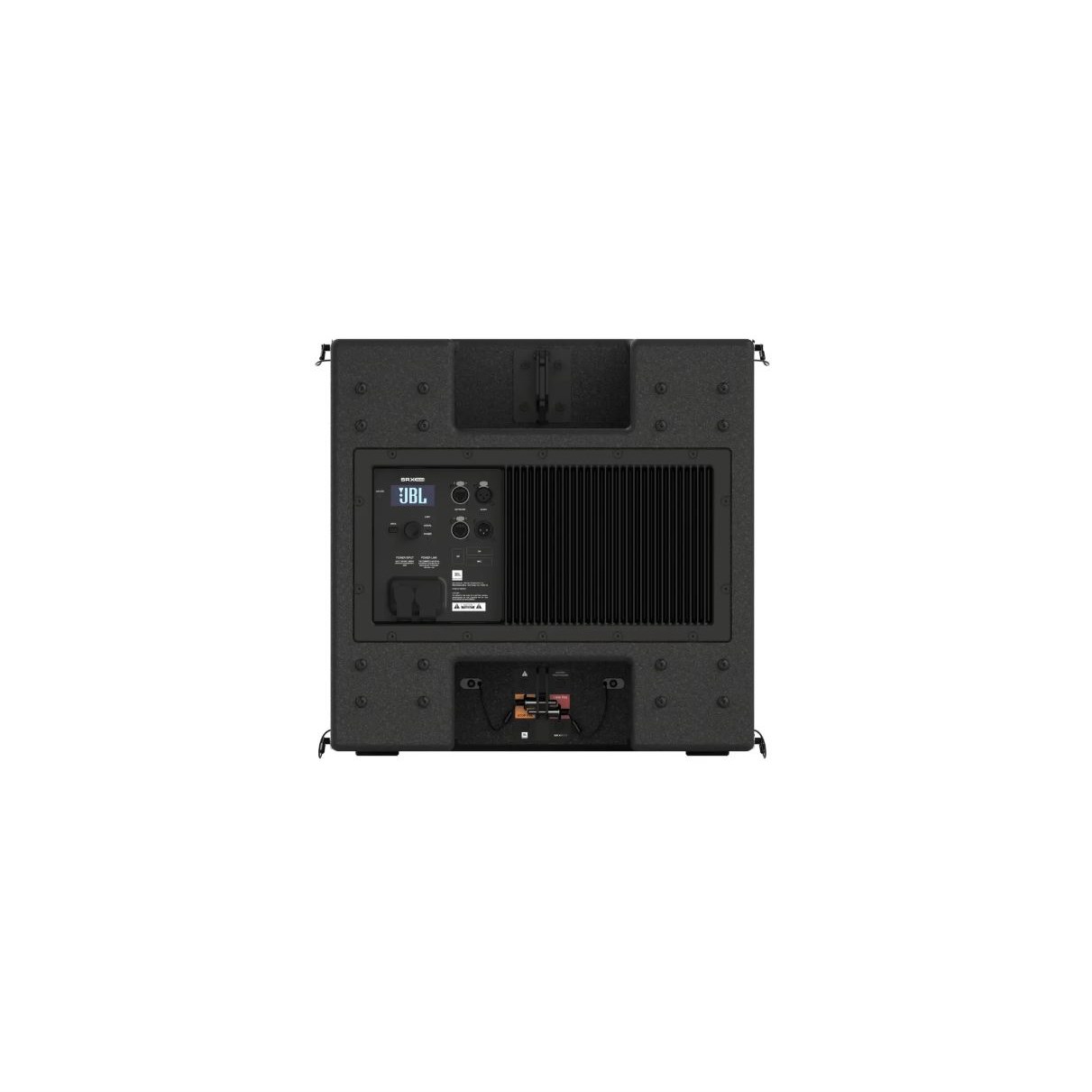

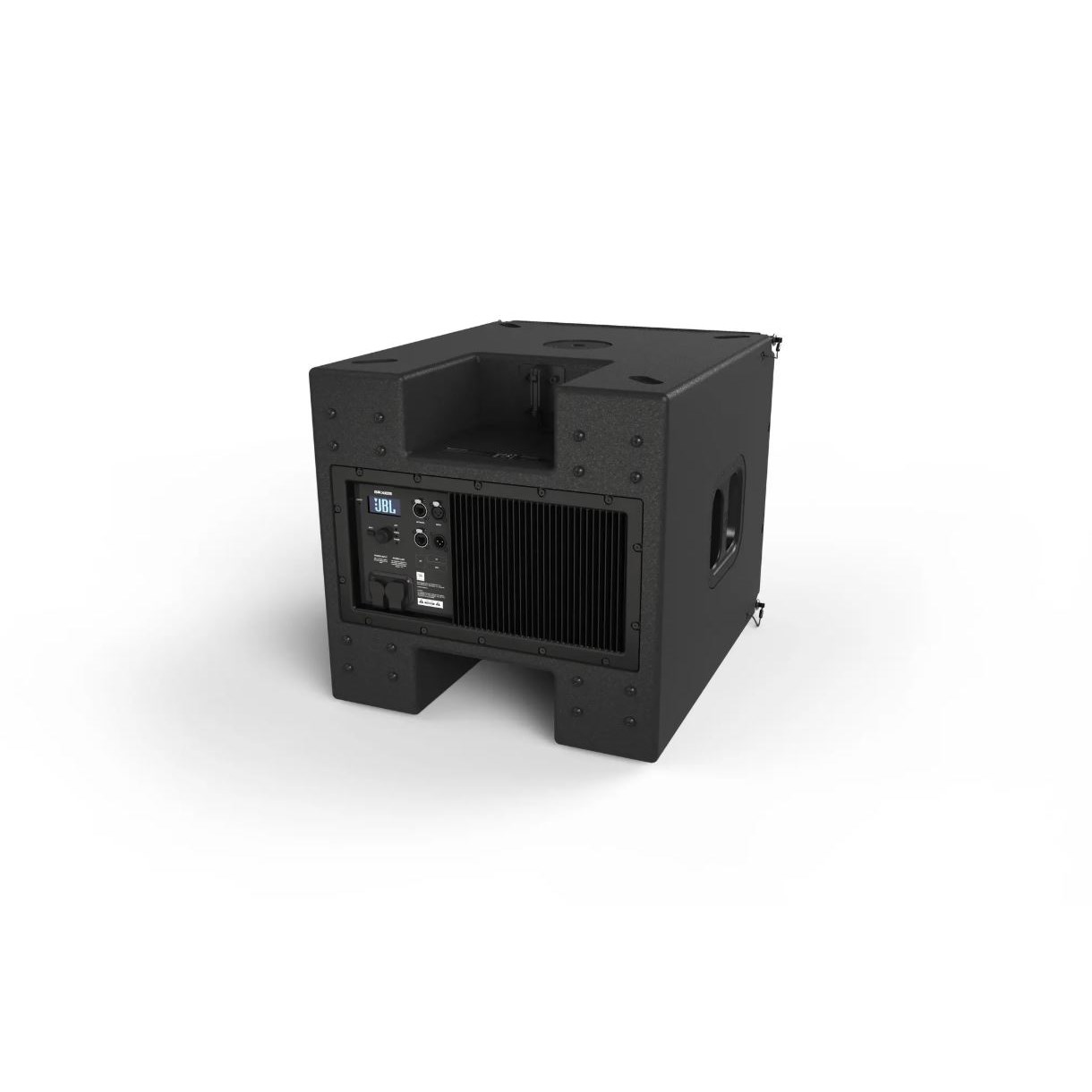

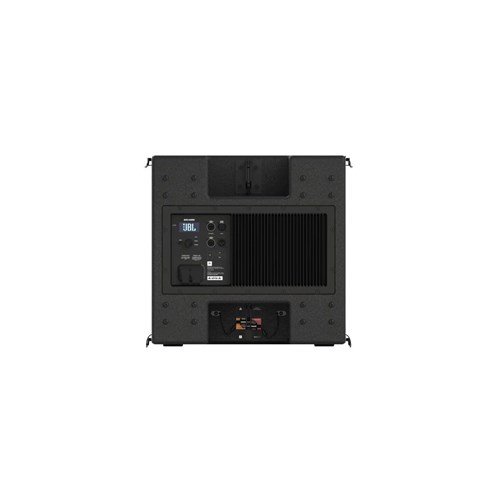

  • Rear-panel LCD provides access to control features
  • Reinforced birch plywood enclosures
  • M20 threaded mount for pole mounting or ground stacking full range components
  • Integrated three-point rigging system
Enquire Now
Qty Each (inc GST) Each
Stock on order
  • Features
  • Overview
  • Technical Specs
  • Documents

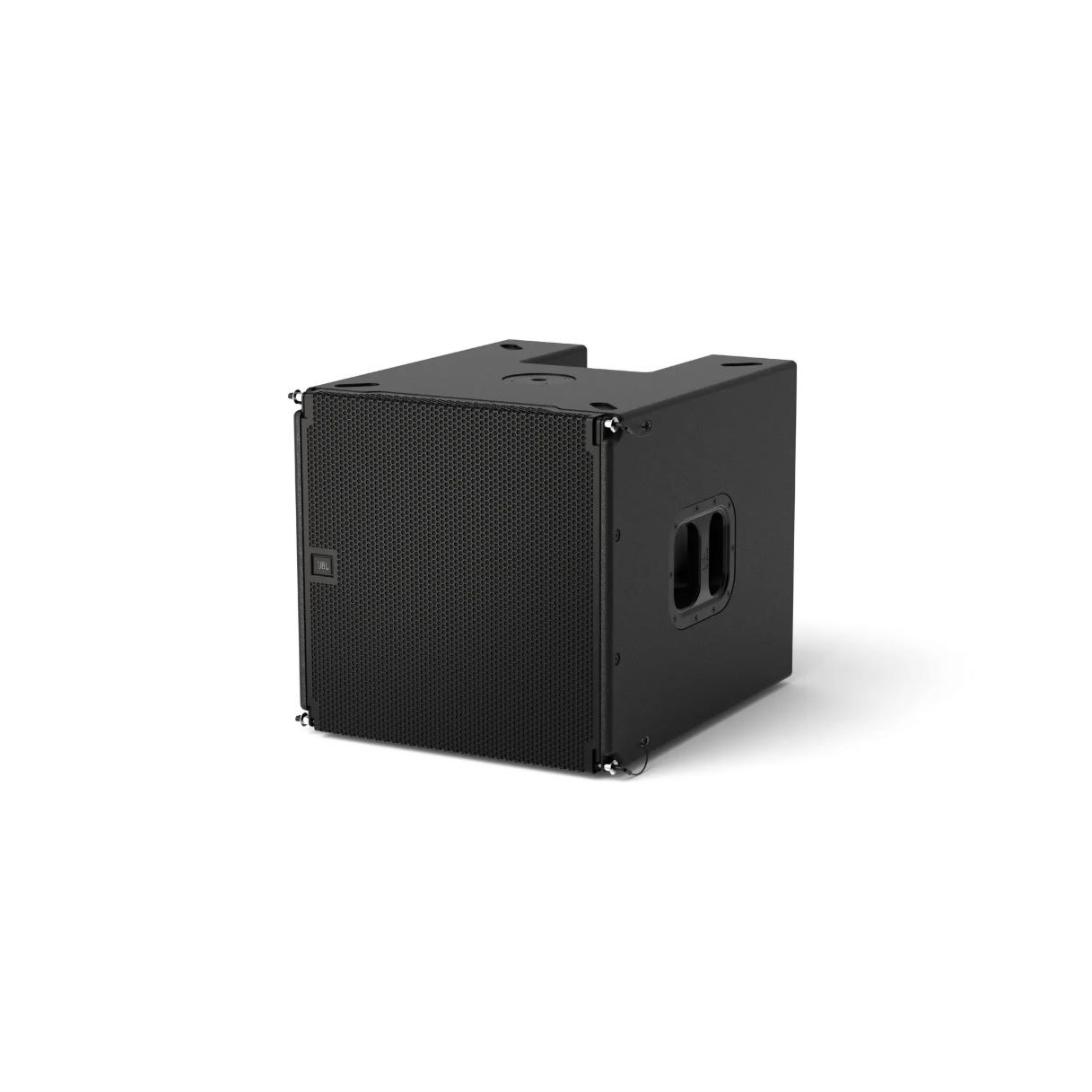

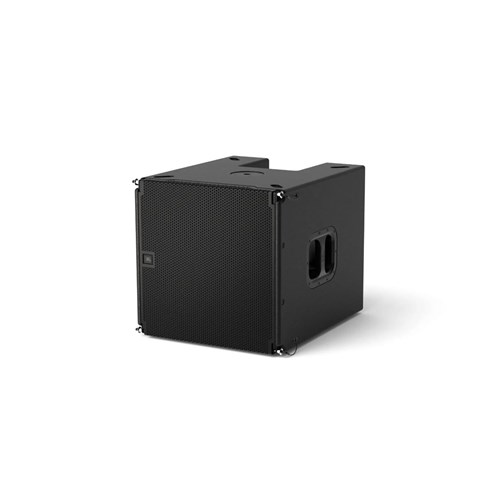

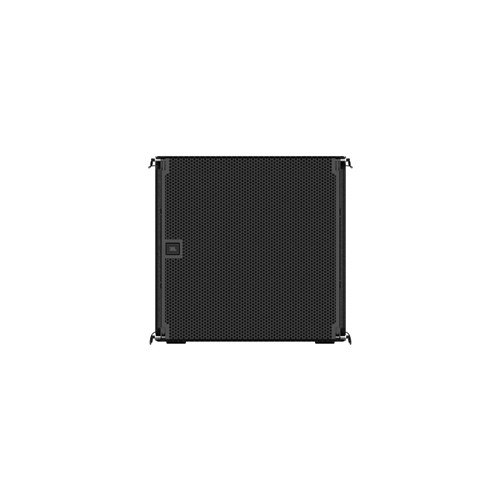

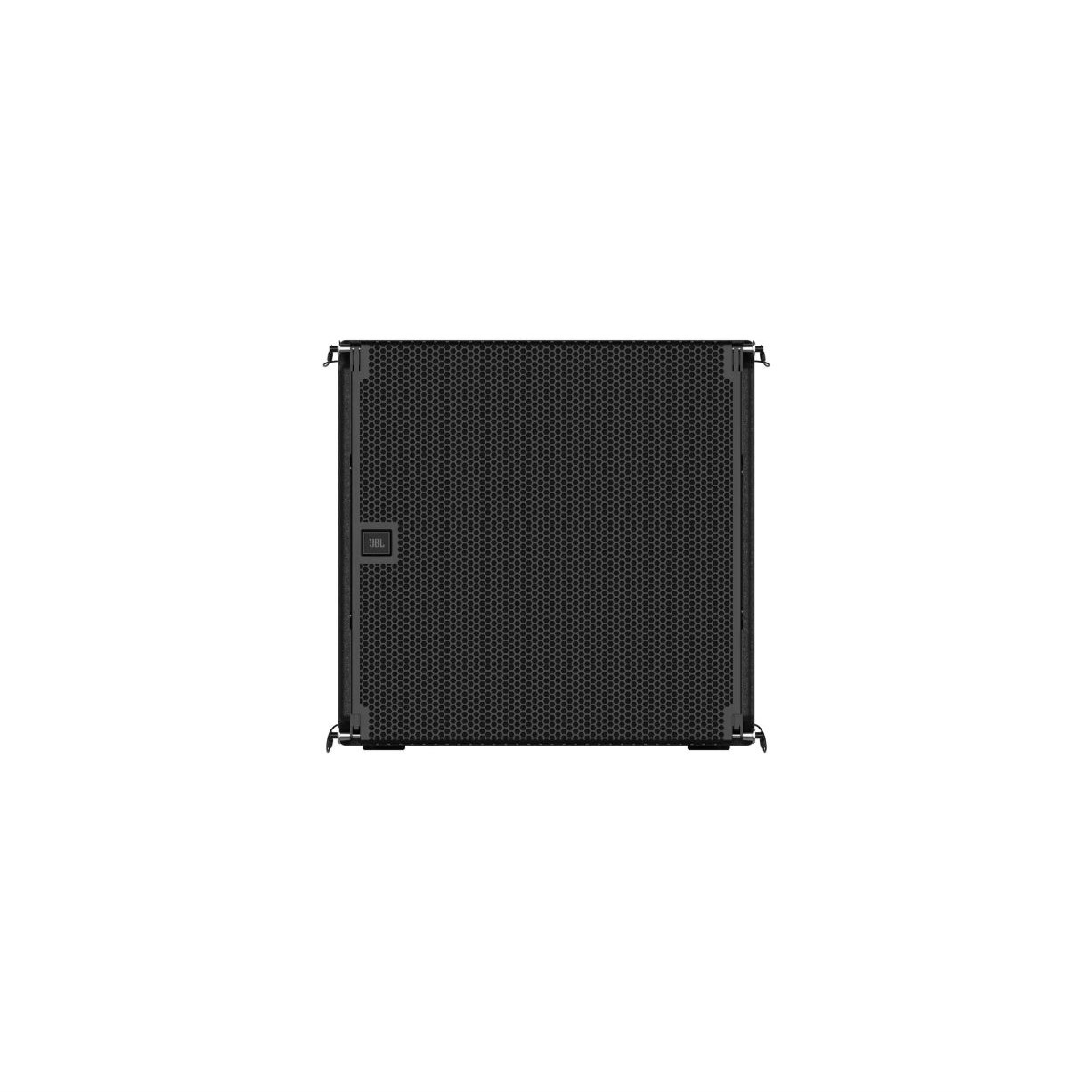

JBL 15-inch Powered Flyable Subwoofer

AV Technology InfoComm 2025 Best of Show Award

The SRX915SF is a powered, flyable, single 15-inch subwoofer designed to be deployed in suspended or ground-stacked configurations to complement SRX900 Series full-range systems. The integrated three-point rigging system in the SRX915SF allows units to be suspended in standalone arrays or in combination with SRX906LA cabinets in mixed-array configurations.

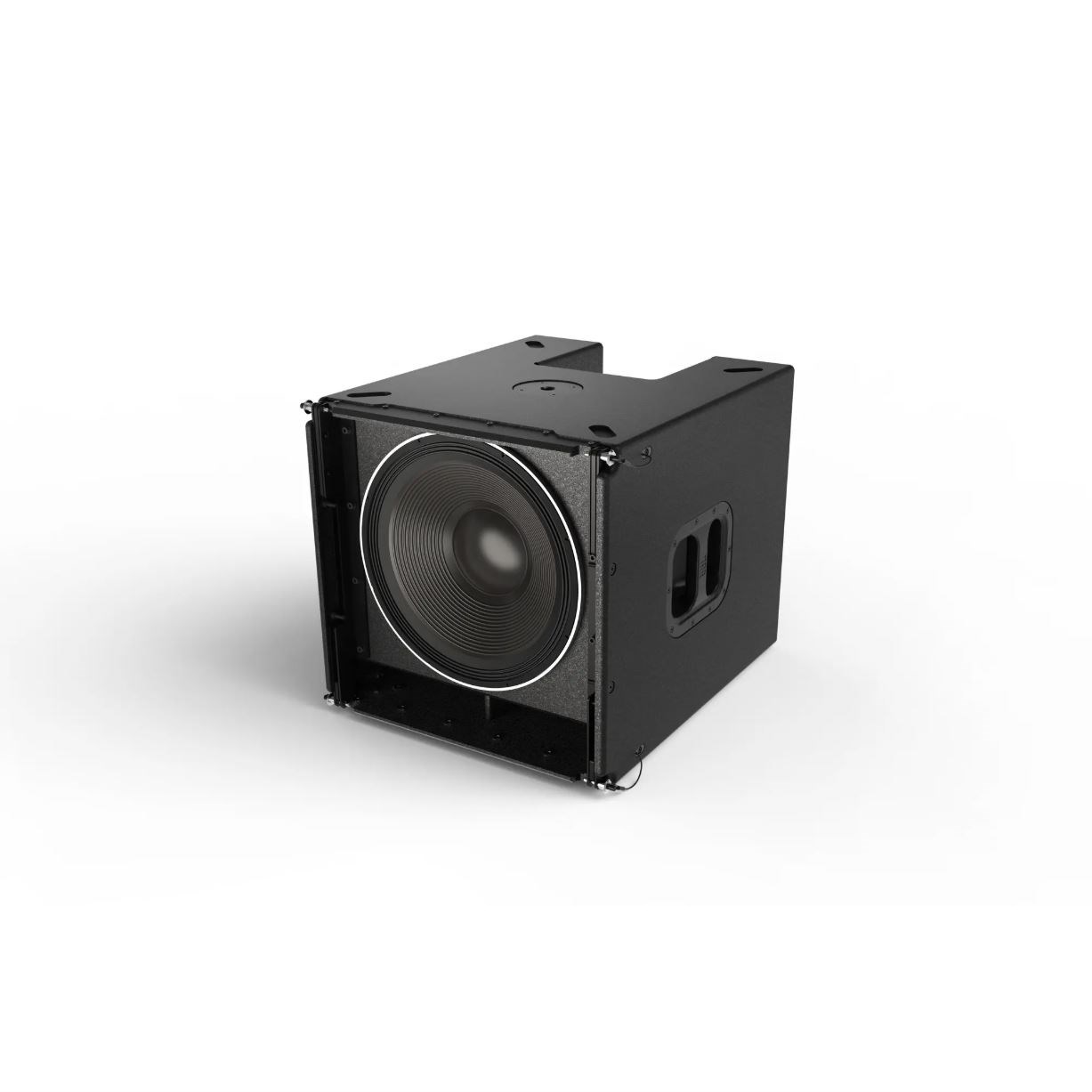

The subwoofer houses a JBL 2276H 15-inch woofer featuring Differential Drive® – JBL’s dual voice coil, dual gap technology – to deliver better heat dissipation, lower power compression, and wider dynamic range than conventional single-coil designs. Built-in DSP and amplification offer a plug-and-play experience while providing consistency and optimum performance anywhere in the world.

The SRX915SF incorporates a large low-frequency port design that improves airflow and reduces audible turbulence, even at high output levels. A reinforced 18 mm birch plywood cabinet ensures enhanced strength and durability. A full-featured software package gives users complete control of the system on various platforms, including Windows, macOS, and iPad OS.









Warranty

We offer a 5 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Frequency Range (-10dB) 36 Hz-100 Hz (Preset: 80 Hz)
Coverage Pattern Omnidirectional or Cardioid
Maximum SPL 130 dB
System Type Active Subwoofer
Amplifier Design Class-D
Continuous Power Rating 1,100 Watts
LF Driver (1) JBL 2276H, 15 in diameter, 8 ohms, dual 3.0 in diameter voice coil, ferrite Differential Drive®
Enclosure Exterior grade birch plywood, Black DuraFlexTM finish
Dimensions (H x W x D) 493 mm x 507 mm x 610 mm
(19.4 in x 20.0 in x 24.0 in)
Net Weight (each) 39 kg (86 lbs)
