Icron Technologies USB 3-2-1 Raven 3204C 4-Port USB 3-2-1 100m CAT 6a/7 USB-C Extender System Silver

Product Code: IC 00-00474

Key Features
  • USB 3 5Gbps throughput at all four ports
  • Supports all USB 3, 2, 1.1 devices simultaneously at full bandwidth
  • If USB 3 isochronous support is needed, Raven 3204C Pro is recommended
  • Power the LEX (Local Extender) using the USB-C connection to the host*

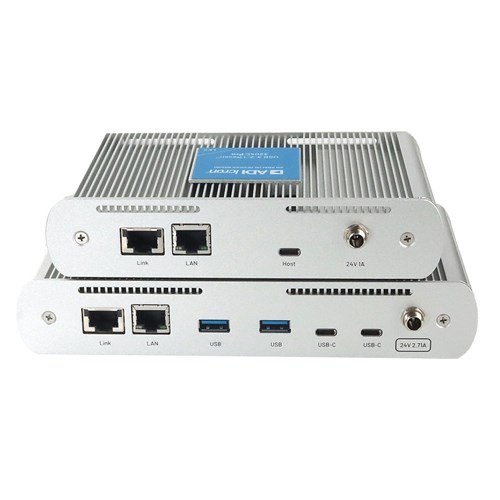

  • The REX (Remote Extender) includes 2 USB-C ports and 2 USB-A ports
  • Delivers 3A at each USB-C port and 1.2A at each USB-A port
  • 100/1000 Ethernet channel; LAN pass-through
  • Compatible with all major UC conferencing applications
  • Includes the ExtremeUSB-C™ suite of features:
  • Transparent USB extension supporting USB 3, 2 and 1
  • True plug and play; no software drivers required
  • Works with all major operating systems; Windows®, macOS™, Linux® and ChromeOS™
$2,566.66 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
Stock on order
  • Features
  • Overview
  • Technical Specs
  • Documents

Icron Technologies USB 3-2-1 Raven 3204C 4-Port USB 3-2-1 100m CAT 6a/7 USB-C Extender System Silver

Icron Raven 3204C extends USB 3 (5Gbps), USB 2.0 and USB 1.1 devices up to 100m (330 ft) from a host computer across a point-to-point CAT 6a/7 connection. The Raven 3204C delivers the same exceptional performance as the Raven 3104, in a smaller, lighter design, with USB-C ports available for the host and extended devices.

Extend USB cameras, sound bars, touchscreens, hubs, DACs and other USB-A or USB-C peripherals past the maximum length of a standard USB 3 cable (1.8m/6ft) to a PC or laptop across the conference room or to an IT closet with standard CAT 6a/7 cabling. Use the LAN pass-through port to deliver IP control to any connected USB devices.

Warranty

We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

USB Type USB 3.0, 2.0, 1.1
Transmission Media Cat 6a/7
Number Of USB Ports 4 - Ports
Max. Distance Up to 100m
Power Adapter Location LEX and REX
USB Throughput 5 Gbps
Power Requirements 24V DC, 1A
USB Hub/Tier Usage 2 hubs total, 1 on LEX and 1 on REX
