Icron USB 3-2-1 Raven 3124 Four Port Multimode Fibre 200m Extender

Product Code: IC 00-00440

Key Features
  • USB 3.1 Gen 1 data rate up to 5Gbps
  • Supports all USB 3.1, 2.0, 1.1 devices simultaneously at full bandwidth
  • Four available 3.1 Gen 1 ports
  • 100 Mbps Ethernet channel; LAN pass-through
  • Single cable, OM3 Multimode Fiber up to 200m
  • Point-to-point connection
  • FCC and CE (Class B) compliant
$2,198.54 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
In Stock
  • Features
  • Overview
  • Technical Specs
  • Documents

Icron USB 3-2-1 Raven 3124 Four Port Multimode Fibre 200m Extender

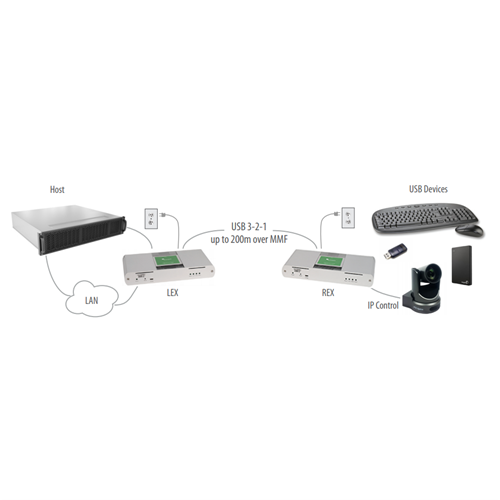

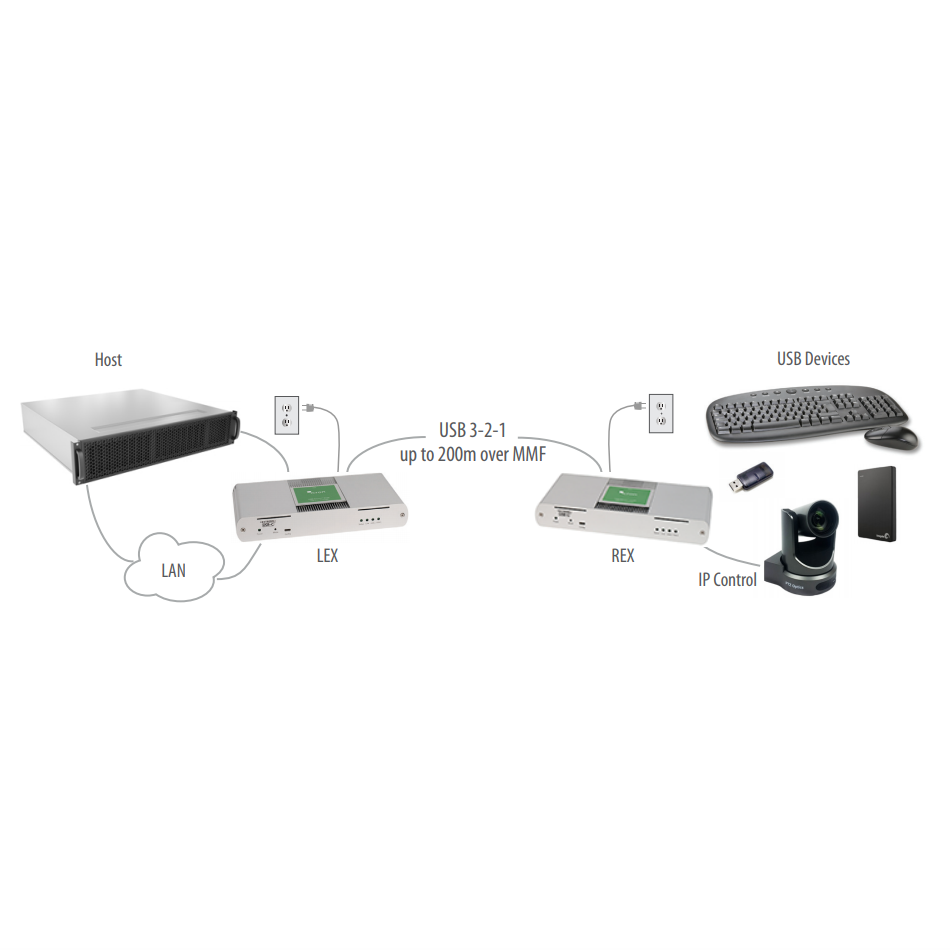

Icron’s USB 3-2-1 Raven 3124 extender system is backward compatible to USB 2.0/1.1 and provide the ability to connect all USB 3.1 Gen 1 (5 Gbps) device types to a host across a point-to-point connection up to 200m over multi-mode fibre. The Raven provides an Ethernet pass-through for connecting to network enabled devices or to use existing infrastructure without losing LAN connectivity, and includes the ExtremeUSB-C™ suite of features: transparent USB extension, true plug and play (no software drivers required) and compatibility with all major operating systems.



Includes the ExtremeUSB-C™ suite of features:

  • Transparent USB extension supporting USB 3, 2 and 1
  • True plug and play; no software drivers required
  • Works with all major operating systems: Windows®, macOS™, Linux® and Chrome OS™

Applications:

  • Remote Storage
  • Security and Monitoring
  • Video Matrix Systems
  • Conferencing Cameras
Warranty

We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Trade Terms
This item is a firm order product, meaning it cannot be cancelled or returned once the purchase order is processed, except in cases of defect. Please verify that part numbers and descriptions are accurate before placing your order. For any confirmation or additional information, please contact AV Sales at 1800 00 77 80.
LEX (LOCAL EXTENDER) MECHANICAL DATA:
Dimensions: 137.3mm x 232.1mm x 33.0mm (5.4" x 9.1" x 1.3")
USB 3.1 B Receptacle 1
RJ45 Ethernet 100Mbps Port 1
Duplex LC 1
24V 1A DC Locking Jack Yes
Weight 920g (2.03 lbs.)
REX (REMOTE EXTENDER) MECHANICAL DATA:
Dimensions: 137.3mm x 232.1mm x 33.0mm (5.4" x 9.1" x 1.3")
USB 3.1 A Receptacles 4
RJ45 Ethernet 100Mbps Port 1
Duplex LC 1
24V 2.71A DC Locking Jack Yes
Weight 990g (2.18 lbs.)
PACKAGE CONTENTS:
LEX (Local Extender) 1
REX (Remote Extender) 1
USB 3.1 Gen 1 Cable 1
International Locking AC Adapters 2
Country Specific Power Cords 2
Quick Start Guide 1
Packaged weight: 2.67kg (5.87 lbs.)
RANGE:
Point-to-Point: Up to 200m over OM3 Multimode Fiber
USB SUPPORT:
USB Speeds: SuperSpeed 5Gbps, High-Speed, Full-Speed, Low-Speed
USB Bandwidth: Up to 5Gbps
Device Compatibility: All Device Types and Hubs
Host Compatibility: OHCI, UHCI, EHCI, xHCI
Available Current at REX: 1.2A (6W) per USB port
Max Number of USB Devices: 30
ENVIRONMENTAL:
Temperature: 0 OC – 50 OC (32 OF – 122 OF) Operating, -20 OC – 70 OC (-4 OF – 158 OF) Storage
Humidity: 20-80% Operating, 10-90% Storage Relative Humidity Non-Condensing
