Icron USB 2.0 Ranger 2344 Four Port Singlemode Fiber Optic 10km Extender

Product Code: IC 00-00419

Key Features
The USB 2.0 Ranger 2344 extends high-speed USB 2.0 connections at up to 480 Mbps over 10km (6.2 miles) of singlemode fibre optic cable. This 4-port USB 2.0 singlemode fibre extender with ExtremeUSB is perfect for: keyboards, mice, interactive white boards, flash drives, hard drives, audio devices, USB 2.0 web cameras and any other USB 2.0 or 1.1 device.
$2,746.34 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
Estimated Lead time 4-6 weeks
  • Features
  • Overview
  • Technical Specs
  • Documents

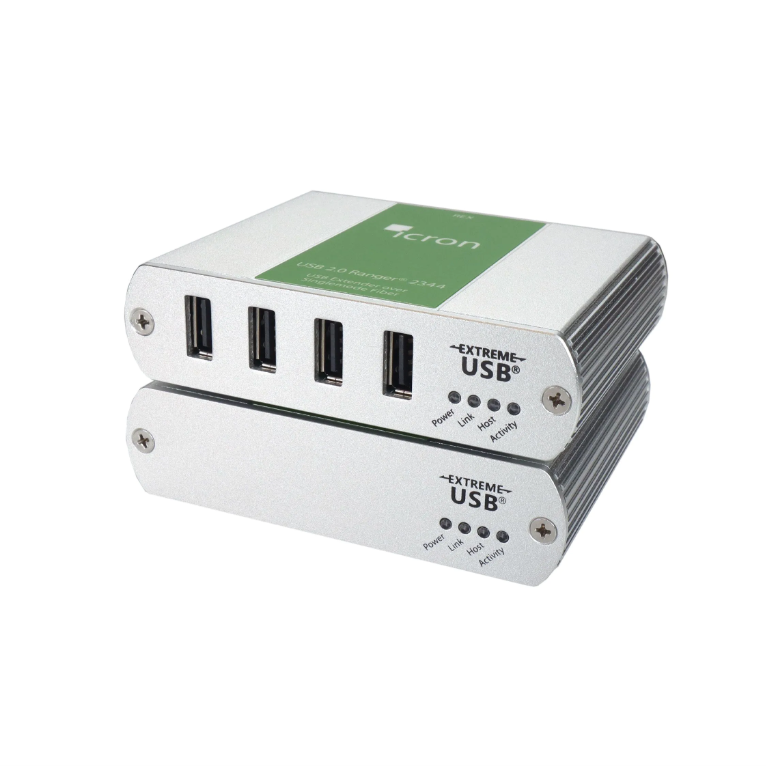

Icron USB 2.0 Ranger 2344 Four Port Singlemode Fiber Optic 10km Extender

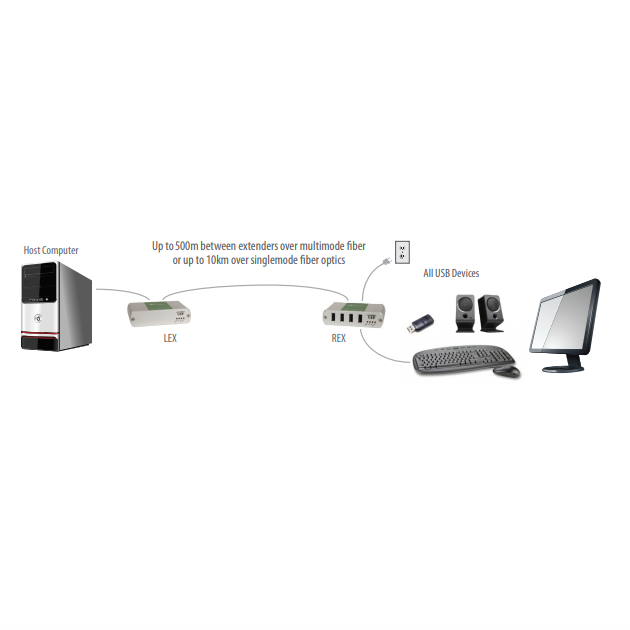

The USB 2.0 Ranger® 2344 allows users to extend USB 2.0/1.1 connections up to 10km (6.2 miles) using singlemode fibre optic cable.

This 4-port USB 2.0 singlemode fibre extender supports data rates at up to 480 Mbps and is plug and play – no software drivers required – for all major operating systems: Windows®, macOS™, and Linux®.

Additionally, this ExtremeUSB® based USB 2.0 singlemode fibre extender system is FCC/CE Class B certified and ideal for use with all USB peripherals including: keyboards, mice, interactive white boards, flash drives, hard drives, audio devices, web cameras and any other USB 2.0 or 1.1 device.

Features

  • 4-port USB 2.0 extender supporting all USB 2.0/1.1 devices up to 480 Mbps
  • Up to 10km (6.2 miles) extension using singlemode fibre
  • Integrated hub supplying up to 1 Amp to each USB port; 2.5 Amps total shared
  • Electrical isolation
  • Mass Storage Acceleration for USB 2.0 device bulk transfers
  • Metal enclosures with FCC/CE Class B certification
  • Two year warranty
  • ExtremeUSB® suite of features:
    • Transparent USB extension
    • True plug and play; no software drivers required
    • Works with all major operating systems:  Windows®, macOS™ and Linux®

Inclusions

The USB 2.0 Ranger 2344 extender system includes:

  • Local Extender (LEX)
  • Remote Extender (REX)
  • SFP singlmode transceiver modules
  • 2 metre USB cable
  • Quick Start Guide
  • International power adapter with country specific cord (North America, EU, UK, Australia/NZ, or Japan)
  • Two year warranty

Applications

  • Industrial Control
  • KVM Extension
  • Digital Signage
  • Home Network Integration
  • Medical Device Connectivity
  • Security: web camera, access control
Warranty

We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Trade Terms
This item is a firm order product, meaning it cannot be cancelled or returned once the purchase order is processed, except in cases of defect. Please verify that part numbers and descriptions are accurate before placing your order. For any confirmation or additional information, please contact AV Sales at 1800 00 77 80.
DISTANCE:
Ranger 2344: Up to 10km over Singlemode Fiber
USB DEVICE SUPPORT SPEEDS:
Maximum Throughputs: USB 2.0: Up to 480 Mbps, USB 1.1: Up to 12 Mbps
Traffic Types: All USB 2.0 and 1.1 Traffic Types
Device Types: All USB 2.0 and 1.1 Device Types
Maximum Number: Up to 30 devices
LEX (LOCAL EXTENDER):
USB Connector: 1 x USB Type B Receptacle
Link Connector: 1 x SFP Duplex LC
Dimensions: 100.0mm x 76.0mm x 26.0mm (3.9" x 3.0" x 1.0")
Enclosure Material: Silver Anodized Aluminum
REX (REMOTE EXTENDER):
USB Connectors: 4 x USB Type A Receptacles
Link Connector: 1 x SFP Duplex LC
Dimensions: 100.0mm x 76.0mm x 26.0mm (3.9" x 3.0" x 1.0")
Enclosure Material: Silver Anodized Aluminum
Available Current: Up to 600mA to each USB port concurrently
Power Supply: 100-240V AC Input, 24V 1A DC Output
ENVIRONMENTAL:
Operating Temperature: 0°C to 50°C (32°F to 122°F)
Storage Temperature: -20°C to 70°C (-4°F to 158°F)
Operating Humidity: 20% to 80% Relative Humidity, Non-Condensing
Storage Humidity: 10% to 90% Relative Humidity, Non-Condensing
COMPLIANCE:
EMC: FCC (Class B), CE (Class B)
Environmental: RoHS2 (CE)
