Icron Technologies USB 2.0 Ranger 2311 Single Port Flexible Power CAT 5e/6/7 100m Extender

Product Code: IC 00-00404

Key Features
The USB 2.0 Ranger 2311 with flexible power extends high-speed USB 2.0 connections up to 100m using CAT 5e/6/7 with the option to power either the LEX (Local Extender) or REX (Remote Extender). This USB 2.0 extender with flexible power is perfect for: keyboards, mice, interactive white boards, flash drives, hard drives, audio devices, USB 2.0 web cameras and any other USB 2.0 or 1.1 device.
$711.44 inc GST
(Each)
Increase value Decrease value
Qty Each (inc GST) Each
In Stock
  • Features
  • Overview
  • Technical Specs
  • Documents

Icron Technologies USB 2.0 Ranger 2311 Single Port Flexible Power CAT 5e/6/7 100m Extender

The USB 2.0 Ranger 2311 allows users to extend USB 2.0/1.1 connections up to 330 ft (100m) over a single CAT 5e/6/7 cable.

This USB 2.0 extender with flexible power provides installers the choice of applying power at either the LEX or REX, wherever most convenient. The Ranger 2311 is plug and play – no software drivers required – and works with all major operating systems: Windows, macOSTM, and Linux

Additionally, this ExtremeUSB based extension system is ideal for use with all USB peripherals including: keyboards, mice, interactive white boards, flash drives, hard drives, audio devices, web cameras and any other USB 2.0 or 1.1 device.

Features

  • USB 2.0 extender with flexible power – connect the power adapter to either the LEX or REX
  • Supplies up to 1 Amp to USB port
  • Mass Storage Acceleration for USB 2.0 device bulk transfers
  • Supports all USB 2.0/1.1 devices up to 480 Mbps
  • Two year warranty

ExtremeUSB suite of features:

  • Transparent USB extension
  • True plug and play; no software drivers required
  • Works with all major operating systems:  Windows, macOSTM, and Linux

Inclusions

The USB 2.0 Ranger 2311 extender system with flexible power includes:

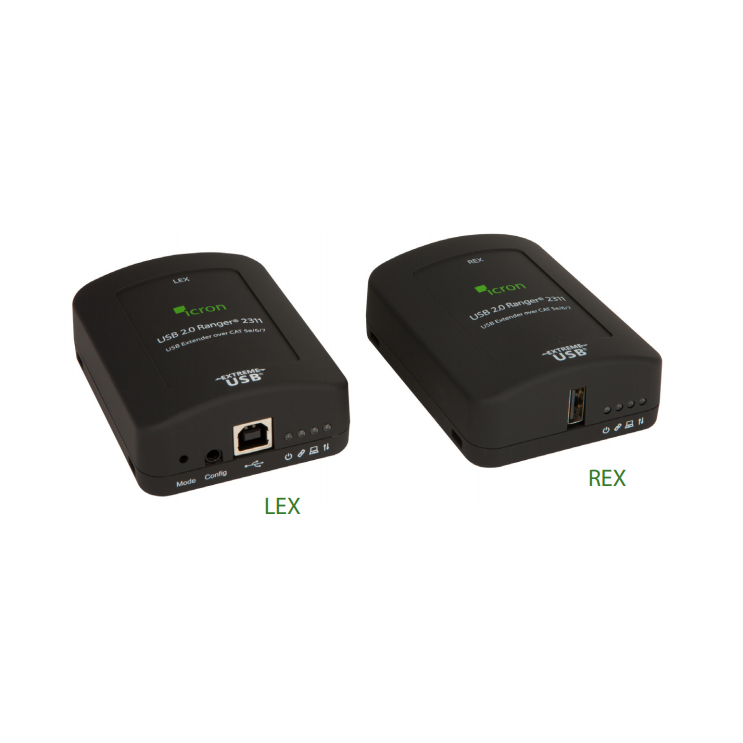

  • Local Extender (LEX) module
  • Remote Extender (REX) module
  • USB Cable
  • Quick Start Guide
  • International power adapter with country specific cord (North America, EU, UK, Australia/NZ, or Japan)
  • Two year warranty

Applications

  • Industrial Control
  • Interactive white board
  • Keyboard and mouse extension
  • Sensor/data acquisition
  • Webcam extension
Warranty

We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

RANGE:
Direct Connect: Up to 100m (330 ft) over CAT 5e/6/7
SPEEDS:
USB 2.0: Up to 480 Mbps
USB 1.1: Up to 12 Mbps
POWER:
Power Supply: 100-240V AC Input, 24V 1A DC Output
LEX (LOCAL EXTENDER):
USB Connector: 1 x USB Type B Receptacle
Link Connector: 1 x RJ45
Dimensions: 65.0mm x 87.5mm x 30.0mm (2.6" x 3.4" x 1.2")
Mounting: Slots for Cable Ties
Enclosure Material: Black ABS with Rubberized Coating
REX (REMOTE EXTENDER):
USB Connector: 1 x USB Type A Receptacle
Link Connector: 1 x RJ45
Available Current: Up to 1 Amp to USB port
Dimensions: 65.0mm x 87.5mm x 30.0mm (2.6" x 3.4" x 1.2")
Mounting: Slots for Cable Ties
Enclosure Material: Black ABS with Rubberized Coating
ENVIRONMENTAL:
Operating Temperature: 0°C to 50°C (32°F to 122°F)
Storage Temperature: -20°C to 70°C (-4°F to 158°F)
Operating Humidity: 20% to 80% relative humidity, non-condensing
Storage Humidity: 10% to 90% relative humidity, non-condensing
COMPLIANCE:
EMC FCC (Class A), CE (Class A)
Environmental: RoHS2 (CE)
Safety: Flammability V-0
