Icron Technologies 4-Port USB 2.0 Ranger 2304PoE Power over Ethernet LAN Extender System

Product Code: IC 00-00465

Key Features
  • Supports IEEE 802.3at, PoE+ (25.5W)
  • Extends USB through a PoE+ capable 100Mbps or 1000Mbps LAN
  • Optional power supply connection provided
  • Extends USB 2.0 and 1.1 (both low-speed and full-speed) devices
  • Operates with USB 3.0, 2.0 and 1.1 hosts
  • Supports all USB compliant peripherals (including isochronous devices, such as webcams or audio devices) up to 480Mbps
  • Uses a standard solid core CAT 5e/6/7 cable for easy installation or existing LAN infrastructure
  • Pre-paired networked configuration
  • Number of devices can be increased using additional USB hubs
  • FCC Class A
  • Rugged metal enclosure
  • ExtremeUSB suite of features:
    • Transparent USB extension
    • True plug and play; no software drivers required
    • Works with all major operating systems: Windows®, macOS™, Linux® and Chrome OS™
$1,088.08 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
Stock on order
  • Features
  • Overview
  • Technical Specs
  • Documents

Icron Technologies 4-Port USB 2.0 Ranger 2304PoE Power over Ethernet LAN Extender System

The USB 2.0 Ranger® 2304PoE allows users to extend USB 2.0/1.1 connections over a Power over Ethernet (PoE) GigE LAN or single CAT 5e/6/7 cable up to 100m. Extending over a PoE capable LAN reduces installation time and provides IT visibility.

This 4-port USB 2.0 LAN extender supports data rates at up to 480Mbps and is plug and play – no software drivers required – for all major operating systems: Windows®, macOS™, Linux® and Chrome OS™.

In addition to the standard 4-ports on the REX, the LEX comes with three USB A ports eliminating the need to connect an external USB hub to the host ideal and is perfect for: keyboards, mice, interactive white boards, flash drives, hard drives, audio devices, USB 2.0 web cameras and any other USB 2.0 or 1.1 device.



Applications:

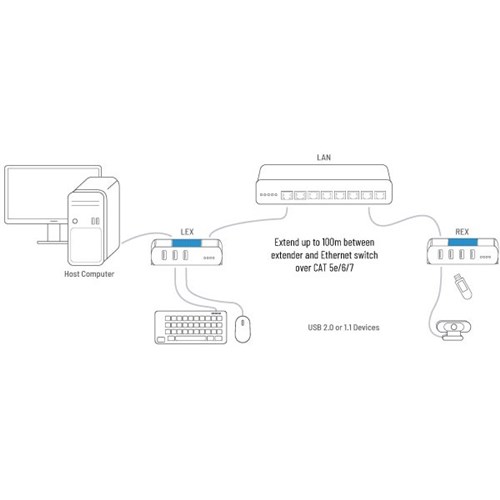

The Ranger 2304PoE system extends USB devices point-to-point with CAT 5e/6/7 cabling or can leverage existing network infrastructure, and is ideally suited for the following applications:

  • Industrial Control
  • Remote storage
  • KVM Extension
  • Digital Signage
  • Interactive Whiteboards
  • Medical Device Connectivity
  • Security and monitoring



In the Box:

The USB 2.0 Ranger 2304PoE system includes:

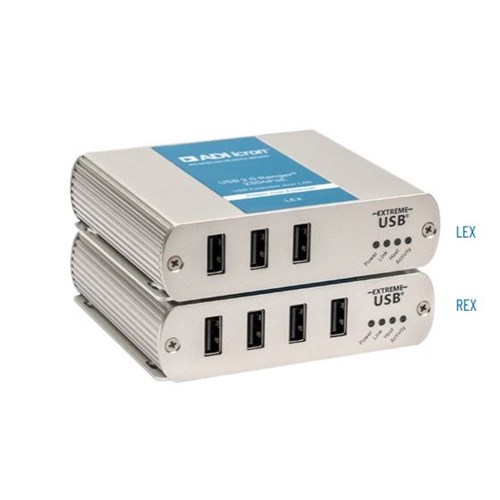

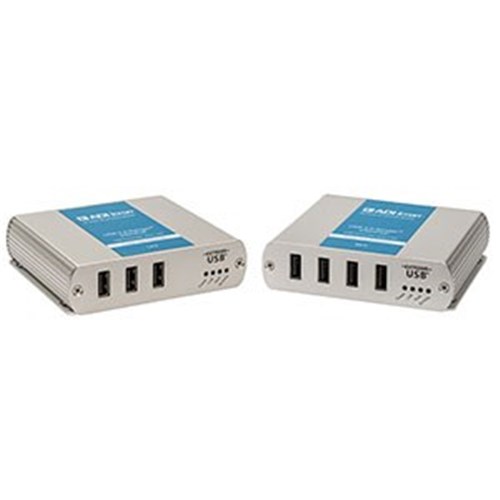

  • Local Extender (LEX)
  • Remote Extender (REX)
  • 2-meter USB cable
  • Quick Start Guide
  • Two year warranty



Videos:

Warranty

We offer a 2 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

  • Direct Connect Range: Up to 100m (330 ft) over solid core CAT 5e/6/7 or better
  • Network Connect Range: Up to 100m (330 ft) between switches over solid core CAT 5e/6/7
  • USB Device Support:
  • Traffic Types: All USB 2.0 and 1.1
  • Device Types: All USB 2.0 and 1.1 devices
  • LEX unit USB connector: 3 x USB type A Receptacles, 1 x USB Type B Receptacle
  • LEX unit Link connector: 1 x RJ45
  • REX unit Link connector: 1 x RJ45
  • REX unit USB connector: 4 x USB Type A Receptacles
  • Maximum USB devices supported: 30 USB devices or hubs
  • Power Supply:
    • 802.3at PoE+ (25.5W)
    • 100-240V AC Input, 24V 1A DC Output* (Optional, sold separately)
  • Available current: Up to 1.5A at each USB port concurrently, 3.5A total
  • LEX and REX unit dimensions: 100mm (W) x 86mm (D) x 26mm (H) / 3.94″ (W) x 3.39″ (D) x 1.02″ (H)
  • Operating temperature range: 0°C to 50°C (32°F to 122°F)
  • Total system shipping weight: 870 grams (1.9 lbs.)
  • Compliance: FCC (Class A), CE (Class A), RoHS2/3 (CE), ICES-003 Issue 7, EN 62368-1
  • Warranty: 2 years

*  If both PoE power and the external power adapter are present, the external power supply serves as the main source of power.
