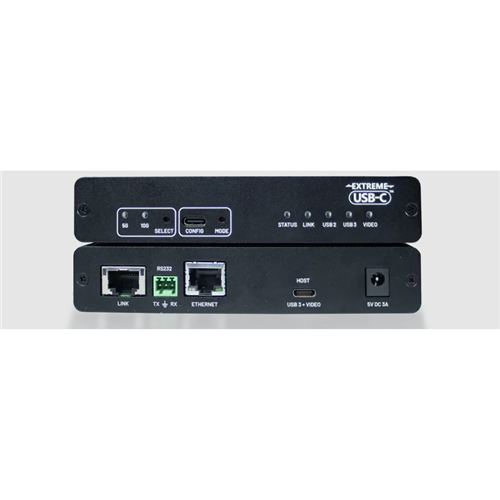

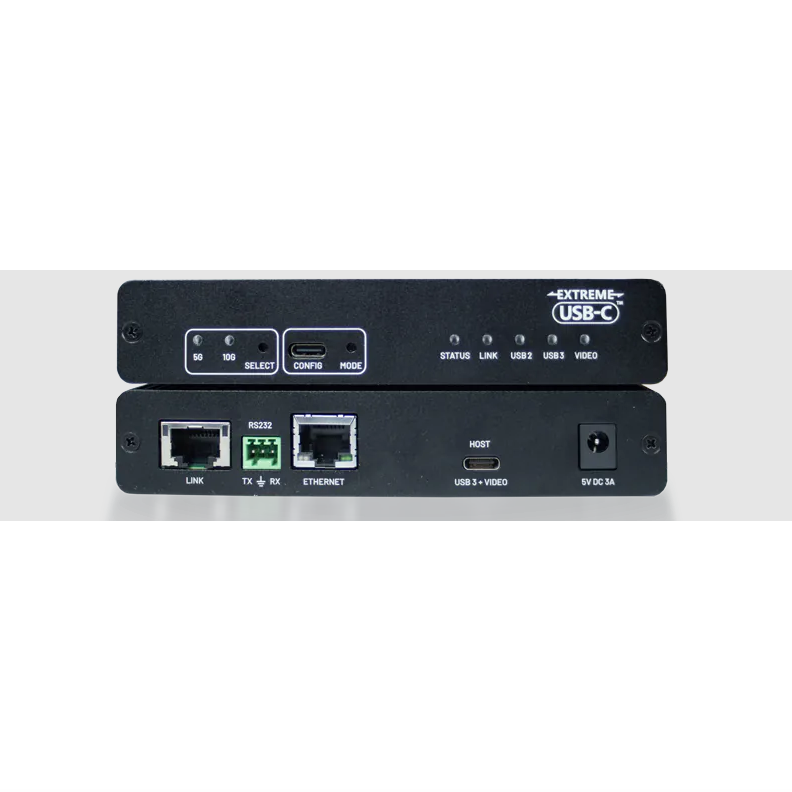

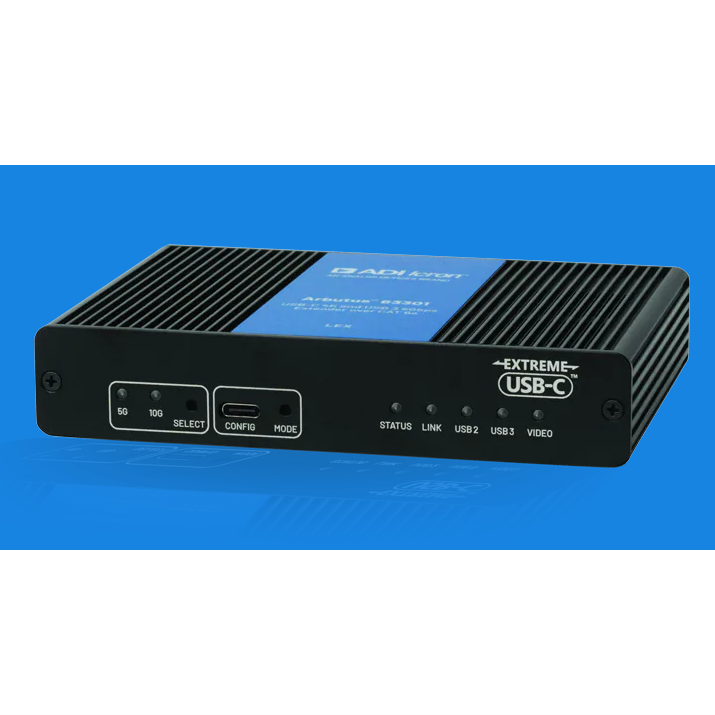

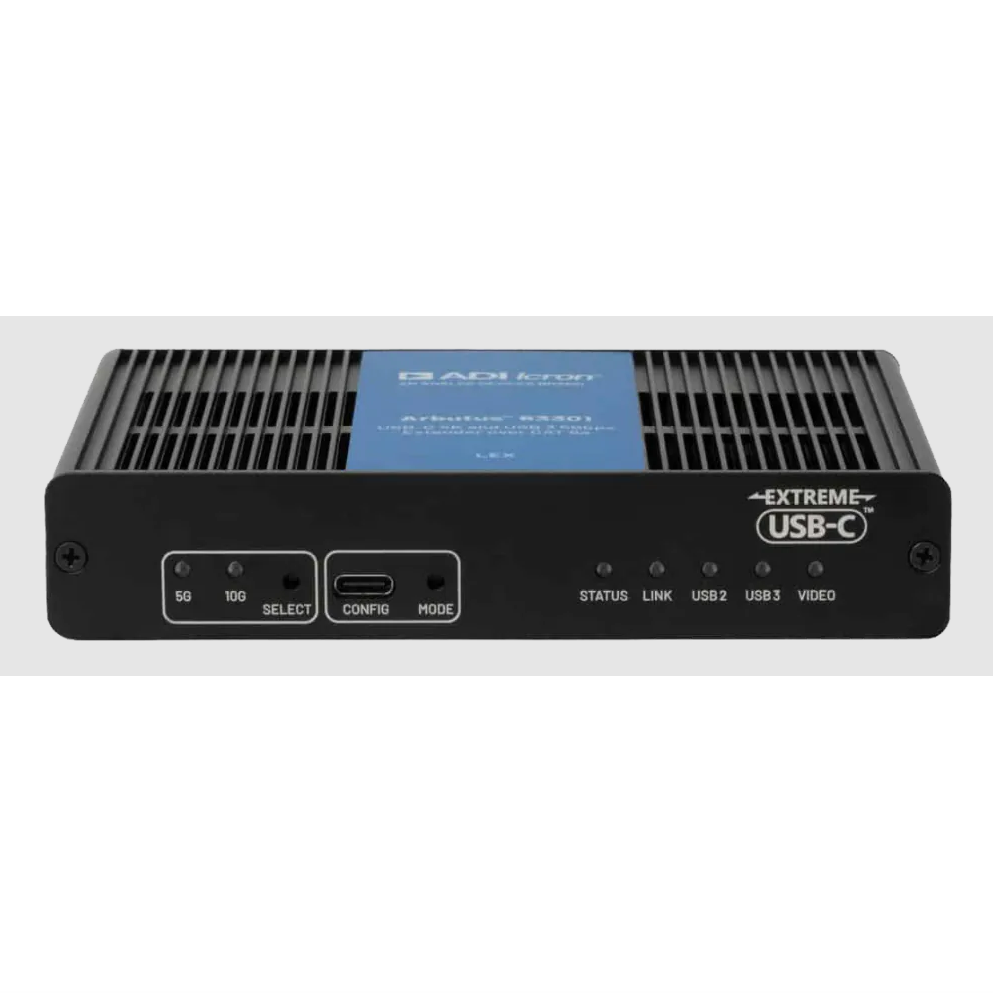

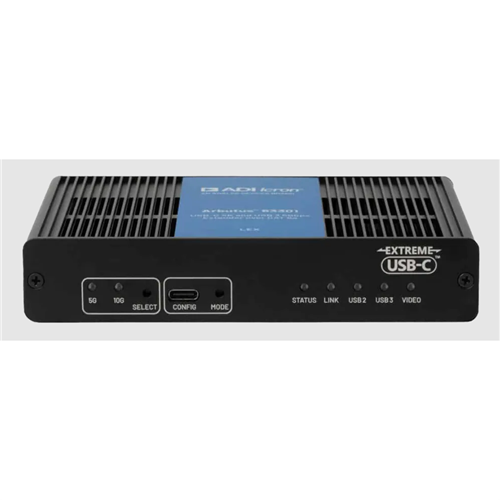

ICRON Arbutus 63301 1 Port USB-C Extender System with DP Alt - 100m

Product Code: IC 2MA-0002-AU

Key Features
  • Supports USB 3.2 Gen 1 and DisplayPort Alt Mode for seamless 4K video transmission over a single USB-C connection
  • Extends USB-C up to 100 meters over CAT 6a/7 cable
  • Designed for industrial environments with rugged housing and robust EMI shielding
  • Plug-and-play compatibility with no additional software or drivers required
  • Hubless Extender - Hubless architecture reduces points of failure and latency, ideal for mission-critical setups.
  • 3-2-1 Support - Fully compatible with USB 3.2, 2.0, and 1.1 for backward compatibility across devices.
$3,017.95 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
Estimated Lead time 4-6 weeks
  • Features
  • Overview
  • Technical Specs
  • Documents

ICRON Arbutus 63301 1 Port USB-C Extender System with DP Alt - 100m

The Icron Arbutus 63301 is the world's first USB-C extender supporting DP Alt-Mode, engineered for a true one cable extension.

Arbutus 63301 Common Applications

  • Remote Touchscreen Workstations Extend USB-C connections to interactive displays combining high-resolution video and touch input, ideal for kiosks, control panels, and factory floor interfaces.
  • Digital Signage with USB Interaction Deploy signage systems with touchscreen or peripheral interactivity (e.g., barcode scanners, card readers), using a single USB-C cable for video and data.
  • Medical Diagnostics Stations Enable mobile or wall-mounted touch displays with connected imaging devices and data peripherals in examination or diagnostic rooms.
  • Retail & Point-of-Sale Systems Extend high-speed connections to USB-C based POS terminals with built-in display, card reader, and customer interaction zones at remote checkout counters.
  • Remote Studio or Editing Bays Run USB-C to display-and-peripheral combos like USB capture devices, high-speed SSDs, and video monitors for post-production setups.

4K Video DP Alt-Mode and USB 3 at 5Gbps over CAT 6a/7up to 100m

Warranty

We offer a 3-year standard warranty on this product from its date of purchase, and a 5-year warranty for sales to government entities. For more information regarding our support, repair and warranty, please download our Warranty Guide.

Range Point-to-Point Up to 100m (328 ft) over CAT 6a
USB Device Support USB Bandwidth: Up to 5Gbps
Host Compatibility: All Devices Types and Classes (Control, Interrupt, Bulk, Isochronous)
Device Compatibility: OHCI, UHCI, EHCI, xHCI
Maximum Devices: Supports up to 30 devices
Video Support Maximum Resolution: 4196x2160
Color: RGB 8/10, YCbCr 4:4:4, 4:2:2
Lane Count/Rate: 4, 2 or 1 Lane operation up to HBR3 8.1Gbps
Control: DisplayPort MCCS
EDID: EDID override supported
HDCP: Version 2.2

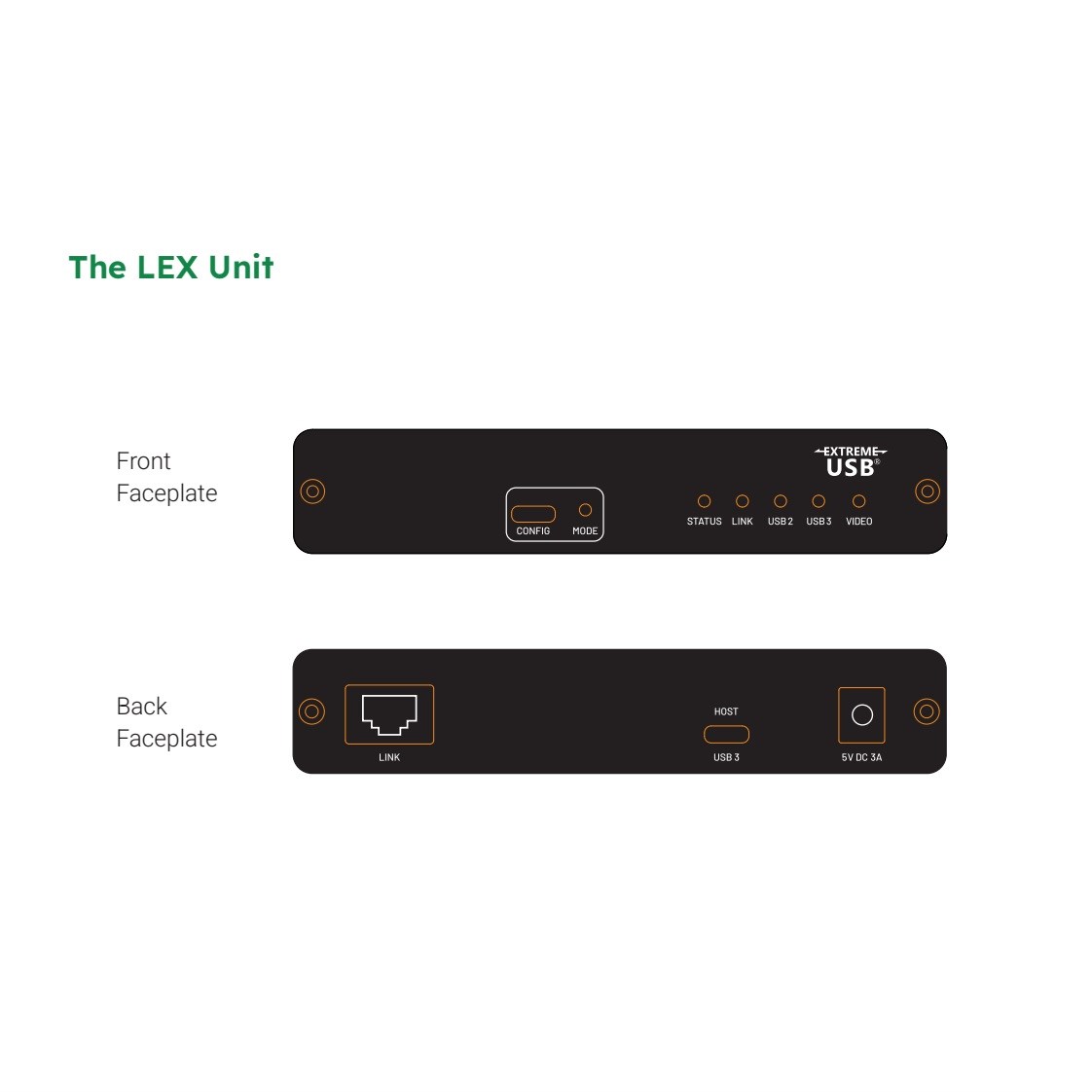

Local Extender (LEX) USB Connector: 1x USB-C Port
Link Connector: 1x RJ45 Ethernet Link Port
Power Input: 5V DC 3A Barrel Jack
Dimensions: 137mm x100.0mm x 26mm (5.4 x3.9 x 1.0 )
Weight: 300 g (0.7lbs.)
Enclosure Material: Black Anodized Aluminium

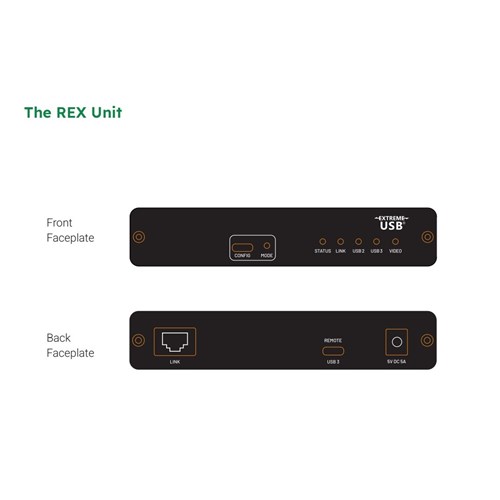

Remote Extender (REX) USB Connector: 1x USB-C Port
Link Connector: 1x RJ45 Ethernet Link Port
Power Input: 5V DC 5A Barrel Jack
Dimensions: 137mm x100.0mm x 26mm (5.4 x3.9 x 1.0 )
Weight: 300 g (0.7lbs.)
Enclosure Material: Black Anodized Aluminium
Hub Tiers Hub Tiers Used: 0
Environmental Operating Temperature: 0 C to 40 C (32 F to 104 F)
Storage Temperature: -20 C to 70 C (-4 F to 158 F)
Relative Humidity: 20-80% Operating
10-90% Storage, non-condensing
Compliance Certifications: FCC, CE, RoHS2/3 (CE), ICES-003 Issue 7, EN 62368-1, NRTL, RCM, and UKCA
