AMX HPX-CPTS100-W - Spacer Cable Pass-Thru Well Module

Product Code: AMX FG562-42

Key Features
The HPX-CPTS100-W when used in conjunction with the HPX-CPT200-W increases the number of cables that can be passed through from 2 to 4
Enquire Now
Qty Each (inc GST) Each
In Stock
  • Features
  • Overview
  • Technical Specs
  • Documents

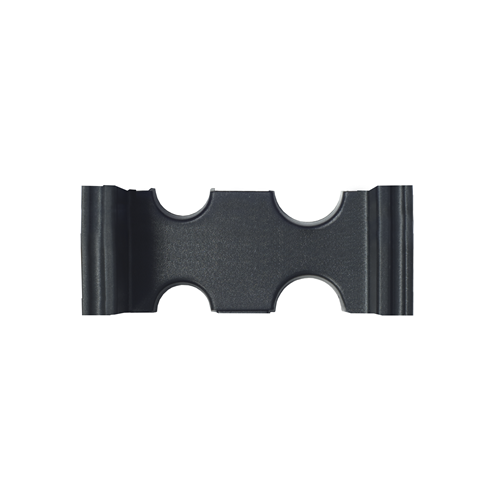

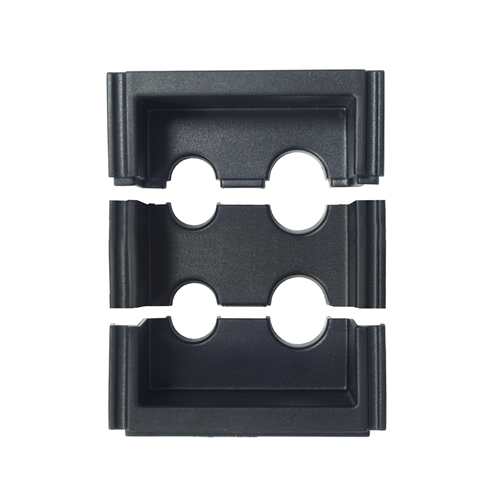

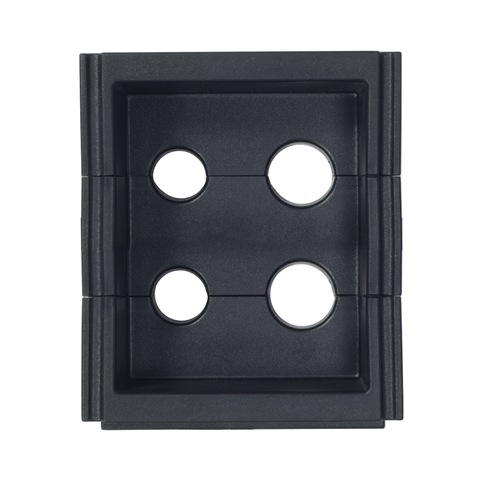

The HPX-CPTS100-W provides a simple and convenient way to add additional spaces to the HPX-CPT200-W HydraPort® Cable Pass-Through Well Module, thereby increasing the number of cables that can be passed through a single HydraPort. Adding one HPX-CPTS100-W spacer adds two circular openings to the existing two openings to accommodate a total of 4 cables. Adding a second spacer adds another two circular openings, providing a maximum of 6 openings per HydraPort. Each HPT-CPTS100-W Pass-Through Module Spacer utilizes 1 HydraPort Unit.

CUSTOMER BENEFITS

  • Keep Extra Cables Hidden  Accommodate more pass-through cables in a single HydraPort unit

Learn important installation, configuration and programming techniques in the following course(s) from Harman Professional University:

  • Getting Started with HydraPort

 For schedules and registration for these and any Harman Professional University courses, visit College of AMX.

Warranty

We offer a 3 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Trade Terms
This item is a firm order product, meaning it cannot be cancelled or returned once the purchase order is processed, except in cases of defect. Please verify that part numbers and descriptions are accurate before placing your order. For any confirmation or additional information, please contact AV Sales at 1800 00 77 80.
Dimensions

1 HydraPort Unit (See the HPX-600, HPX-900 or HPX-1200 specifications section for an explanation of HydraPort units)

Front Panel Components
  • Small pass-thru hole(s) - 11.5mm diameter
  • Large pass-thru hole(s) - 14mm diameter
FG Numbers FG562-42
