AMX HPX-AV102A-DP-R - DisplayPort 4K60 Module with Retractable MyTurn Ready Cable

Product Code: AMX FG552-38

Key Features
The HPX-AV102A-DP-R 4K60 DisplayPort Module with Retractable MyTurn ready Cable provides a compact solution with 4 feet available pullout from HydraPort HPX-600, 900 and 1200 Connection Ports or Touch Connection Ports. This model replaces FG552-33 (HPX-AV102-DP-R). The new model provides a longer pigtail to simplify under table installation.
$743.52 inc GST
(Each)
Increase value Decrease value
Qty Each (inc GST) Each
In Stock
  • Features
  • Overview
  • Technical Specs
  • Documents

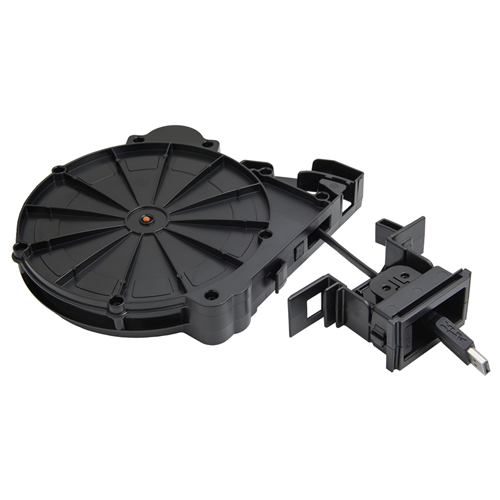

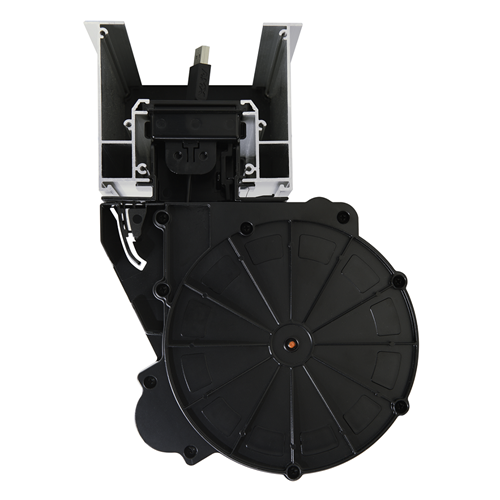

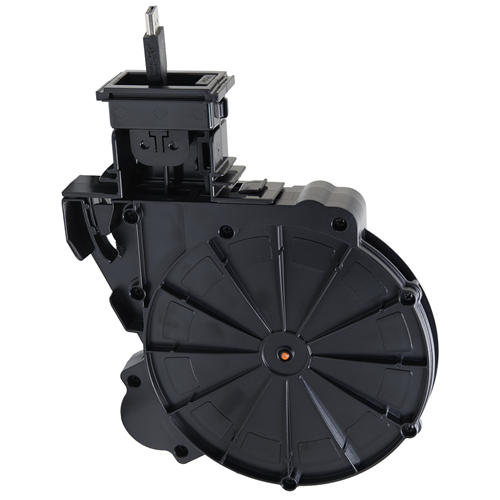

The HydraPort® DisplayPort Module with Retractable Cable delivers a compact solution that connects a DisplayPort output from a DisplayPort-enabled device such as a visiting laptop and passes HDMI to an HDMI input within the room integration, such as an Enova DVX, Solecis SDX or DXLink Transmitter. The easy to install solution organizes and hides cables in virtually any type of conference table, including narrow tables, and those with glass inlay. With the addition of a clip-on MyTurn Source Selection Button, it is easy to instruct the system to switch to the selected input.

Learn important installation, configuration and programming techniques in the following course(s) from Harman Professional University:

  • Getting Started with HydraPort

 For schedules and registration for these and any Harman Professional University courses, visit College of AMX.

Features

  • No Assembly, Adjustments or Terminations – Module installs quickly and easily with no special mounting
  • Flat, High-Speed cable – With support for resolutions up to 4K @60Hz, the cable ensures absolute best picture quality in a compact design
Warranty

We offer a 3 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Dimensions

1 1/2 HydraPort Units (See the HPX-600, HPX-900 or HPX-1200 specifications section for an explanation of HydraPort units)

Weight Approximately 1lb (0.46 Kg)
Integrated Cable

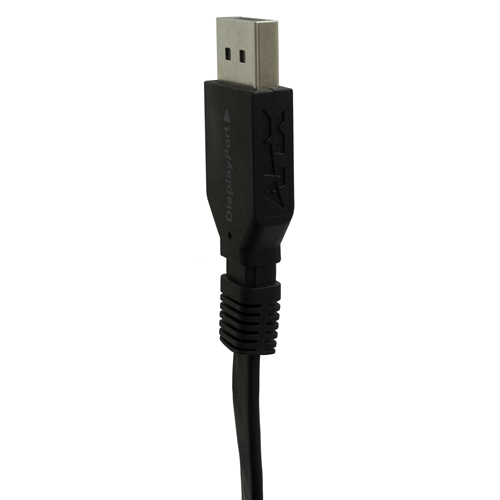

  • DisplayPort Retractable Cable at 18.0 Gbps with DisplayPort pigtail connector or convert to HDMI pigtail connector by utilizing the included DisplayPort to HDMI adapter accessory
  • Pullout Length: 5 ft (1.52m)
  • Pigtail: 5 ft (1.52m)
  • Pigtail Connector: HDMI Male
  • Resolution Support: 4096x2160 @60 Hz
  • Deep Color Support: Yes
  • 3D Format Support: Yes

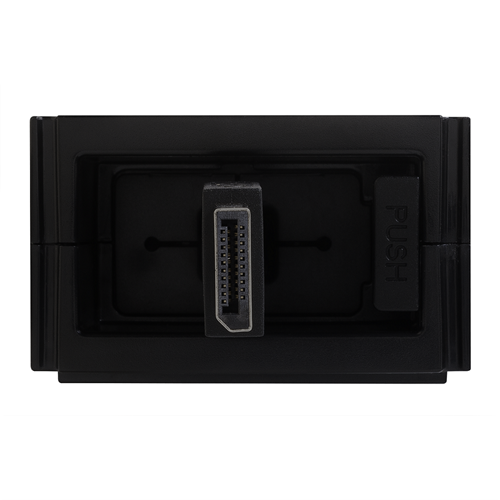

Front Panel Components Pull-Out Connector: DisplayPort Male
Long-Term Reliability Tested to 10,000 pull and release cycles
Recommended Accessories
  • HPA-MYT-TX, MyTurn Source Selector Button (FG554-21)
  • HPA-MYT-RX, MyTurn Source Selector Receiver (FG554-23)
  • CBL-DP-FL2, DisplayPort 4K60 MyTurn-Ready Flat Cable (FG10-2193-16)
  • CBL-HDMI-FL2-16, HDMI 4K60 MyTurn-Ready Flat Cable, 16 ft (FG10-2192-16)
  • CBL-HDMI-FL2-32, HDMI 4K60 MyTurn-Ready Flat Cable, 32 ft (FG10-2192-32)
FG Numbers FG552-38
