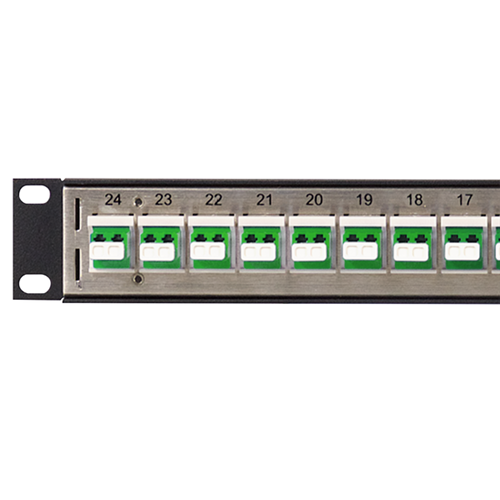

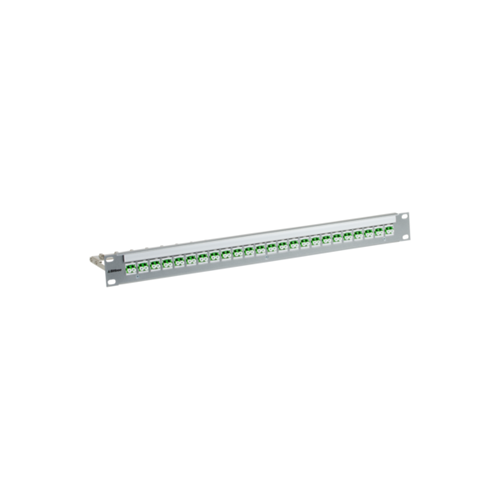

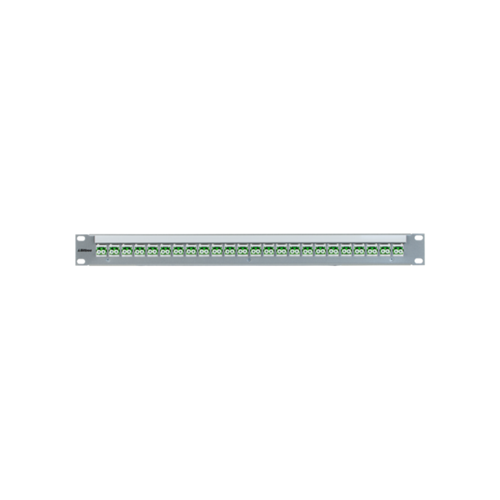

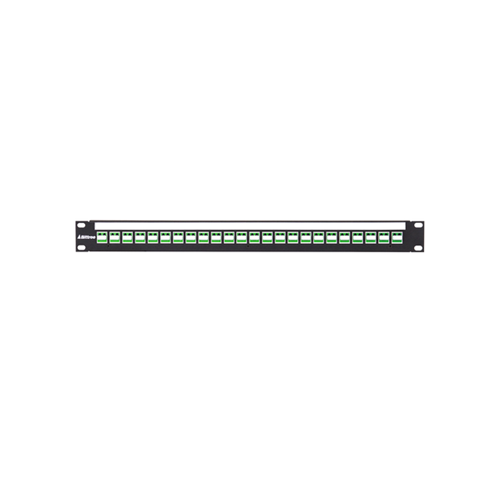

Bittree® Fiber-Mount Modular Keystone Panel in 1 RU with 1x24 Jack Configuration
• Panels come pre-populated with jack modules for simplified termination/integration
Coupler/Adaptor Properties:
• Duplex LC to LC
• Zirconia (ceramic) alignment sleeve for compatibility with angle polished cables
• Green color for easy circuit identification
• Supports both multi-mode and single-mode applications
• Small form factor style and adaptor body enables higher density patching
• ANSI/TIA-568-C and UL 1863 compliant
Panel Features:
• Keystone jacks mount flush with the surface of the panel
• Accommodates high-density (HD) keystone inserts with up to a 17 mm width
• Folded steel front panel with a durable black powder-coat finish
• Nickel-plated rear panel and two 45-degree faston lugs enable bussed and bonded grounding schemes when used with shielded modular jacks
• Silk screened circuit numbering on the rear
• 1 x DS430-10 designation strip on the front (bar and cap design)
• 6" (15.24 cm) deep removable rear lacing bar for cable dressing
Feed-Through. 24 Couplers Per Row.
Prices of Fiber Feed-Through Panels affected by the panel style and the number of rows of couplers
Flush-mount style includes lacing bar for enhanced cable organization.
Accommodates all standard keystone couplers; LC to LC, SC to SC and ST to ST
Available in heights of 1 and 2 RU.
Optional designation strip(s) available on all models
Additional configurations available; please contact us for more information.
