Bittree Flush-Mount Gigabit Ethernet Panel - 2x24 Ports 2 RU Cat6 RJ45 to ID 110 Fixed 2 Designation Strips

Product Code: DSGIGE224D

Key Features

FLUSH MOUNT 2 ROWS OF 24 PORTS 2 RU CAT 6 RJ45 TO ID 110 FIXED 2 DESIGNATION STRIPS

Enquire Now
Qty Each (inc GST) Each
Estimated Lead time 2-3 weeks
  • Features
  • Overview
  • Technical Specs
  • Documents

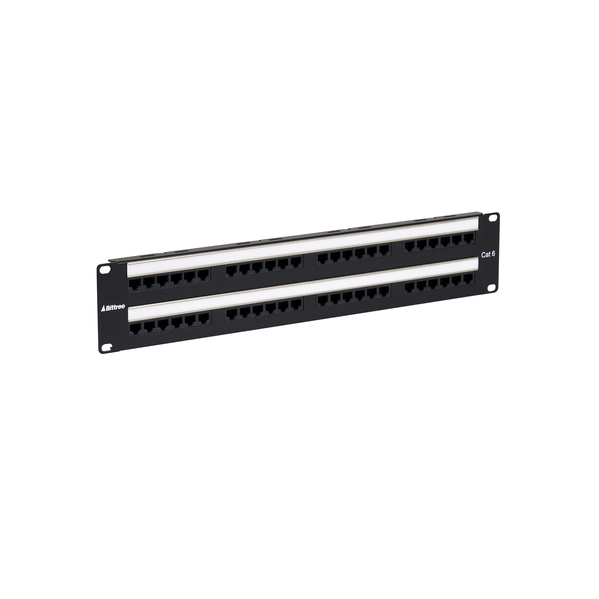

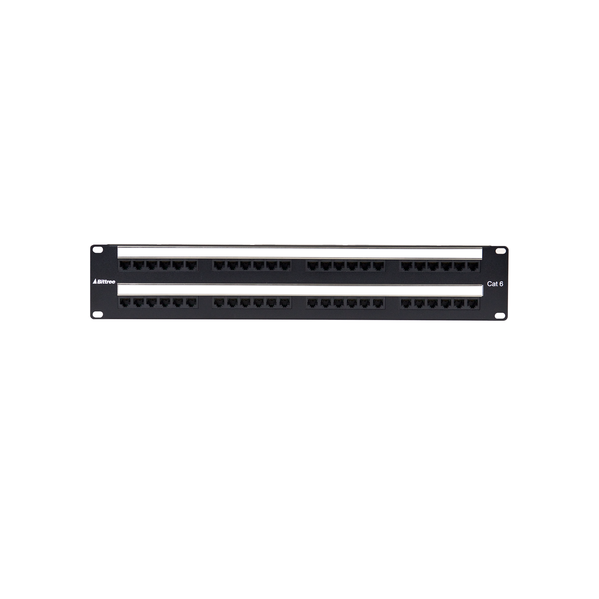

Bittree® Flush-Mount Gigabit Ethernet Panel in 2 RU with 2x24 Jack Configuration



Includes termination caps, basic 110 punch tool, four #10-32 rack-mount screws, and tie wraps

CAT 6 Jack Properties:

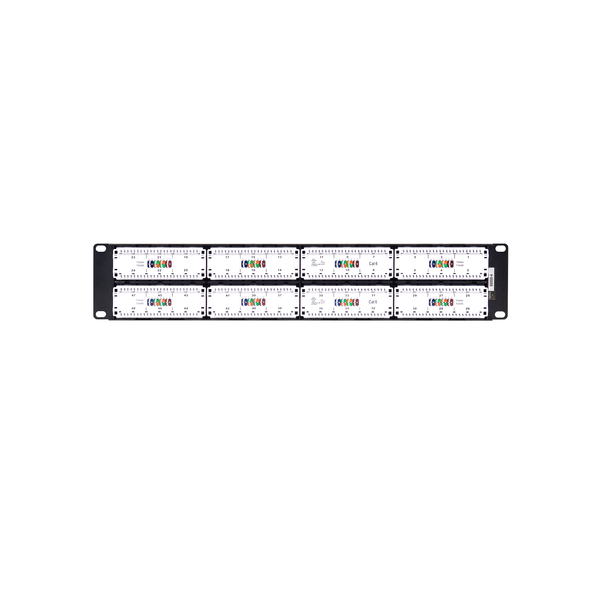

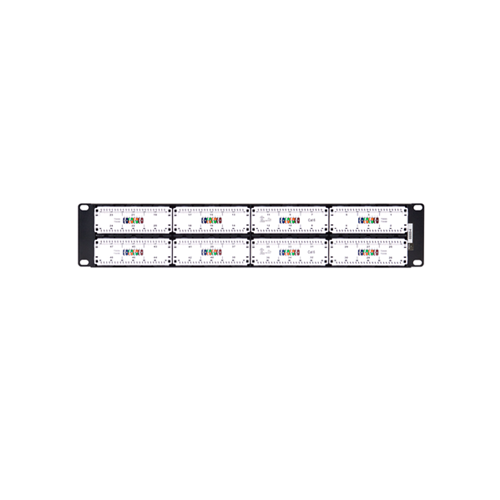

• RJ45 jack to 110 IDC (punchdown) interface, unshielded
• Exceeds ANSI/TIA-568-C.2 Category 6 connecting hardware requirements
• High-impact PBT resin housing and PC termination cap, UL 94 V-2
• Nickel-plated phosphor bronze contacts with gold over plate

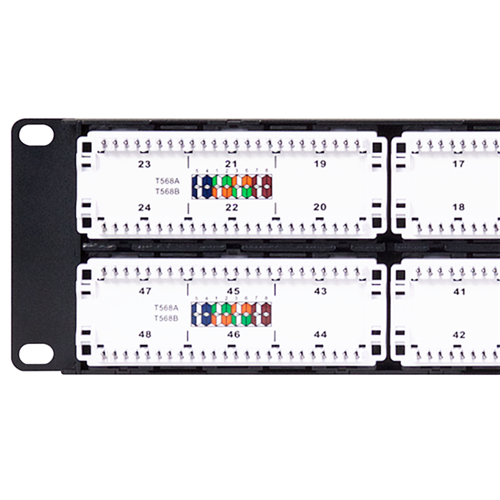

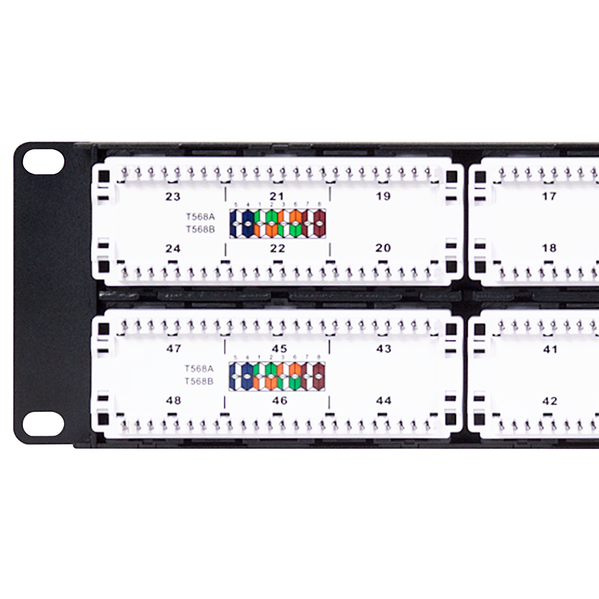

• Integrated TIA-568A/B color wiring diagram
• Accommodates 22-24 AWG solid wire

Panel Features:

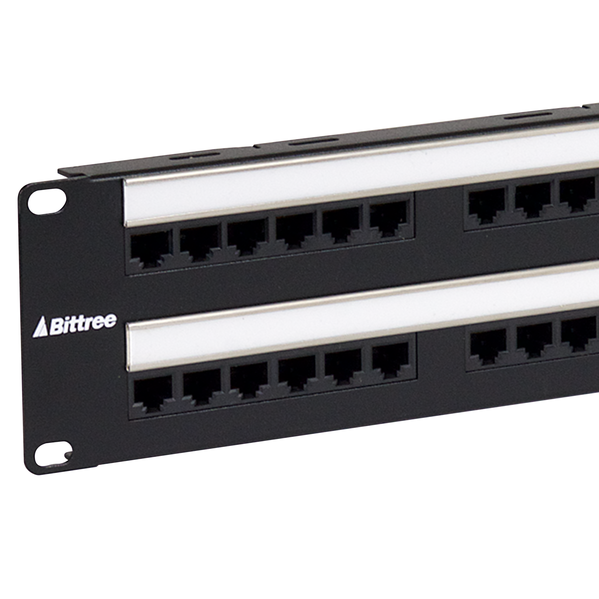

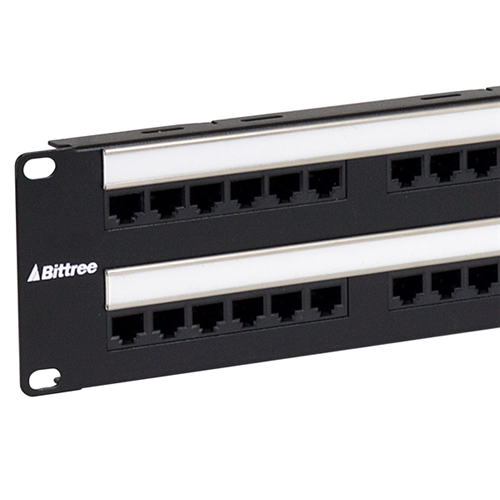

• Jack modules are mounted flush with the surface of the panel
• Folded steel front panel with a durable black powder-coat finish

Punchdown 110 Patch Panels. 24 Ports Per Row. Prices of Gigabit Ethernet Panels affected by the number of rows of ports Available in heights of 1 and 2 RU. Optional designation strip(s) available on all models Additional configurations available; please contact us for more information.

Warranty

We offer a 5 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Trade Terms
The above item is non-returnable, unless defective. Please ensure part numbers and descriptions are as required before placing this order. If any confirmation or information is required please contact AV Sales on 1800 00 77 80.
