***Pre-Order Now. Available late August 2026***

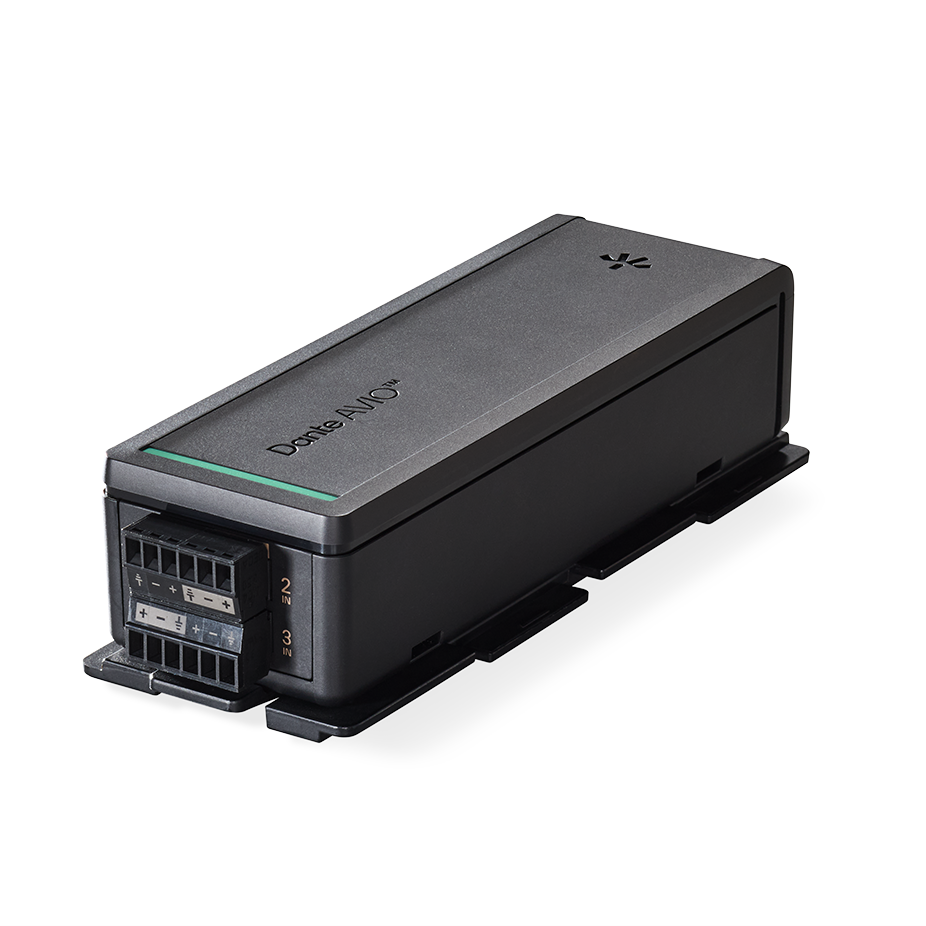

Dante AVIO Install adapters provide a compact, cost-effective way to bring analog audio onto Dante networks, extending the life of existing equipment while supporting scalable system growth. Available in 2-Ch and 4-Ch input and output models, including a 2-Ch In/2-Ch Out option for bidirectional connectivity, they simplify deployment with PoE-powered operation and deliver exceptional bit-perfect, ultra-low latency audio performance.
Dante AVIO Install adapters are part of the trusted Dante family of networked AV solutions, leveraging the familiar Dante control and management platform. Configuration and audio routing to and from AVIOs is managed through Dante Controller, while advanced features such as remote monitoring, user access control, cross-subnet routing, and API integration can be enabled with Dante Director or Dante Domain Manager.

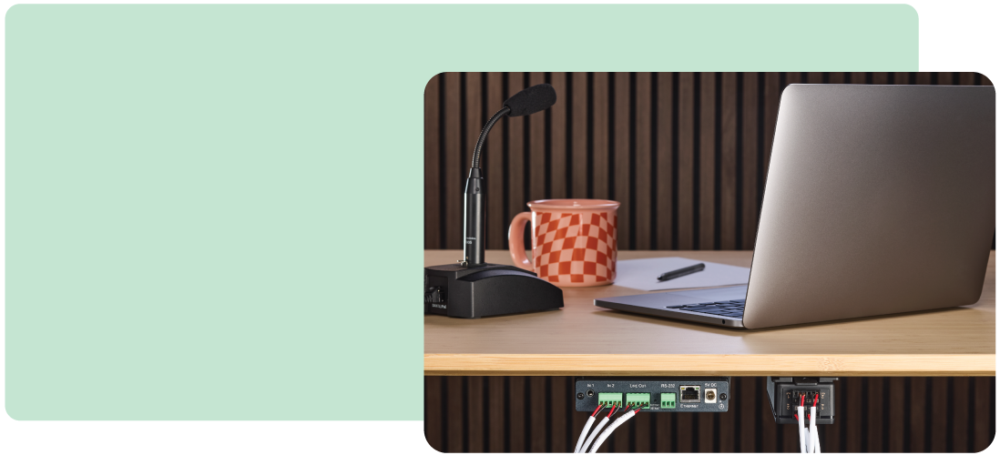

Tailored for the Pro AV installation market, the Dante AVIO Install line of adapters includes Euroblock terminals for streamlined integration with installed analog audio equipment. Each adapter ships with a mounting bracket and incorporates the Dante AVIO ClickGrid mounting system, allowing multiple units to snap together into organized assemblies for installation under conference tables, on shelves, attached to rack rails, or secured to posts using cable ties or hook-and-loop fasteners.

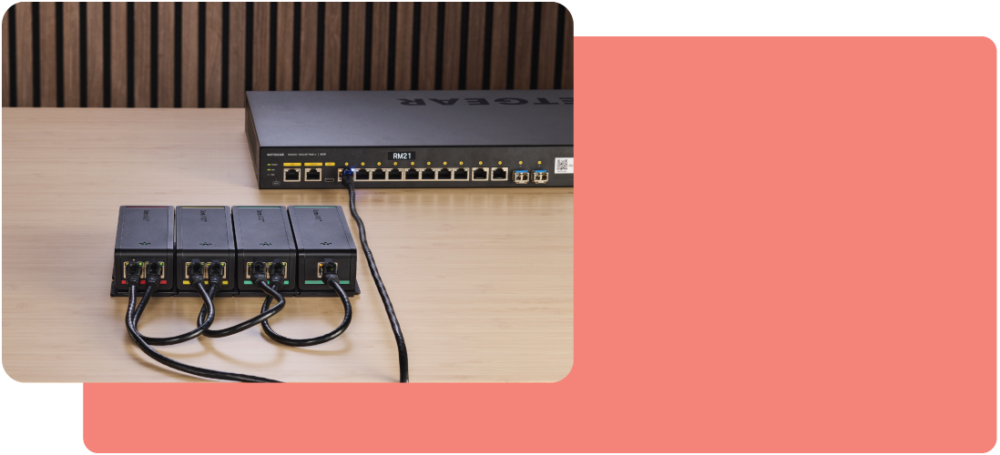

The 4-Ch Input, 4-Ch Output, and 2-Ch In / 2-Ch Out models support daisy chaining through dual switched Ethernet ports. The first unit receives network and PoE power from the switch and passes both along to downstream units, allowing up to four adapters to share a single network drop. By reducing switch port usage and simplifying cabling, they help manage overall infrastructure costs.
2-Ch Input and Output models include a single Ethernet port. They can be used at the end of a daisy chain but cannot extend it further.
Specifying a NEW Dante system? Add line mixers, amplifiers, DSPs and other analog endpoints to a broader Dante system design without adding complexity.
Retrofitting an EXISTING installation? Bring existing analog equipment onto Dante without replacing it — protecting the client’s investment while integrating seamlessly with newer Dante-enabled devices.
While small, these adapters are fully featured Dante devices delivering uncompressed audio at up to 96kHz/24-bit with ultra-low latency. Part of the Dante ecosystem, they connect with thousands of Dante-enabled devices and are configured and routed in Dante Controller as part of your standard setup. For larger installations, they can be enrolled in Dante Director or Dante Domain Manager adding remote monitoring, logging, user access control, and more.
We offer a 1 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.
For a list of full specifications, please refer to the attached Data Sheet.
