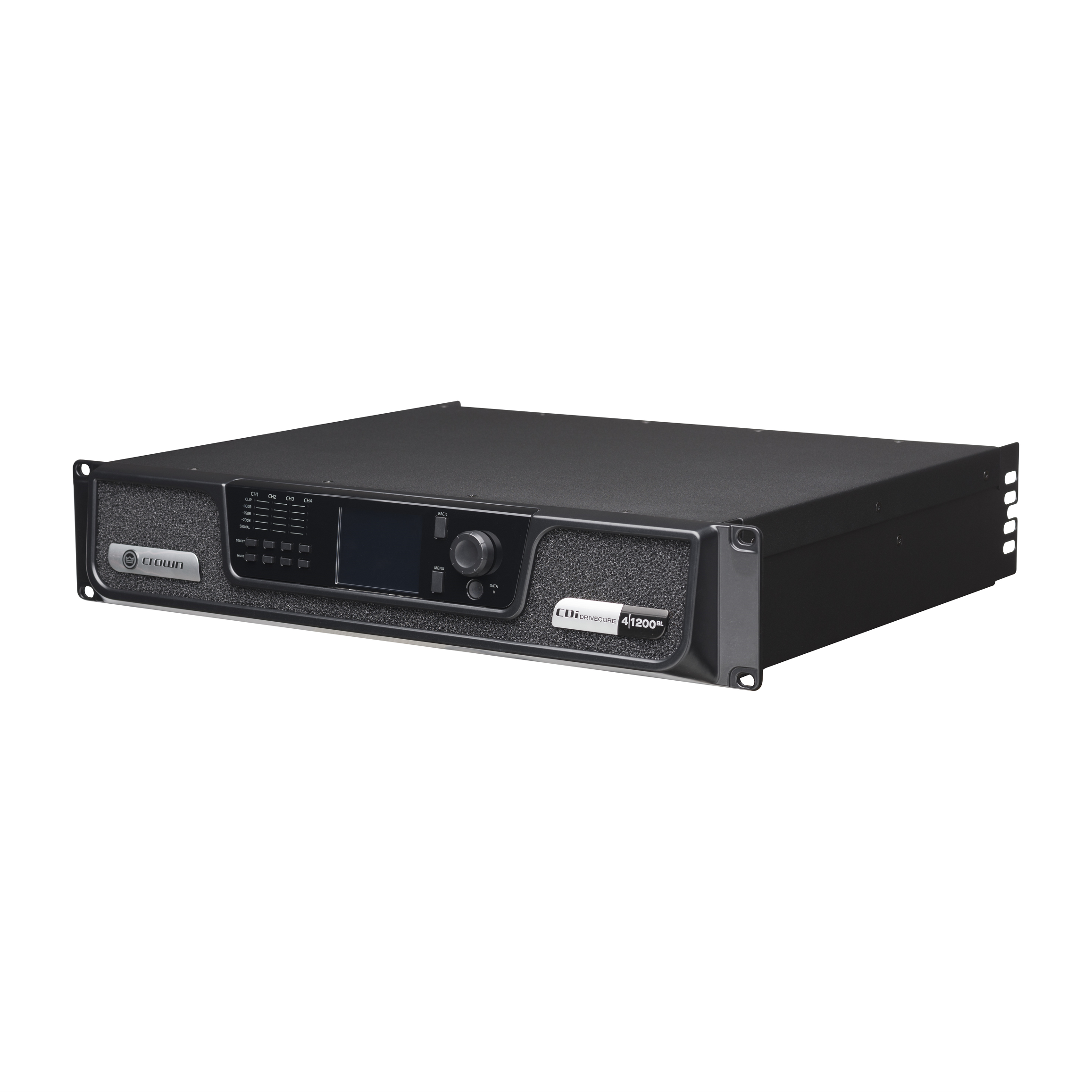

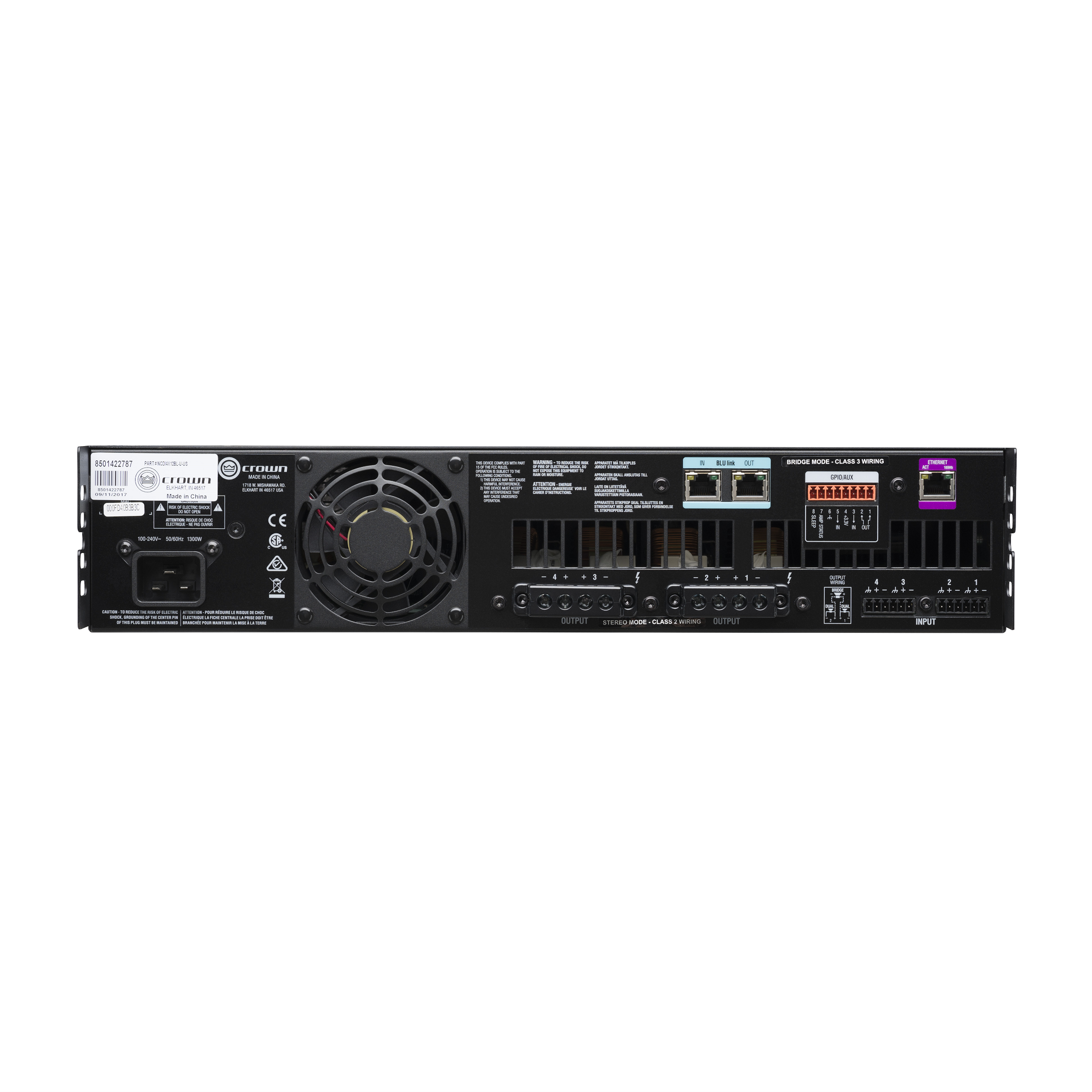

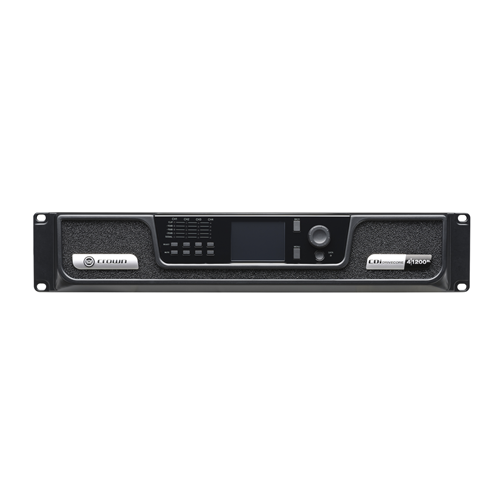

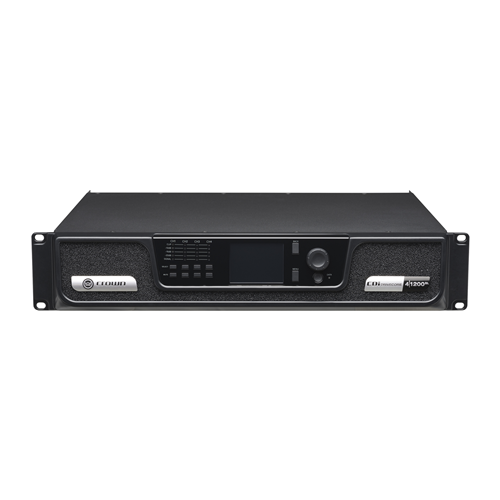

Crown CDI4|1200BL - 4-Channel, 1200W per output Channel Amplifier BLU link input

Product Code: CWN CDI4X12BL

Key Features
Analog BLU link input, 4 channel, 1200W per output channel
$8,362.48 inc GST
(Each)
Increase value Decrease value
Qty Each
Estimated Lead time Contact Us
  • Features
  • Overview
  • Technical Specs
  • Documents

The CDi DriveCore Series is an evolution in amplification, providing an impressive mix of high-performance; rich feature set, and competitive cost.  Using technology derived from our flagship Installed Sound amplifier (Crown DriveCore Install series), the CDi DriveCore 4|1200BL offers streamlined functionality to work in almost any large sized installation such as cinema, houses of worship, hotels, cruise lines, and more.  Designed for ease-of-use in a variety of applications, the 4|1200BL is a 4-channel amp that includes network control/monitoring, high-level DSP, front-panel interface, and support for driving up to 100Vrms speaker loads without requiring a transformer.  The 4|1200BL also comes with BLU link, adding the ability to send and receive channels over HARMAN’s digital audio BUS. The entire CDi DriveCore line comes pre-loaded with JBL speaker tunings to help make installations quicker and easier.

Feature Comparison

CDi DriveCore Model Channels Network Control DSP Control Port BLU link
4|1200BL 4

Output Power: Dual Mode - All Channels Driven

CDi DriveCore Model Channels 2O 4O 8O 16O 70Vrms 100Vrms

Minimum Guaranteed Power (1kHz, all channels driven, max distortion 0.5%, duration 0.5 seconds, 120 - 240Vrms - 50/60Hz)

Output Power: Bridge Mono Mode - All Channels Driven

CDi DriveCore Model 4O 8O 16O 140Vrms 200Vrms
4|1200 / 4|1200BL 1200W 2400W 2400W 2400W 2400W

Minimum Guaranteed Power (1kHz, all channels driven, max distortion 0.5%, duration 0.5 seconds, 120 - 240Vrms - 50/60Hz)

Warranty
We offer a 3 year warranty on this product from its date of purchase. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.
BLU link Yes
Channels 4
Sensitivity (for full rated power at 8 ohms) 0.7V RMS
Rated Power Output (per channel @ 4 ohms) 1200W
Analog Input Signal to Noise Ratio (ref. rated power, 100V, 20Hz - 20kHz) at 8 ohms) > 104dB
THD (full rated power, 20 Hz - 20 kHz) 0.35%
Damping Factor (20 Hz to 100 Hz) > 1000
Frequency Response (8O, 20 Hz - 20 kHz) /-0.25dB
Crosstalk (below rated power) 20 Hz to 1 kHz > 80dB
Input Impedance (nominally balanced, nominally unbalanced) 20 kO balanced, 10 kO unblanced
Dimensions (inches) (W x H x D) (depth not including 1.3 inch front panel protrusion) 19 x 3.5 x 14.71
Weight 20.1 lbs (9.12 kg)
Power Supply Connector "20A IEC connector, 100 – 240V"
