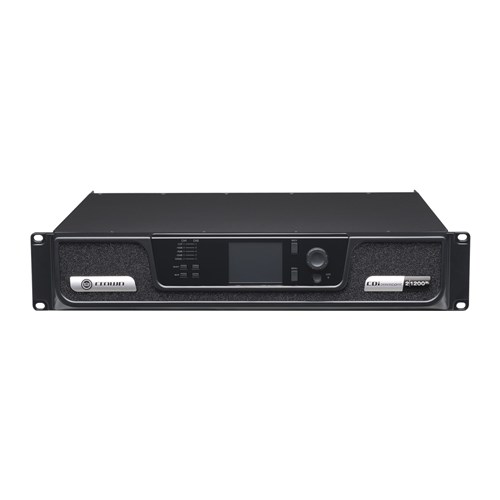

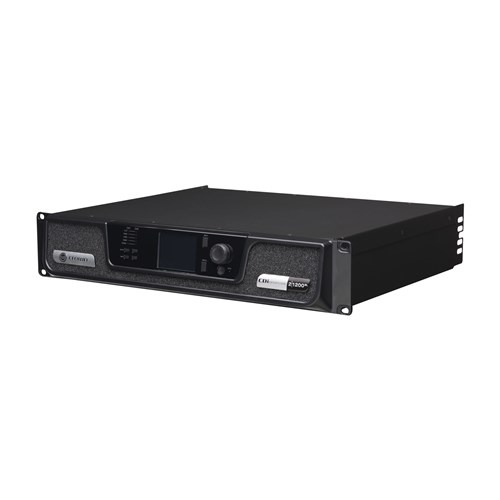

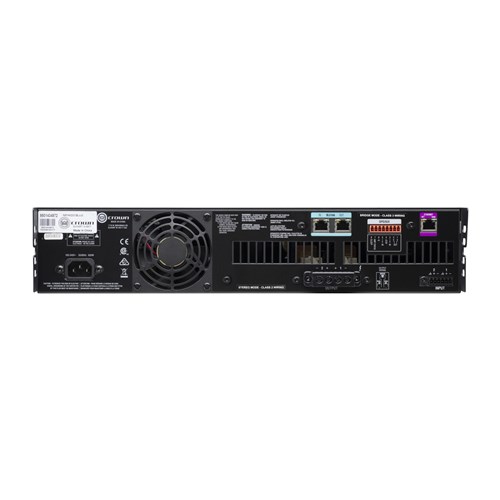

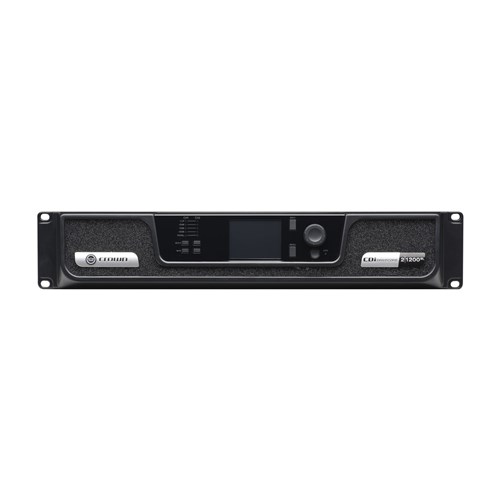

Crown CDI21200BL - 2-Channel 1200W per output Channel Amplifier plus BLU link input

Product Code: CWN CDI2X12BL

Key Features
1200 watts per channel 2 channel amplifier, 70/100V, 4/8 ohm, digital signal processing, networked, front panel interface with BLU link
$4,745.35 inc GST
(EA)
Increase value Decrease value
Qty Each (inc GST) Each
Estimated Lead time 6-8 weeks
  • Features
  • Overview
  • Technical Specs
  • Documents

The CDi DriveCore Series is an evolution in amplification, providing an impressive mix of high-performance; rich feature set, and competitive cost.  Using technology derived from our flagship Installed Sound amplifier (Crown DriveCore Install series), the CDi DriveCore 2|1200BL offers streamlined functionality to work in almost any large sized installation such as cinema, houses of worship, hotels, cruise lines, and more.  Designed for ease-of-use in a variety of applications, the 2|1200BL is a 2-channel amp that includes network control/monitoring, high-level DSP, front-panel interface, and support for driving up to 100Vrms speaker loads without requiring a transformer.  The 2|1200BL also comes with BLU link, adding the ability to send and receive channels over HARMAN s digital audio BUS. The entire CDi DriveCore line comes pre-loaded with JBL speaker tunings to help make installations quicker and easier.

Feature Comparison

CDi DriveCore Model Channels Network Control DSP Control Port BLU link
2|1200BL 2

Output Power: Dual Mode - All Channels Driven

CDi DriveCore Model Channels 2 4 8 16 70Vrms 100Vrms
2|1200 / 2|1200BL 2 850W 1200W 1200W 600W 1200W 1200W

Minimum Guaranteed Power (1kHz, all channels driven, max distortion 0.5%, duration 0.5 seconds, 120 - 240Vrms - 50/60Hz)

Output Power: Bridge Mono Mode - All Channels Driven

CDi DriveCore Model 4 8 16 140Vrms 200Vrms
2|1200 / 2|1200BL 1200W 2400W 2400W 2400W 2400W

Minimum Guaranteed Power (1kHz, all channels driven, max distortion 0.5%, duration 0.5 seconds, 120 - 240Vrms - 50/60Hz)

Warranty

We offer a 3 year warranty on this product from its date of purchase. For more information regarding our support, repair and warranty, please download our Warranty Guide here.

Trade Terms
This item is a firm order product, meaning it cannot be cancelled or returned once the purchase order is processed, except in cases of defect. Please verify that part numbers and descriptions are accurate before placing your order. For any confirmation or additional information, please contact AV Sales at 1800 00 77 80.
BLU link Yes
Channels 2
Sensitivity (for full rated power at 8 ohms) 0.7V RMS
Rated Power Output (per channel @ 4 ohms) 1200W
Analog Input Signal to Noise Ratio (ref. rated power, 100V, 20Hz - 20kHz) at 8 ohms) > 104dB
THD (full rated power, 20 Hz - 20 kHz) 0.35%
Damping Factor (20 Hz to 100 Hz) > 1000
Frequency Response (8 , 20 Hz - 20 kHz) +/-0.25dB
Crosstalk (below rated power) 20 Hz to 1 kHz > 80dB
Input Impedance (nominally balanced, nominally unbalanced) 20 k balanced, 10 k unblanced
Dimensions (inches) (W x H x D) (depth not including 1.3 inch front panel protrusion) 19 x 3.5 x 14.71
Weight 17.2 lbs (7.8 kg)
Power Supply Connector "15A IEC connector, 100 240V "
